User Manual for Zacuto C300 500 Z-Finder 1.8x with Mounting Kit Click to enlarge the picture
Contents of the user manual for the Zacuto C300 500 Z-Finder 1.8x with
- Product category: LCD Hoods & Loupes Zacuto
- Brand: Zacuto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zacuto LCD Hoods & Loupes
 |
User manual for the Zacuto C300 500 Z-Finder 1.8x with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zacuto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zacuto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zacuto product will considerably shorten its lifespan!
|
Product description - Zacuto Viewfinders Demo
- Zacuto Z-Finder and Mounts for the Canon C300 and C500
The Zacuto C300/500 Z-Finder 1.8x with Mounting Kit is an optical viewfinder designed specifically for use with the LCD screen on the Canon C300 or C500 cinema camera. The Z-Finder uses 1.8x magnification to turn the camera's 4" LCD monitor into a clear, easy-to-focus viewfinder that lets you see your image in magnified detail. The light-proof eyecup also provides added stability to your handheld footage by adding an additional point of contact between the camera and your eye.
The Canon C300/500 Z-Finder features an optical correction system that uses a set of four diopters (0, +1, +2, and +3) to correct to your eyesight. Additional -1 and +4 diopters can be purchased separately. All the diopters are coated with Zacuto's anti-fog formula to prevent fog from forming on your viewfinder. The 0 diopter gives you fog protection without adding optical correction.
The Z-Finder uses a foam-padded sleeve that slides over the LCD screen of the Canon C300 or C500. The sleeve is secured into place with a bar clamp. An aluminum sun mask is built in to the Z-Finder to protect your LCD screen from sunlight.

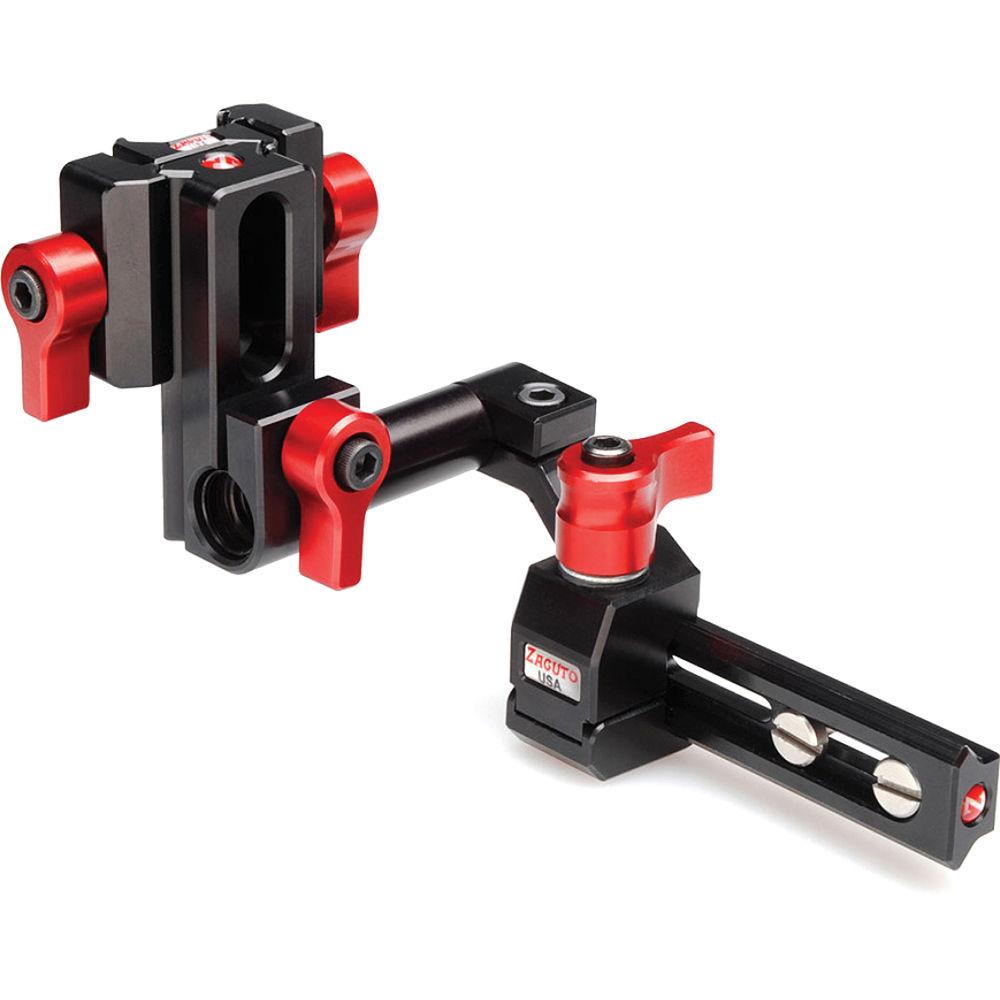

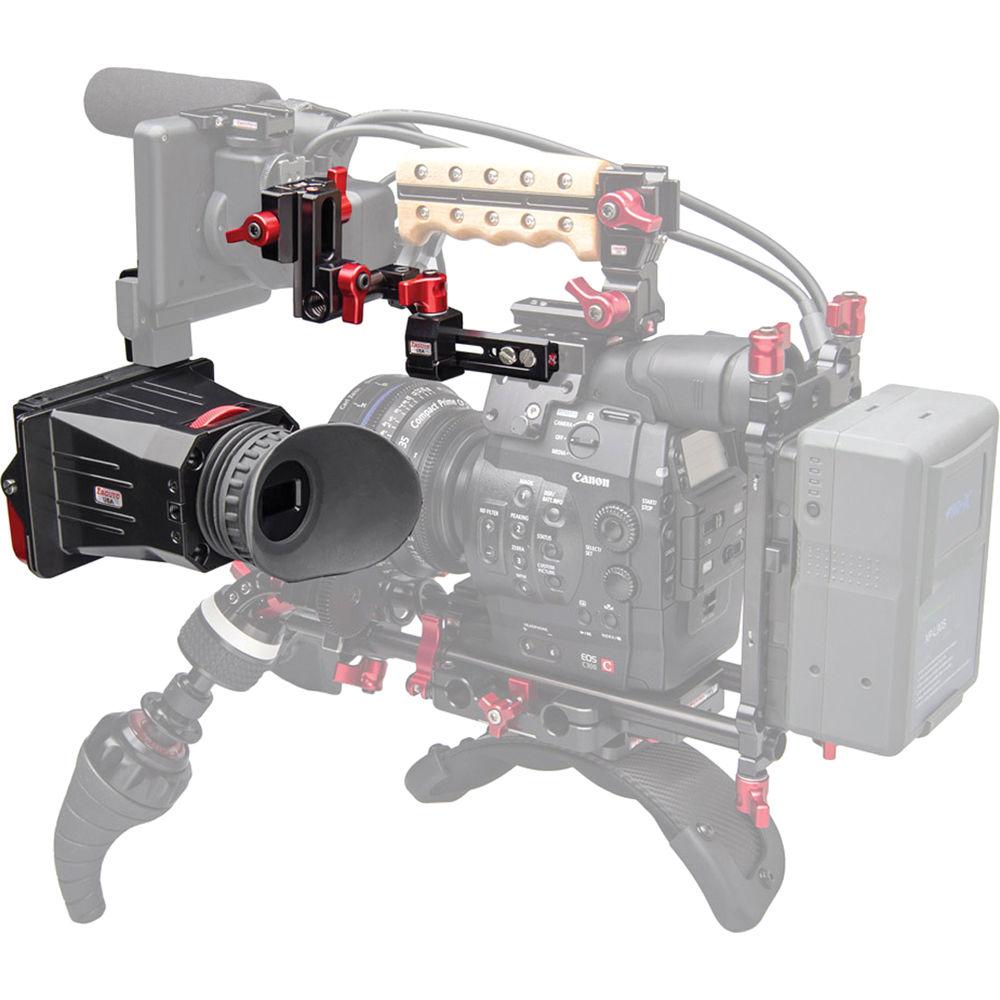

The Mounting Kit for the Z-Finder allows you to position the LCD screen forward and off to the side in a position better suited for shoulder-mounted shooting. The Mounting Kit attaches to a Z-Rail mount and allows forward/backward, side-to-side, and tilt adjustment of the Z-Finder. The kit is designed to integrate with the Zacuto C300/500 helmet and handle.
Note: The Z-Finder is a magnifier and as such will magnify the sun which can damage the LCD screen if the sun is allowed to shine directly through the Z-finder lens. Use the enclosed lens cap to block light from entering your Z-finder when not in use. Note: The C300/C500 Z-Finder with Mounting Kit is only compatible with the Canon C300, C300 Mark II, and C500 cameras. It is not compatible with any other camera or setup.
The C300/C500 Helmet Kit is required to use this kit. For the C300 Mark II, the C300 Mark II is required. When moving the monitor farther forward, you may also need the optional extension cable from Canon. -
- Four diopters: 0, +1, +2, +3
- Anti-fog coating on diopters
- Built-in aluminum sun mask
- Mounting Kit for use with C300/500 Helmet Kit or C300 Mark II Helmet Kit
- Lens cap included

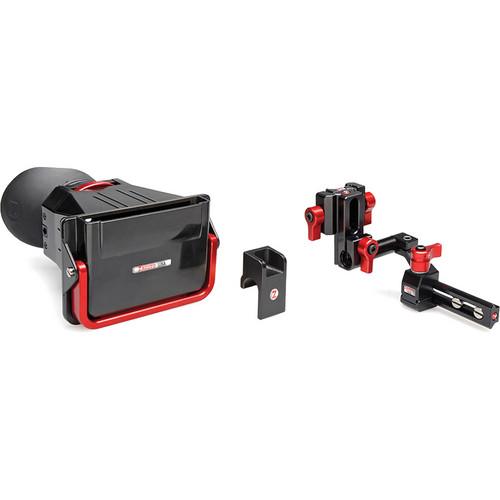

In the Box Zacuto C300/500 Z-Finder 1.8x with Mounting Kit +0 Anti-Fog Diopter +1 Anti-Fog Diopter +2 Anti-Fog Diopter +3 Anti-Fog Diopter Lens Cap Mounting Kit Limited Lifetime Mechanical Warranty Limited 1-Year Electronic Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto C300 500 Z-Finder 1.8x with Mounting Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZacuto Z-FIND-CMB Specs | Magnification | 1.8x | | Dimensions | Z-Finder: 7 x 5.25 x 3.5" / 17.78 x 13.34 x 8.89 cm
Mounting Kit: 3 x 3 x 4" / 7.6 x 7.6 x 10.2 cm | | Weight | Z-Finder: 13.8 oz / 391.2 g
Mounting Kit: 6 oz / 170.1 g | | | | Package Weight | 3.205 lb | | Box Dimensions (LxWxH) | 12.6 x 12.4 x 6.2" |
