Zacuto C300 Mark II EVF Recoil

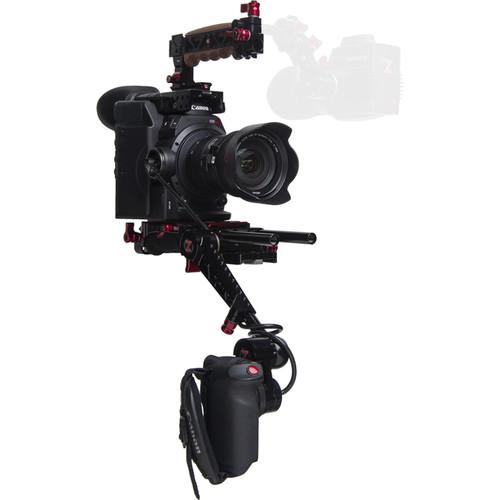

User Manual for Zacuto C300 Mark II EVF Recoil Pro V2

• Product category: Camcorder Supports & Rigs Zacuto
• Brand: Zacuto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zacuto Camcorder Supports & Rigs

Product description

• VCT Pro Baseplate With built-in ergonomic shoulder pad, 10" sliding track, extra space for accessories in front, VCT14-compatible V-wedge, red buttons and levers all around, and much more, this is the stylish VCT Pro Baseplate from Zacuto. Use it with all types of cameras, from DSLRs to larger models, like the Alexa.

  A section of the baseplate extends out beyond the 15mm LWS rod adapter in front. With the rod adapter thus set back, you have additional space to mount accessories under the camera lens, allowing you to position the camera further back on the plate, keeping the balance point of your rig directly over your shoulder. (The rod adapter is vertically adjustable 1", and has to be in a raised position to allow for accessories to be mounted in the additional space. Also, a 1.8" riser for the rod adapter is optionally available for RED cameras by special order from Zacuto.) Also, on the bottom of the section that protrudes out is where the V-wedge is. There is also a 15mm LWS rod adapter on the rear.

  The VCT Pro Baseplate features a 10" sliding track, providing the space to optimally adjust balance after every lens change. Moreover, the included red camera plate can be loosened by a spring-loaded lever instead of a screw, so you can make adjustments quickly and easily. To fully release and remove the plate (and camera), just press a red button on the side of the baseplate and slide the plate out. The rod ports also have spring-loaded levers.

  An ARRI M6 rosette is available on the front for attaching accessories and grips, and there are also three 1/4"-20 threaded holes on the side providing additional mounting options. 1/4"-20 and 3/8"-16 tripod mount holes are available on the bottom to use instead of the V-wedge. The shoulder pad runs pretty much along the entire length as well as width of the baseplate, and is made of gel polymer. Two 6.5" 15mm rods are included. One 1/4"-20 and one 3/8"-16 screw are supplied for the camera plate. The VCT Pro Baseplate is made in the USA.
  Key Features
  • • Front rod adapter is set far back, providing more space for accessories, and allowing the camera to be positioned further back for better balance
    • 10" sliding track (with spring-loaded lever) for balance adjustment after lens changes
    • VCT14-compatible V-wedge
    • 1/4"-20 and 3/8"-16 tripod mount holes
    • Ergonomic gel polymer shoulder pad
    • 15mm LWS rod adapter on the rear
    • Front rod adapter is vertically adjustable 1"; optional 1.8" riser available from Zacuto for RED cameras
    • ARRI M6 rosette
    • Three 1/4"-20 threaded holes for accessories
    • Includes two 6.5" 15mm rods
    • 1/4"-20 and 3/8"-16 screws supplied
    • Made in the USA
• Canon C100/C300/C500 Trigger Grip The Canon C100/C300/C500 Trigger Grip from Zacuto is an adjustable relocator for the Canon C100/C300/C500 camera grip. It's designed to attach to camera supports offering an ARRI-standard rosette, including the Zacuto VCT Pro baseplate. The entire unit can be rotated a full 360° at the quick press of a lever with no need to unscrew a knob or lever as with standard handgrips, and it can also be adjusted in length by loosening another lever.
• C300 Mark II Helmet Kit Providing you a secure platform for attaching accessories to your C300 Mark II camera, the Zacuto C300 Mark II Helmet Kit includes the Zacuto C300 Mark II Helmet, a 3" Z-Rail, and a Zacuto Recoil Top Handle. This kit provides you a secure top handle to hold and operate your C300 Mark II camera as well as mount accessories via the multiple 1/4"-20 and 3/8"-16 threaded accessory mounting holes.

  This kit provides a simple yet flexible system for handling your camera. A system that you can adjust by sliding the recoil handle along the length of the 3" Z-rail to achieve comfortable operating balance of your camera. The handle includes two cold shoe mounts, and the helmet's accessory mounting holds increases the accessory options that you can use with your camera.

• 2 x 6.5" 15mm Rods

• 1/4"-20 Camera Screw

• 3/8"-16 Camera Screw

• Limited Lifetime Warranty

• Limited Lifetime Warranty

• C300 Mark II Helmet for Canon C300 Mark II Camera

• 3" Z-Rail

• Recoil Handle

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• VCT Pro Baseplate

  Mount Types	VCT14-compatible V-wedge 15 mm LWS rod ports in front and back 1/4"-20 and 3/8"-16 tripod mount holes 1/4"-20 and 3/8"-16 camera screws included 6.5" (16.5 cm) 15mm rods included ARRI M6 rosette Three 1/4"-20 threaded holes for accessories
  Dimensions	14.25 x 4.25 x 2" (36.2 x 10.8 x 5 cm) (with included 6.5"/16.5 cm rods)
  Weight	2.1 lb (0.96 kg)

  Box Dimensions (LxWxH)	10.75 x 7.4 x 3.45"

• Canon C100/C300/C500 Trigger Grip

  Box Dimensions (LxWxH)	8.1 x 4.8 x 2.8"

• C300 Mark II Helmet Kit

  Box Dimensions (LxWxH)	9.0 x 6.0 x 3.0"
