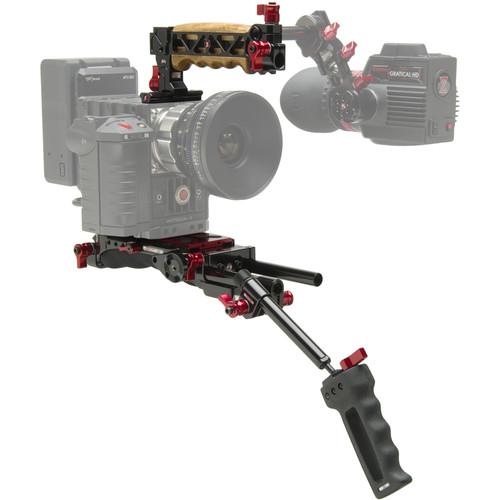

Zacuto Cine EVF Recoil Rig

User Manual for Zacuto Cine EVF Recoil Rig

• Product category: Camcorder Supports & Rigs Zacuto
• Brand: Zacuto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zacuto Camcorder Supports & Rigs

Product description

• VCT Universal Baseplate The Zacuto VCT Universal Baseplate features a built-in, curved shoulder pad, a V-lock plate, removable, 15mm LWS spring-loaded rod clamps with 1.6" of vertical adjustment, and rows of 1/4"-20 mounting threads along the sides for accessories. The contoured and cushioned shoulder cavity allows your camera to sit only three quarters of an inch above your shoulder, and you can mount the VCT Universal Baseplate to a tripod with a VCT14 QR plate. The shoulder pad is made of soft-gel polymer and a two-piece shoulder pad accounts for the natural slope in shoulder, and is designed to balance your camera on the operator's right shoulder only. The V-lock tripod connector also incorporates 1/4"-20 and 3/8"-16 threads for direct connection to your tripod quick release plate.

  The spring-loaded rod clamps are set far back in the baseplate. This allows you to position your camera further back on the plate, thus keeping the balance point of your rig directly over your shoulder. The sliding track of the rod riser offers 0.87" of vertical adjustment. The riser can also be flipped to offer up to 1.57" of adjustment from the lowest point. The shoulder pad is set as far forward on the plate as possible in order to maximize your accessory capable rod area and help with balance. This baseplate is designed to provide balance and comfort for every camera.
  • Designed to work with virtually any camera
  • Enables you to go from hand held/shoulder shooting to tripod shooting without changing mounting plates
  • Attaches to any VCT14 QR tripod adapter system
  • Vertically adjustable 15mm LWS rod clamps with spring-loaded locking levers
  • Rear mounted screw thread sockets for 15mm rods following the Light Weight Rod Standard (LWS) of 60mm on-center distance between rods
• Zgrip Z-Mount Zwivel Handgrip The Zgrip Z-Mount Zwivel Handgrip from Zacuto comes with a black 4.5" rod and a Z-Mount Zwivel. It easily mounts on any 15mm rod with the quick release handgrip. The Zwivel allows you to change the angle between two 15mm rods by loosening the single lever that controls both the 15mm holes. Adjustments to achieve the desired angle are possible by the separation between the parts induced by the integrated spring.
  • The Zwivel allows you to change the angle between two 15mm rods by loosening the single lever that controls both the 15mm holes.
  • The Handgrip supports all 15mm rods with the quick release handgrip.
  • The integrated spring separates the parts for you to achieve the desired angle between the rods.
• Recoil Handle The Zacuto Recoil Handle is a maple-wood-lined handgrip that mounts to a Z-Rail or compatible mounting rail. This provides a comfortable yet secure handle for your camera rig, and the rail-style mounting allows you to adjust the handle along the length of the rail to improve your rigs balance. It features two cold shoe mounts (one vertical and one horizontal) and secures both mounts with a single lever. The integrated 1/4"-20 threaded mounting hole, and 15mm rod clamps further expand on the Recoil Handle's usefulness.

  Machined aluminum construction provides a balance of strength and weight, and the unit is anodized for corrosion and wear resistance. Large, spring-loaded locking levers provide a good grip and the capability of tightening the clamps without rotating the levers throughout the entire 360° range.

  Key Features

  • The Recoil Handle clamps securely along the length of a Zacuto Z-Rail, allowing you to adjust the balance of your camera or camera rig. In addition to the Z-Rail, the handle is compatible with a variety of rails including: NATO, SWAT, RED, Picatinny, and Wooden Camera. You can mount the handle with the cold shoes or the rod clamps.
  • The maple-wood grip linings remain cool in hot weather and are generally considered to be more comfortable to hold. The wood is tooled to provide finger slots for increased comfort and grip.
  • The two cold shoes incorporate built-in stoppers and a single lever clamps both shoes simultaneously, securing your accessories. A 1/4"-20 accessory mounting point is threaded into the side of the cold shoe mounts.
  • Two offset 15mm rod clamps allow you to mount rods at right angles to each other. Each rod clamp features its own spring-loaded locking lever.

• Pair of 6.5" 15mm Rods

• Gel Polymer Shoulder Pad

• 1/4"-20 Screw

• 3/8"-16 Screw

• Limited Lifetime Warranty

• Rod (4.5")

• Z-Mount Zwivel

• Limited Lifetime Warranty

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• VCT Universal Baseplate

  Material	Shoulder Pad: Gel Polymer
  Rod Type	15 mm
  Rod Standard	15mm LWS
  Vertical Adjustment	1.6" / 40 mm
  Dimensions	13.5 x 4.25 x 1.75" / 34.3 x 10.8 x 4.4 cm (without rods)
  Weight	2 lb / 0.9 kg (with rods)

  Box Dimensions (LxWxH)	10.8 x 7.4 x 4.7"

• Zgrip Z-Mount Zwivel Handgrip

  Rod Length	4.5" (114 mm)
  Rod Diameter	15 mm

  Box Dimensions (LxWxH)	11.0 x 7.5 x 1.0"

• Recoil Handle

  Mounting	Z-Rail NATO SWAT RED Picatinny Wooden Camera
  Accessory Mounting	1 x 1/4"-20 2 x cold shoe 2 x single 15mm rod clamps
  Dimensions	7.5 x 3.0 x 3.0" / 19.1 x 7.6 x 7.6 cm
  Weight	8.0 oz / 226.8 g

  Box Dimensions (LxWxH)	6.1 x 5.0 x 2.5"
