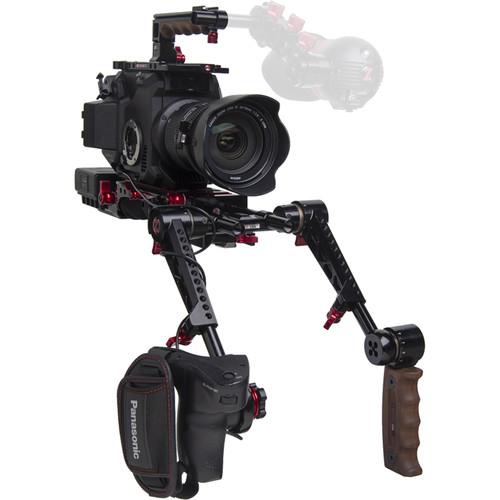

User Manual for Zacuto EVA1 EVF Recoil Pro with Dual Trigger Grips

• Product category: Camcorder Supports & Rigs Zacuto
• Brand: Zacuto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zacuto Camcorder Supports & Rigs

Product description

• VCT Pro Baseplate With built-in ergonomic shoulder pad, 10" sliding track, extra space for accessories in front, VCT14-compatible V-wedge, red buttons and levers all around, and much more, this is the stylish VCT Pro Baseplate from Zacuto. Use it with all types of cameras, from DSLRs to larger models, like the Alexa.

  A section of the baseplate extends out beyond the 15mm LWS rod adapter in front. With the rod adapter thus set back, you have additional space to mount accessories under the camera lens, allowing you to position the camera further back on the plate, keeping the balance point of your rig directly over your shoulder. (The rod adapter is vertically adjustable 1", and has to be in a raised position to allow for accessories to be mounted in the additional space. Also, a 1.8" riser for the rod adapter is optionally available for RED cameras by special order from Zacuto.) Also, on the bottom of the section that protrudes out is where the V-wedge is. There is also a 15mm LWS rod adapter on the rear.

  The VCT Pro Baseplate features a 10" sliding track, providing the space to optimally adjust balance after every lens change. Moreover, the included red camera plate can be loosened by a spring-loaded lever instead of a screw, so you can make adjustments quickly and easily. To fully release and remove the plate (and camera), just press a red button on the side of the baseplate and slide the plate out. The rod ports also have spring-loaded levers.

  An ARRI M6 rosette is available on the front for attaching accessories and grips, and there are also three 1/4"-20 threaded holes on the side providing additional mounting options. 1/4"-20 and 3/8"-16 tripod mount holes are available on the bottom to use instead of the V-wedge. The shoulder pad runs pretty much along the entire length as well as width of the baseplate, and is made of gel polymer. Two 6.5" 15mm rods are included. One 1/4"-20 and one 3/8"-16 screw are supplied for the camera plate. The VCT Pro Baseplate is made in the USA.
  Key Features
  • • Front rod adapter is set far back, providing more space for accessories, and allowing the camera to be positioned further back for better balance
    • 10" sliding track (with spring-loaded lever) for balance adjustment after lens changes
    • VCT14-compatible V-wedge
    • 1/4"-20 and 3/8"-16 tripod mount holes
    • Ergonomic gel polymer shoulder pad
    • 15mm LWS rod adapter on the rear
    • Front rod adapter is vertically adjustable 1"; optional 1.8" riser available from Zacuto for RED cameras
    • ARRI M6 rosette
    • Three 1/4"-20 threaded holes for accessories
    • Includes two 6.5" 15mm rods
    • 1/4"-20 and 3/8"-16 screws supplied
    • Made in the USA
• Panasonic EVA1 Dual Trigger Grips The Panasonic EVA1 Dual Trigger Grips from Zacuto are a 15mm LWS rod mount handgrip set featuring one wooden handgrip and one grip relocator for the Panasonic EVA1 camera grip. Each can be individually rotated a full 360° at the press a dedicated lever — there is no need to screw or unscrew any knob or lever but rather just press it on the fly. Furthermore, the wooden component of the wooden handgrip can also be adjusted forward and backward at the press of another lever, and same goes for your camera grip once you attach it.

  The handgrip and relocator are secured into sleeves and can be adjusted in length within the sleeves by loosening a corresponding lever for each one. They can be adjusted from 13 to 16" in length, measuring from the base to the bottom of the handgrip. Scale markings are available on top to allow you to easily match up the positions of the handgrips. The handgrips are fully removable and you can incorporate a second wooden handgrip at a later time to alternate with the relocator.
  Key Features
  • • 15mm LWS rod mount handgrip set
    • Includes a wooden handgrip and a grip relocator for the Panasonic EVA1 camera grip
    • 360° rotation at the press of a lever — no screwing/unscrewing
    • Forward/backward adjustment at the press of another lever
    • Length adjustable
    • Scale markings for easily matching the positions of the handgrips
• Top Handle with Z-Rail and Cold Shoe Mount The Zacuto Top Handle with Z-Rail and Cold Shoe Mount features a slim design with a contoured wood grip that fits comfortably in your hand. It features an orientable Z-Rail clamp, and the built-in Z-Rail, cold shoe, and single 3/8"-16 and multiple 1/4"-20 threaded mounting holes enable you to mount a variety of accessories.

  The Top Handle attaches to any Z-Rail dovetail, and the Z-Rail jaw clamp can be oriented multiple ways to work on horizontal or vertical Z-Rails. The spring-loaded locking lever enables tightening or loosening of the clamp even when you don't have room to fully rotate the lever. It releases quickly with the flip of a mini ratcheting lever. This is well suited for mounting to the GH5 cage or using on your Recoil rigs.
  • Zacuto dovetail accessories are adjustable to work with Z-Rail, NATO, SWAT, RED, Picatinny, and Wooden Camera rails.
• 15mm Rod Lock for Top Handle The Zacuto 15mm Rod Lock for Top Handle slides into the cold shoe of the Zacuto Top Handle and is secured by two included screws. This adds a 15mm rod clamp to the top handle, allowing you to mount a variety of accessories such as the Axis Mini EVF Mount. The Rod Lock also features a removable cold shoe mount so you don't lose the handle cold shoe that the Rod Lock is mounted on.

• Top Plate with Z-Rail for Panasonic EVA1 Camera

• 2 x 6.5" 15mm Rods

• 1/4"-20 Camera Screw

• 3/8"-16 Camera Screw

• Limited Lifetime Warranty

• Dual Trigger Grip Base

• Wooden Handgrip

• Panasonic EVA1 Grip Relocator

• Limited Lifetime Warranty

• Limited Lifetime Warranty

• Cold Shoe

• 2 x 18-8 Phillips Flat Head Screw

• 2 x 10-32 Thread, 3/8" Long Screw

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• VCT Pro Baseplate

  Mount Types	VCT14-compatible V-wedge 15 mm LWS rod ports in front and back 1/4"-20 and 3/8"-16 tripod mount holes 1/4"-20 and 3/8"-16 camera screws included 6.5" (16.5 cm) 15mm rods included ARRI M6 rosette Three 1/4"-20 threaded holes for accessories
  Dimensions	14.25 x 4.25 x 2" (36.2 x 10.8 x 5 cm) (with included 6.5"/16.5 cm rods)
  Weight	2.1 lb (0.96 kg)

  Box Dimensions (LxWxH)	10.75 x 7.4 x 3.45"

• Panasonic EVA1 Dual Trigger Grips

  Material of Construction

  Aluminum, wood

  Box Dimensions (LxWxH)	8.6 x 6.0 x 2.2"

• Top Handle with Z-Rail and Cold Shoe Mount

  Material of Construction	Anodized aluminum Maple
  Mounting	Z-Rail clamp
  Accessory Mounting	Z-Rail 1 x Cold shoe 8 x 1/4"-20 1 x 3/8"-16
  Dimensions	0.83 x 5.15 x 2.49" / 2.11 x 13.08 x 6.32 cm
  Weight	4.8 oz / 136.1 g

  Box Dimensions (LxWxH)	5.1 x 4.4 x 1.3"

• 15mm Rod Lock for Top Handle

  Dimensions	0.83 x 2.22 x 1.5" / 2.11 x 5.64 x 3.81 cm
  Weight	0.75 oz / 21.26 g

  Box Dimensions (LxWxH)	5.0 x 3.0 x 1.0"

• Top Plate with Z-Rail for Panasonic EVA1 Camera

  Box Dimensions (LxWxH)	6.4 x 3.3 x 0.9"
