User Manual for Zacuto Extended Top Handle Click to enlarge the picture
Contents of the user manual for the Zacuto Extended Top Handle
- Product category: Handles & Grips Zacuto
- Brand: Zacuto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zacuto Handles & Grips
|
User manual for the Zacuto Extended Top Handle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zacuto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zacuto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zacuto product will considerably shorten its lifespan!
|

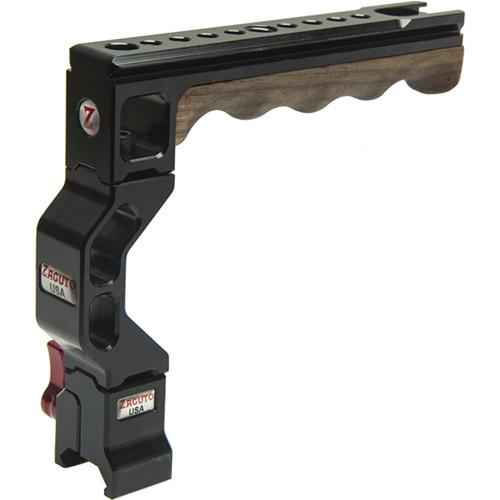

Product description The Zacuto Extended Top Handle consists of Zacuto's Top Handle and Top Handle Extension. When mounted together, this raises the height of the Top Handle to give added clearance to your camera's hot shoe mount. This is particularly useful when using a variety of audio accessories or when mounting a handle to your GH5 cage or Sony a7 III, a7R III, or a9 cage. The Extended Top Handle mounts onto any Z-Rail system and can also clamp to NATO, SWAT, RED, Picatinny, and Wooden Camera rails. - Top Handle with Z-Rail and Cold Shoe Mount The Zacuto Top Handle with Z-Rail and Cold Shoe Mount features a slim design with a contoured wood grip that fits comfortably in your hand. It features an orientable Z-Rail clamp, and the built-in Z-Rail, cold shoe, and single 3/8"-16 and multiple 1/4"-20 threaded mounting holes enable you to mount a variety of accessories.
The Top Handle attaches to any Z-Rail dovetail, and the Z-Rail jaw clamp can be oriented multiple ways to work on horizontal or vertical Z-Rails. The spring-loaded locking lever enables tightening or loosening of the clamp even when you don't have room to fully rotate the lever. It releases quickly with the flip of a mini ratcheting lever. This is well suited for mounting to the GH5 cage or using on your Recoil rigs. - Zacuto dovetail accessories are adjustable to work with Z-Rail, NATO, SWAT, RED, Picatinny, and Wooden Camera rails.
- Top Handle Extension for Zacuto Top or Recoil Handle The Zacuto Top Handle Extension is a useful item that helps you elevate the height of a Zacuto Top or Recoil Handle. It features a mounting bar at the top end where a threaded screw is used to secure the top handle in place, and mounts via a screw onto a Z-Rail clamp. Please note that neither handle nor Z-Rail clamp is included.
In the Box Bundle Items Top Handle with Z-Rail and Cold Shoe Mount betywxyfdaacbfez - Limited Lifetime Warranty
Top Handle Extension for Zacuto Top or Recoil Handle - 10/32 Thread, 3/8" Long Screw
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto Extended Top Handle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Top Handle with Z-Rail and Cold Shoe Mount
| Material of Construction | Anodized aluminum
Maple | | Mounting | Z-Rail clamp | | Accessory Mounting | Z-Rail
1 x Cold shoe
8 x 1/4"-20
1 x 3/8"-16 | | Dimensions | 0.83 x 5.15 x 2.49" / 2.11 x 13.08 x 6.32 cm | | Weight | 4.8 oz / 136.1 g | | | | Box Dimensions (LxWxH) | 5.1 x 4.4 x 1.3" | - Top Handle Extension for Zacuto Top or Recoil Handle
| Material of Construction | Anodized Aluminum | | Mounting Thread | 10-32 | | Dimensions | 2.5 x 2 x 0.5" / 6.35 x 5.08 x 1.27 cm | | Weight | 1.3 oz / 36.8 g | | | | Box Dimensions (LxWxH) | 5.1 x 3.05 x 1.05" |
