User Manual for Zacuto GH3 GH4 Z-Finder Pro Optical Viewfinder Click to enlarge the picture
Contents of the user manual for the Zacuto GH3 GH4 Z-Finder Pro Optical
- Product category: LCD Hoods & Shades Zacuto
- Brand: Zacuto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zacuto LCD Hoods & Shades
|
User manual for the Zacuto GH3 GH4 Z-Finder Pro Optical contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zacuto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zacuto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zacuto product will considerably shorten its lifespan!
|

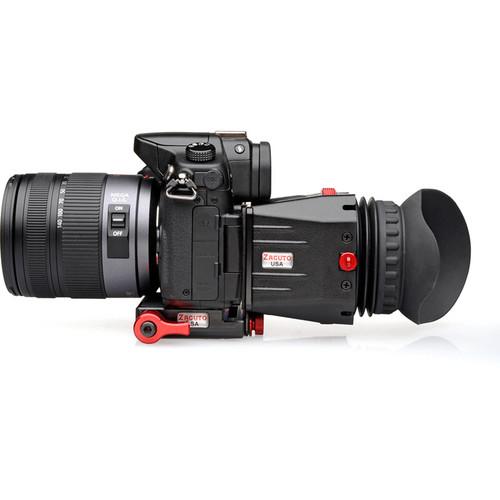

Product description The GH3/GH4 Z-Finder Pro Optical Viewfinder from Zacuto attaches to the Panasonic GH3 and GH4 cameras and provides a large, stable, eye-level viewer designed for shooting video. Its large eye cup blocks out extraneous light and offers a comfortable point of stability. The viewfinder has a 40mm diameter Zacuto lens and provides a 2.5x magnification of the camera's LCD monitor. The lens has an anti-fog protective cover and a built-in diopter for fine tuning the focus to match your eyesight.The Z-Finder Pro attaches to the GH3/GH4 via the included Gorilla Plate V2 and the Z-Finder Mounting Frame for the GH3/GH4. It will not fit other cameras nor will it work on the cameras with a battery grip attached or with the LCD screen articulated. The frame has a rubber coating to protect the LCD as well as to provide a firm seal with the camera. The Gorilla Plate V2 attaches to the camera's tripod socket with a 1/4"-20 screw and offers a 15mm rod port. The Z-Finder Pro can be detached from the frame easily and hung around your neck on the included lanyard.Three additional extender mounting frames are included to extend the distance between the viewfinder's lens and the camera's LCD monitor. This is intended for use by farsighted users as the increased distance will bring the image into focus. Also included is one installed and one additional anti-fog disc, a dust cover, lens cap, sun mask, protective boot, and lanyard.If you already own a Z-Finder Pro or Z-Finder Jr, you can use it with the GH3/GH4; however, you do need the Gorilla Plate V2 and the Z-Finder Mounting Frame for GH3/GH4, available here. - Optical viewfinder for GH3 and GH4 cameras with a form factor designed to enable clear, stable video shooting.
- 40mm diameter lens provides 2.5x magnification of the camera's LCD screen
- Includes Z-Finder Mounting Frame for GH3/GH4 and Gorilla Plate V2 that attach to camera via tripod mount. Gorilla Plate includes a 15mm rod port, and the Mounting Frame provides rubber seal to protect LCD and fit snugly to camera back
- Includes three extender plates to provide focusing for farsighter viewers
- Includes lanyard to hang Z-Finder Pro around your neck when not attached to camera.
- Includes two anti-fog protective discs (one installed, one additional)
- Also includes lens cap, sun mask, dust cover, and protective boot
UPC: 741459185718 In the Box Zacuto GH3/GH4 Z-Finder Pro Optical Viewfinder GH3 Z-Finder Frame Kit zzvfrdtetbubxxdrtvabs 3 x Z-Finder Extender Frames Lanyard w/Lanyard Hook for Z-Finder Z-Finder 16 x 9 Sun Mask Z-Finder Dust Cover 2 x Anti-fog Discs Lens Cap Protective Boot Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto GH3 GH4 Z-Finder Pro Optical Viewfinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZacuto Z-FIND-GH3 Specs | Material of Construction | Viewfinder: PlasticPlate and Frame: Aluminum Alloy | | Magnification | 2.5x | | Lens Diameter | 40mm | | Dimensions | 2.7 x 1.8" (68 x 45 mm) | | Weight | 9.6 oz (272 g) | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.7" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
