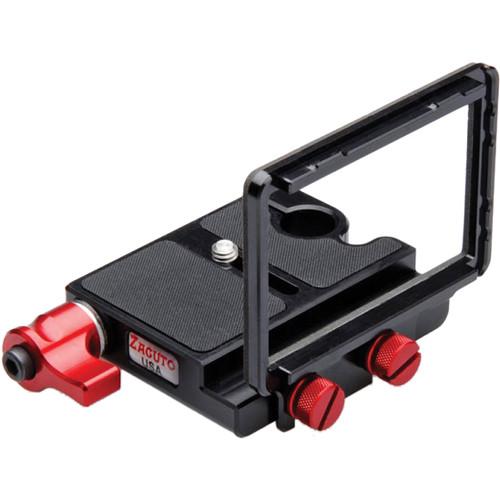

User Manual for Zacuto GH3 Z-Finder Frame Kit Click to enlarge the picture
Contents of the user manual for the Zacuto GH3 Z-Finder Frame Kit
- Product category: LCD Hoods & Shades Zacuto
- Brand: Zacuto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zacuto LCD Hoods & Shades
|
User manual for the Zacuto GH3 Z-Finder Frame Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zacuto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zacuto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zacuto product will considerably shorten its lifespan!
|
Product description Mount a Z-Finder to your Panasonic GH3 or GH4 with this GH3 Z-Finder Frame Kit from Zacuto. Packaging together a dedicated mounting frame with the Gorilla Plate V2, users will be able to quickly and easily set up their camera for advanced video shooting. - Gorilla Plate V2 The Zacuto Gorilla Plate V2 is a small camera mounting plate for small DSLR and mirrorless cameras. The plate provides mounting points for available Z-Finder mounting frames allowing you to attach a Zacuto Z-Finder to a camera such as the Panasonic GH3. Additional frame options allows the Z-Finder to be attached to a variety of DSLR cameras. The Gorilla plate features a rubberized top to provide good grip and prevent the camera from twisting on the plate. The 1/4"-20 camera mounting screw is captive, so you don't have to worry about it falling out when you remove the camera.
The Gorilla Plate V2 also features three 1/4"-20 threaded mounting holes for attaching it to a tripod or QR plate. The tripod mounting holes are off center, and if you need a centered tripod mounting hole, for use with some support rigs and matteboxes, you will need to purchase an available Zacuto Gorilla Plate Adapter. The Gorilla Plate V2 incorporates a vertical 15mm diameter rod port that can be used to clamp onto a 15mm rod, for use with various available camera support systems that feature a 15mm diameter vertical camera support rod. The clamping lever is ratcheting style, so you can fully tighten or loosen the clamp even when you can't completely rotate the knob. - The camera plate is made from anodized aluminum so that it is lightweight and corrosion resistant.
- The rubberized top surface of the plate provides a a good grip to help prevent the camera from rotating while mounted to the Gorilla Plate.
- The Gorilla Plate V2 allows you to mount an available Z-Finder to DSLR and other small cameras by providing attachment holes for interchangeable Z-Finder Frames.
- The 15mm rod port allows you to mount the Gorilla Plate V2 to available camera support systems that use a 15mm vertical rod for the camera riser, such as the Zacuto Striker and Target Shooter.
UPC: 741459185916 - Z-Finder Mounting Frame for DMC-GH3 Digital Camera This Zacuto Z-Finder Mounting Frame is designed to allow a Z-Finder to be used on a Panasonic DMC-GH3 digital camera. The Gorilla Plate V2 is required to attach the frame to the camera. Additionally, there is a rubber coating between the frame and screen to avoid scratches and create a seal.
This frame is not compatible when a battery grip is attached or when the screen is articulated. In the Box Bundle Items Gorilla Plate V2 zzvfrdtetbubxxdrtvabs - 1/4"-20 Captive Camera Tie Down Screw
Z-Finder Mounting Frame for DMC-GH3 Digital Camera - Limited Lifetime Warranty
Also Includes - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto GH3 Z-Finder Frame Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Gorilla Plate V2
| Material of Construction | Anodized aluminum
Rubberized top plate | | Camera Mounting Screw | 1 x Captive 1/4"-20 Screw | | Tripod Mounting Thread | 3 x 1/4"-20 threaded mounting holes
1 x Slot for available Gorilla Plate Mount Adapter | | Accessory Mounting | 2 x 1/4"-20 mounting holes for attaching an available Z-Finder Mounting Frame Slide Kit, for attaching oprional Z-Finder Frames | | Dimensions (L x W x D) | 3 x 2.25 x 0.75" (7.6 x 5.7 x 1.9 cm)
Note: not including the QR lever clamp | | Weight | 5 oz (141.8 g) | | | | Box Dimensions (LxWxH) | 5.0 x 2.6 x 0.8" | - Z-Finder Mounting Frame for DMC-GH3 Digital Camera
| Construction | Aluminum | | Attachment | 2 x Thumbscrews | | | | Box Dimensions (LxWxH) | 5.8 x 5.3 x 1.3" |
