Product description

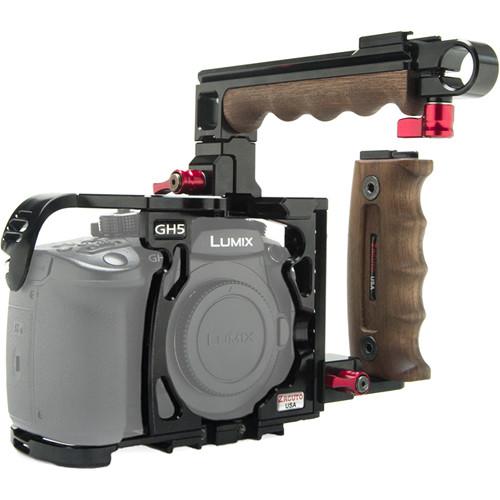

• GH5 Cage for GH5 and GH5S Zacuto touts their GH5 Cage for GH5 and GH5S as a "no-cage" cage, although it provides protection and support for accessories via 1/4"-20 threaded mounting holes and otherwise meets the criteria for what people generally refer to as a cage. Lightweight, but maintaining the robust build quality Zacuto is known for, the cage features anodized aluminum construction with a front plate, the accessory mounting holes, and a removable handgrip on the camera left side. The cage is form-fitting and is designed to use your camera's neck strap eyelets, in conjunction with the 1/4"-20 mounting screw, to keep your camera secure.

  The design of the cage allows access to all the camera's functions, battery, and SD card compartments, as well as leaving your camera's hot shoe unobstructed. In addition, the design permits you to grasp your camera with your right hand as if the cage were not there, while the included strap keeps your hand snug against the camera. The top plate incorporates numerous 1/4"-20 threaded mounting holes, with the cage itself featuring a total of 46. The bottom of the cage is machined into a dovetail compatible with an optional VCT Pro or VCT Pro Dock, but it also features two 1/4"-20 and one 3/8"-16 threaded mounting holes for mounting a tripod plate. An optional top handle and Metabones support expand the functionality of the cage.
  Built-In
  • • Anodized aluminum construction
    • 46 total 1/4"-20 threaded accessory mounting holes
    • Built-in Z-Rail for top handle (or other accessory) mounting
    • And included HDMI "pincher" attaches directly to your camera
    • Access to the battery and SD card compartments, all the camera's knobs and functions, and the camera's hot shoe is maintained
    • The wood handgrip incorporates a cold shoe, and mounts to the cage via a Z-Rail
  Optional
  • • A Metabones adapter support that attaches directly to the cage and not to rods is available
    • A 15mm LWS rod support base is available
    • A top handle with cold shoe is available
• Top Handle with Z-Rail and Cold Shoe Mount The Zacuto Top Handle with Z-Rail and Cold Shoe Mount features a slim design with a contoured wood grip that fits comfortably in your hand. It features an orientable Z-Rail clamp, and the built-in Z-Rail, cold shoe, and single 3/8"-16 and multiple 1/4"-20 threaded mounting holes enable you to mount a variety of accessories.

  The Top Handle attaches to any Z-Rail dovetail, and the Z-Rail jaw clamp can be oriented multiple ways to work on horizontal or vertical Z-Rails. The spring-loaded locking lever enables tightening or loosening of the clamp even when you don't have room to fully rotate the lever. It releases quickly with the flip of a mini ratcheting lever. This is well suited for mounting to the GH5 cage or using on your Recoil rigs.
  • Zacuto dovetail accessories are adjustable to work with Z-Rail, NATO, SWAT, RED, Picatinny, and Wooden Camera rails.
• 15mm Rod Lock for Top Handle The Zacuto 15mm Rod Lock for Top Handle slides into the cold shoe of the Zacuto Top Handle and is secured by two included screws. This adds a 15mm rod clamp to the top handle, allowing you to mount a variety of accessories such as the Axis Mini EVF Mount. The Rod Lock also features a removable cold shoe mount so you don't lose the handle cold shoe that the Rod Lock is mounted on.

• Hand Strap

• Side Handle

• Limited Lifetime Warranty

• Limited Lifetime Warranty

• Cold Shoe

• 2 x 18-8 Phillips Flat Head Screw

• 2 x 10-32 Thread, 3/8" Long Screw

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• GH5 Cage for GH5 and GH5S

  Material of Construction	Anodized aluminum
  Accessory Mounting	46 x 1/4"-20 threaded holes
  Dimensions	Cage: 6 x 3 x 4.5" / 15.24 x 7.62 x 11.43 cm Cage with Handgrip: 8.5 x 3 x 5" / 21.59 x 7.62 x 12.7 cm
  Weight	Cage: 0.6 lb / 0.3 kg Cage with Handgrip: 0.9 lb / 0.4 kg

  Box Dimensions (LxWxH)	10.8 x 7.25 x 4.65"

• Top Handle with Z-Rail and Cold Shoe Mount

  Material of Construction	Anodized aluminum Maple
  Mounting	Z-Rail clamp
  Accessory Mounting	Z-Rail 1 x Cold shoe 8 x 1/4"-20 1 x 3/8"-16
  Dimensions	0.83 x 5.15 x 2.49" / 2.11 x 13.08 x 6.32 cm
  Weight	4.8 oz / 136.1 g

  Box Dimensions (LxWxH)	5.1 x 4.4 x 1.3"

• 15mm Rod Lock for Top Handle

  Dimensions	0.83 x 2.22 x 1.5" / 2.11 x 5.64 x 3.81 cm
  Weight	0.75 oz / 21.26 g

  Box Dimensions (LxWxH)	5.0 x 3.0 x 1.0"
