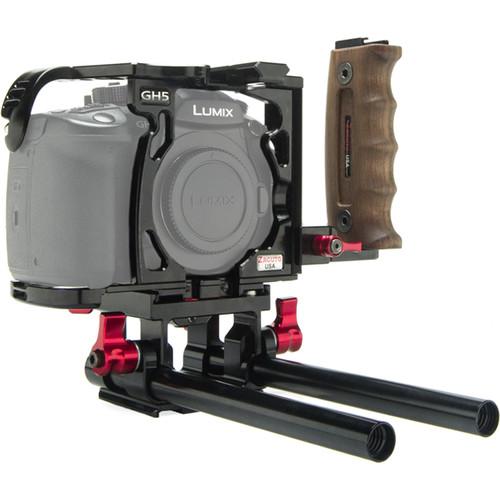

User Manual for Zacuto GH5 Cage Bundle 2 for GH5 and GH5S Click to enlarge the picture
Contents of the user manual for the Zacuto GH5 Cage Bundle 2 for
- Product category: DSLR Video Supports & Rigs Zacuto
- Brand: Zacuto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zacuto DSLR Video Supports & Rigs
|
User manual for the Zacuto GH5 Cage Bundle 2 for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zacuto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zacuto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zacuto product will considerably shorten its lifespan!
|
Product description The Zacuto GH5 Cage Bundle 2 for GH5 and GH5S includes the Zacuto GH5 Cage and the Zacuto Rod Support Base for the LUMIX GH5 Cage. This bundle brings you a versatile cage system that protects your camera while providing additional mounting points for accessories. The GH5 cage slides into the rod support base and creates the industry-standard 85mm rod-center to lens-center distance for use with 15mm LWS rod accessories. The rod support can be mounted to a tripod via its 1/4"-20 or 3/8"-16 threaded mounting holes, or it can attach to the VCT Pro (not included). - GH5 Cage for GH5 and GH5S Zacuto touts their GH5 Cage for GH5 and GH5S as a "no-cage" cage, although it provides protection and support for accessories via 1/4"-20 threaded mounting holes and otherwise meets the criteria for what people generally refer to as a cage. Lightweight, but maintaining the robust build quality Zacuto is known for, the cage features anodized aluminum construction with a front plate, the accessory mounting holes, and a removable handgrip on the camera left side. The cage is form-fitting and is designed to use your camera's neck strap eyelets, in conjunction with the 1/4"-20 mounting screw, to keep your camera secure.
The design of the cage allows access to all the camera's functions, battery, and SD card compartments, as well as leaving your camera's hot shoe unobstructed. In addition, the design permits you to grasp your camera with your right hand as if the cage were not there, while the included strap keeps your hand snug against the camera. The top plate incorporates numerous 1/4"-20 threaded mounting holes, with the cage itself featuring a total of 46. The bottom of the cage is machined into a dovetail compatible with an optional VCT Pro or VCT Pro Dock, but it also features two 1/4"-20 and one 3/8"-16 threaded mounting holes for mounting a tripod plate. An optional top handle and Metabones support expand the functionality of the cage. - Built-In
-
- Anodized aluminum construction
- 46 total 1/4"-20 threaded accessory mounting holes
- Built-in Z-Rail for top handle (or other accessory) mounting
- And included HDMI "pincher" attaches directly to your camera
- Access to the battery and SD card compartments, all the camera's knobs and functions, and the camera's hot shoe is maintained
- The wood handgrip incorporates a cold shoe, and mounts to the cage via a Z-Rail
- Optional
-
- A Metabones adapter support that attaches directly to the cage and not to rods is available
- A 15mm LWS rod support base is available
- A top handle with cold shoe is available
- Rod Support Base for GH5 or Sony a7RIII/a7III/a9 Cage The Rod Support Base from Zacuto adds 15mm lightweight rod support to the GH5 or Sony a7RIII/a7III/a9 cage for mounting matte boxes and other rod-mounted accessories. The base of the cage easily slides into the rod support and locks securely into place. The included 8" 15mm rods can slide through the support base for length adjustability. This rod support base can be mounted on a tripod via 1/4"-20 and 3/8"-16 mounting holes. It also features a dovetail mount for sliding into the Zacuto VCT Pro baseplate (available separately) for added flexibility.
In the Box Bundle Items GH5 Cage for GH5 and GH5S bdszbtdyufsascerfabqdvuzusvsba - Limited Lifetime Warranty
Rod Support Base for GH5 or Sony a7RIII/a7III/a9 Cage - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto GH5 Cage Bundle 2 for GH5 and GH5S in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - GH5 Cage for GH5 and GH5S
| Material of Construction | Anodized aluminum | | Accessory Mounting | 46 x 1/4"-20 threaded holes | | Dimensions | Cage: 6 x 3 x 4.5" / 15.24 x 7.62 x 11.43 cm
Cage with Handgrip: 8.5 x 3 x 5" / 21.59 x 7.62 x 12.7 cm | | Weight | Cage: 0.6 lb / 0.3 kg
Cage with Handgrip: 0.9 lb / 0.4 kg | | | | Box Dimensions (LxWxH) | 10.8 x 7.25 x 4.65" | - Rod Support Base for GH5 or Sony a7RIII/a7III/a9 Cage
| Compatibility | Zacuto GH5
Sony a7RIII, a7III, and a9 | | Mounting Holes | 1/4"-20 and 3/8"-16 | | Rod Length | 8" / 20.3 cm | | Weight | Not specified by the manufacturer | | | | Box Dimensions (LxWxH) | 9.4 x 4.4 x 2.7" |
