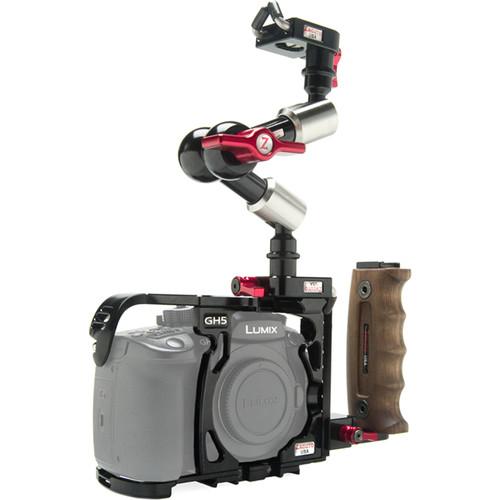

Zacuto GH5 Cage Bundle 4 for

User Manual for Zacuto GH5 Cage Bundle 4 for GH5 and GH5S

• Product category: DSLR Video Supports & Rigs Zacuto
• Brand: Zacuto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zacuto DSLR Video Supports & Rigs

Product description

• GH5 Cage for GH5 and GH5S Zacuto touts their GH5 Cage for GH5 and GH5S as a "no-cage" cage, although it provides protection and support for accessories via 1/4"-20 threaded mounting holes and otherwise meets the criteria for what people generally refer to as a cage. Lightweight, but maintaining the robust build quality Zacuto is known for, the cage features anodized aluminum construction with a front plate, the accessory mounting holes, and a removable handgrip on the camera left side. The cage is form-fitting and is designed to use your camera's neck strap eyelets, in conjunction with the 1/4"-20 mounting screw, to keep your camera secure.

  The design of the cage allows access to all the camera's functions, battery, and SD card compartments, as well as leaving your camera's hot shoe unobstructed. In addition, the design permits you to grasp your camera with your right hand as if the cage were not there, while the included strap keeps your hand snug against the camera. The top plate incorporates numerous 1/4"-20 threaded mounting holes, with the cage itself featuring a total of 46. The bottom of the cage is machined into a dovetail compatible with an optional VCT Pro or VCT Pro Dock, but it also features two 1/4"-20 and one 3/8"-16 threaded mounting holes for mounting a tripod plate. An optional top handle and Metabones support expand the functionality of the cage.
  Built-In
  • • Anodized aluminum construction
    • 46 total 1/4"-20 threaded accessory mounting holes
    • Built-in Z-Rail for top handle (or other accessory) mounting
    • And included HDMI "pincher" attaches directly to your camera
    • Access to the battery and SD card compartments, all the camera's knobs and functions, and the camera's hot shoe is maintained
    • The wood handgrip incorporates a cold shoe, and mounts to the cage via a Z-Rail
  Optional
  • • A Metabones adapter support that attaches directly to the cage and not to rods is available
    • A 15mm LWS rod support base is available
    • A top handle with cold shoe is available
• ZARM-S3 Zamerican Articulating Arm V3 Small Version 6" The Zacuto ZARM-S3 V3 Small Version 6" is an articulating arm for accessories. This arm works with Zacuto kits to offer adjustable equipment installation on camera. This arm is made with chrome balls, aluminum ends and stainless steel for quality construction and operation.
• Z-ZMCR Zicro Micro Mount The Zacuto Z-ZMCR Zicro Micro Mount is a single 15mm rod clamp that attaches to any device with a 1/4"-20 threaded mounting hole and provides you a way to mount your device on to a 15mm rod. Once mounted your device can be quickly clamped to the end of an optional 15mm rod or an articulating arm with a 15mm rod end. The Zicro Micro is essentially a small platform that incorporates a 15mm rod clamp and a captive 1/4"-20 tie-down screw that allows you to adjust the position of your device on the Zicro Micro for a snug fit.

  You can mount devices with a 3/8"-16 threaded hole by using an optional 3/8"-16 to 1/4"-20 adapter. The rod clamp features a spring-loaded locking lever with a small footprint allowing the mount to be used in tight spaces. Two retaining claws screw into the side of the mount, allowing you to position your device against the claws preventing it from spinning on the base.
  • The Zicro Micro allows you to slide accessories with a 1/4"-20 threaded mounting hole onto a 15mm support rod, which allows you to quickly mount/dismount/reposition your accessory onto an optional 15mm rod.
  • The 1/4"-20 tie-down screw is captive in the Zicro Micro platform and features a small amount of horizontal adjustment, which may allow you to snug a device against the two rubber-tipped catch hooks.
  • The rubber-tipped catch hooks are designed to hold your device on the unit and prevent it from twisting on the plate. The catch hooks can be threaded tighter into the plate or un-threaded for more room for your device. If the catch hooks interfere with your device, you can remove the catch hooks from the plate.
  • The spring-loaded locking lever is used to tighten the integrated rod clamp. When working in tight spaces the spring-loaded design allows you to tighten or loosen the clamp without being able to turn the lever fully.

• Hand Strap

• Side Handle

• Limited Lifetime Warranty

• Articulating Arm

• Limited Lifetime Warranty

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• GH5 Cage for GH5 and GH5S

  Material of Construction	Anodized aluminum
  Accessory Mounting	46 x 1/4"-20 threaded holes
  Dimensions	Cage: 6 x 3 x 4.5" / 15.24 x 7.62 x 11.43 cm Cage with Handgrip: 8.5 x 3 x 5" / 21.59 x 7.62 x 12.7 cm
  Weight	Cage: 0.6 lb / 0.3 kg Cage with Handgrip: 0.9 lb / 0.4 kg

  Box Dimensions (LxWxH)	10.8 x 7.25 x 4.65"

• ZARM-S3 Zamerican Articulating Arm V3 Small Version 6"

  Box Dimensions (LxWxH)	6.0 x 3.0 x 0.2"

• Z-ZMCR Zicro Micro Mount

  Dimensions	2.5 x 1.25 x 1" / 63.5 x 31.75 x 25.4 mm
  Weight	1.2 oz / 34 g

  Box Dimensions (LxWxH)	5.0 x 2.5 x 0.25"
