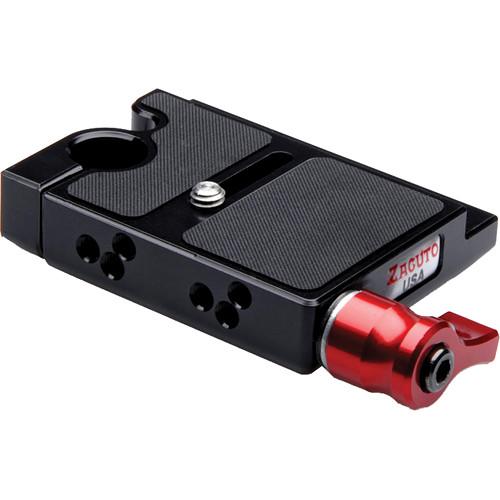

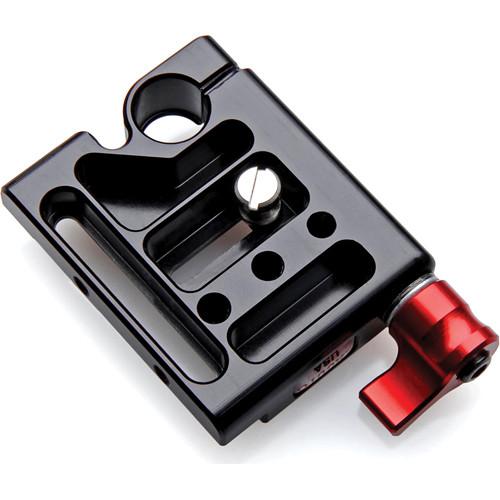

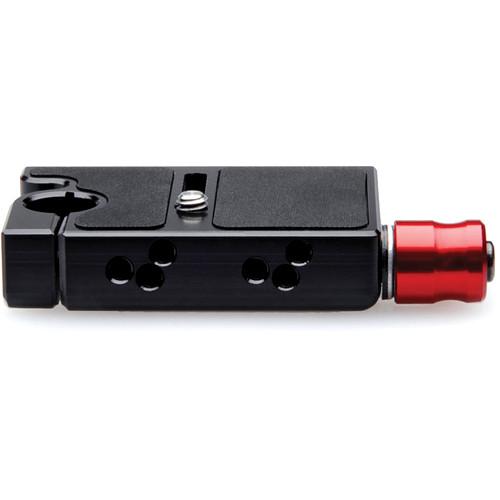

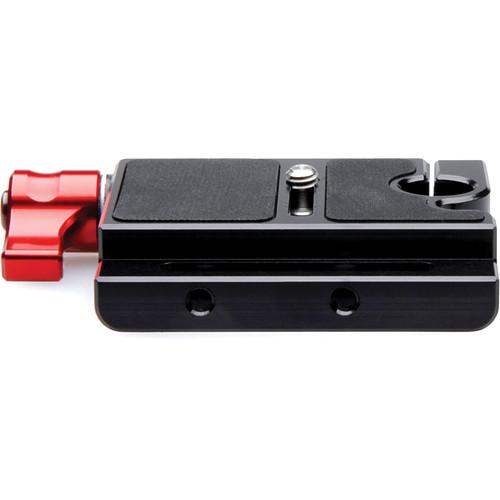

Product description The Zacuto Gorilla Plate V2 is a small camera mounting plate for small DSLR and mirrorless cameras. The plate provides mounting points for available Z-Finder mounting frames allowing you to attach a Zacuto Z-Finder to a camera such as the Panasonic GH3. Additional frame options allows the Z-Finder to be attached to a variety of DSLR cameras. The Gorilla plate features a rubberized top to provide good grip and prevent the camera from twisting on the plate. The 1/4"-20 camera mounting screw is captive, so you don't have to worry about it falling out when you remove the camera.
The Gorilla Plate V2 also features three 1/4"-20 threaded mounting holes for attaching it to a tripod or QR plate. The tripod mounting holes are off center, and if you need a centered tripod mounting hole, for use with some support rigs and matteboxes, you will need to purchase an available Zacuto Gorilla Plate Adapter. The Gorilla Plate V2 incorporates a vertical 15mm diameter rod port that can be used to clamp onto a 15mm rod, for use with various available camera support systems that feature a 15mm diameter vertical camera support rod. The clamping lever is ratcheting style, so you can fully tighten or loosen the clamp even when you can't completely rotate the knob. - The camera plate is made from anodized aluminum so that it is lightweight and corrosion resistant.
- The rubberized top surface of the plate provides a a good grip to help prevent the camera from rotating while mounted to the Gorilla Plate.
- The Gorilla Plate V2 allows you to mount an available Z-Finder to DSLR and other small cameras by providing attachment holes for interchangeable Z-Finder Frames.
- The 15mm rod port allows you to mount the Gorilla Plate V2 to available camera support systems that use a 15mm vertical rod for the camera riser, such as the Zacuto Striker and Target Shooter.
UPC: 741459185916 In the Box Zacuto Gorilla Plate V2 1/4"-20 Captive Camera Tie Down Screw Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto Gorilla Plate V2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZacuto Z-GRPV2 Specs | Material of Construction | Anodized aluminum
Rubberized top plate | | Camera Mounting Screw | 1 x Captive 1/4"-20 Screw | | Tripod Mounting Thread | 3 x 1/4"-20 threaded mounting holes
1 x Slot for available Gorilla Plate Mount Adapter | | Accessory Mounting | 2 x 1/4"-20 mounting holes for attaching an available Z-Finder Mounting Frame Slide Kit, for attaching oprional Z-Finder Frames | | Dimensions (L x W x D) | 3 x 2.25 x 0.75" (7.6 x 5.7 x 1.9 cm)
Note: not including the QR lever clamp | | Weight | 5 oz (141.8 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 5.0 x 2.6 x 0.8" |
