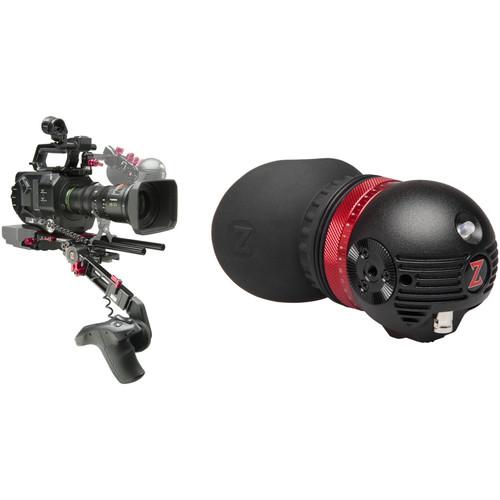

Product description The Zacuto Gratical Eye Bundle for Sony FS7 offers sharp, accurate viewing, and comfortable handheld operating with your Sony PXW-FS7 camera. This production-ready shoulder rig includes the Gratical Eye OLED EVF, the Axis EVF mount, the VCT Pro baseplate, and the FS7 Zgrip Trigger handgrip extension. The high resolution Gratical Eye EVF features a single 3G-SDI input, built-in diopters, and an anti-fog coating. This rig places its central balance where the lens mounts to the camera - relocating focus, monitoring, and camera controls forward to create an evenly distributed, more comfortable handheld configuration. - Zacuto Sony FS7 Recoil Pro with VCT Pro Baseplate The Zacuto Sony FS7 Recoil Pro is a shoulder-mounted rig designed to provide optimal balance when using the Sony PXW-FS7 digital cinema camera. The EVF Recoil includes the VCT Pro baseplate, the Zgrip Trigger handgrip relocator, and the Axis Mini for FS7. The Sony LCD display or an optional EVF can be mounted to the Axis Mini EVF mount. This rig positions the center of balance where the lens mounts to the camera and relocates focus, monitoring, and camera controls forward, creating an evenly distributed, more comfortable handheld configuration. It also relocates your FS7's original Sony handgrip to a more ergonomic operating position. UPC: 741459186418
- Zacuto Gratical Eye Micro OLED EVF With the Gratical Eye, Zacuto takes the highly regarded 0.61", 1280 x 1024 micro OLED panel found in their Gratical HD and packs into an EVF that weighs just 14 oz and fits into the palm of your hand. In order to keep the EVF small and compact, it features a round design and it equipped with only a single 3G-SDI input that supports up to 1080p60 video, a 2-pin LEMO power connector, and a USB port for firmware updates. Not content at being just a professional-grade EVF that produces natural looking images with a 10,000:1 contrast ratio, the Gratical Eye is equipped with a FPGA dual core processor to support the full set of monitoring and image analysis features found on the larger Gratical HD, including LUT support, vectorscope and waveform displays, and peaking, which are controlled using a joystick-style button on the back of the unit. With its compact size and full feature set, the Gratical Eye is an EVF ideally suited for use with professional SDI cameras and rigs using external power solutions.
- Features
-
- 0.61", 1280 x 1024 micro OLED display with 10,000:1 contrast ratio
- 3G-SDI input (optional converter for HDMI)
- Supports resolutions up to 1080p and frame rates up to 60 fps
- 2-Pin LEMO power input
- 14 hours of power when used with a separately available 75Wh battery
- Outboard tally light
- Proximity screen saver sensor to conserve power (7 second motion detector screen saver and auto shut off after 1 hour of being idle)
- Rosette with 1/4"-20 thread on each side for mounting
- -1 to +4 adjustable diopter range
- USB port for firmware updates
- Monitoring & Image Analysis Tools
-
- Custom scaling/user presets
- RGB, saturation, brightness, and contrast adjustments
- Zebra with customer wide, color, and thresholds
- Vectorscope
- Waveform
- Histogram (RGB, Luma)
- Audio meters
- LUT import and creation
- Peaking (multiple color options)
- False color
- Frame store with transparency
- Test pattern (color bars and Macbeth)
UPC: 741459186258 In the Box - Sony FS7 Recoil Pro with VCT Pro Baseplate
- VCT Pro Baseplate
- Axis Mini for Sony FS7
- Zgrip Trigger for Sony FS7
- Gratical Eye Micro OLED EVF
Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto Gratical Eye Bundle for Sony FS7 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Zacuto VCT Pro Baseplate
| Mount Types | VCT14-compatible V-wedge
15 mm LWS rod ports in front and back
1/4"-20 and 3/8"-16 tripod mount holes
1/4"-20 and 3/8"-16 camera screws included
6.5" (16.5 cm) 15mm rods included
ARRI M6 rosette
Three 1/4"-20 threaded holes for accessories | | Dimensions | 14.25 x 4.25 x 2" (36.2 x 10.8 x 5 cm) (with included 6.5"/16.5 cm rods) | | Weight | 2.1 lb (0.96 kg) | | | | Box Dimensions (LxWxH) | 10.75 x 7.4 x 3.45" | - Zacuto Axis Mini for Sony FS7
| | | Box Dimensions (LxWxH) | 6.2 x 4.1 x 1.2" | - Zacuto Zgrip Trigger for Sony FS7
| Length | 11.5" (29 cm) | | Adjustable Length | 6" (15 cm) | | Rotation Range | 360° | | Rosette Type | ARRI (M6) | | | | Box Dimensions (LxWxH) | 6.0 x 4.3 x 2.5" | - Zacuto Gratical Eye Micro OLED EVF
| | | Type | OLED | | Size | 0.61" / 15.1 mm | | Resolution | Full Display: 1280 x 1024
16x9 Area: 1280 x 720 | | Total Pixels | 5.4 million | | Pixel Density | 2687.21 PPI | | Contrast Ratio | 10,000:1 | | Refresh Rate | 60 Hz | | Color Depth | RGB: 24-bit (16.7 million colors) | | Luminance | 120 to 250 cd/m2 | | Frame Rates Supported | 23.98p
23.98PsF
24p
24PsF
25p
25PsF
29.97p
29.97PsF
30p
30PsF
50i
50p
59.94i
60i
60p | | | | Video Input | 3G-SDI (resolution up to 1080p60) | | Power Input | 2-pin LEMO (accepts either polarity) | | Firmware Updates | USB (Type A) | | Mounting Options | 2 x Rosettes with 1/4"-20 screw thread | | | | Power Requirements | 12 to 16.8 VDC | | Weight | 14 oz (397 g) | | | | Box Dimensions (LxWxH) | 7.6 x 4.5 x 3.8" |
