Product description

• Zacuto Gratical Eye Micro OLED EVF With the Gratical Eye, Zacuto takes the highly regarded 0.61", 1280 x 1024 micro OLED panel found in their Gratical HD and packs into an EVF that weighs just 14 oz and fits into the palm of your hand. In order to keep the EVF small and compact, it features a round design and it equipped with only a single 3G-SDI input that supports up to 1080p60 video, a 2-pin LEMO power connector, and a USB port for firmware updates. Not content at being just a professional-grade EVF that produces natural looking images with a 10,000:1 contrast ratio, the Gratical Eye is equipped with a FPGA dual core processor to support the full set of monitoring and image analysis features found on the larger Gratical HD, including LUT support, vectorscope and waveform displays, and peaking, which are controlled using a joystick-style button on the back of the unit. With its compact size and full feature set, the Gratical Eye is an EVF ideally suited for use with professional SDI cameras and rigs using external power solutions.
  Features
  • • 0.61", 1280 x 1024 micro OLED display with 10,000:1 contrast ratio
    • 3G-SDI input (optional converter for HDMI)
    • Supports resolutions up to 1080p and frame rates up to 60 fps
    • 2-Pin LEMO power input
    • 14 hours of power when used with a separately available 75Wh battery
    • Outboard tally light
    • Proximity screen saver sensor to conserve power (7 second motion detector screen saver and auto shut off after 1 hour of being idle)
    • Rosette with 1/4"-20 thread on each side for mounting
    • -1 to +4 adjustable diopter range
    • USB port for firmware updates
  Monitoring & Image Analysis Tools
  • • Custom scaling/user presets
    • RGB, saturation, brightness, and contrast adjustments
    • Zebra with customer wide, color, and thresholds
    • Vectorscope
    • Waveform
    • Histogram (RGB, Luma)
    • Audio meters
    • LUT import and creation
    • Peaking (multiple color options)
    • False color
    • Frame store with transparency
    • Test pattern (color bars and Macbeth)
  UPC: 741459186258

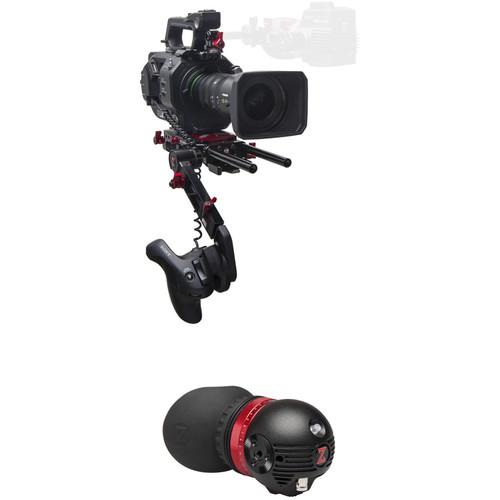

• Sony FS7 II Recoil Pro V2 xtcqwreucafsrwdxxtvbea

• Gratical Eye Micro OLED EVF

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Zacuto Gratical Eye Micro OLED EVF

  Type	OLED
  Size	0.61" / 15.1 mm
  Resolution	Full Display: 1280 x 1024 16x9 Area: 1280 x 720
  Total Pixels	5.4 million
  Pixel Density	2687.21 PPI
  Contrast Ratio	10,000:1
  Refresh Rate	60 Hz
  Color Depth	RGB: 24-bit (16.7 million colors)
  Luminance	120 to 250 cd/m2
  Frame Rates Supported	23.98p 23.98PsF 24p 24PsF 25p 25PsF 29.97p 29.97PsF 30p 30PsF 50i 50p 59.94i 60i 60p

  Video Input	3G-SDI (resolution up to 1080p60)
  Power Input	2-pin LEMO (accepts either polarity)
  Firmware Updates	USB (Type A)
  Mounting Options	2 x Rosettes with 1/4"-20 screw thread

  Power Requirements	12 to 16.8 VDC
  Weight	14 oz (397 g)

  Box Dimensions (LxWxH)	7.6 x 4.5 x 3.8"
