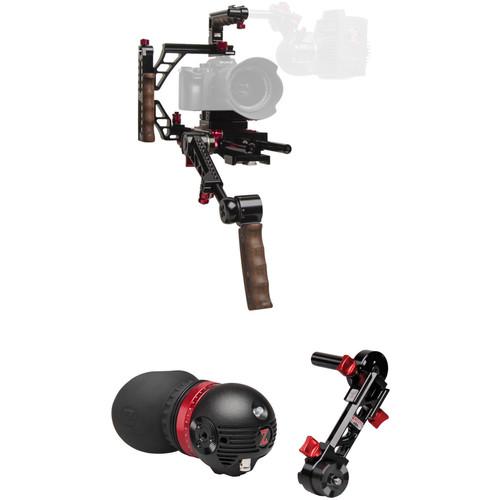

User Manual for Zacuto Gratical Eye Indie Recoil Pro Bundle Click to enlarge the picture
Contents of the user manual for the Zacuto Gratical Eye Indie Recoil Pro
- Product category: DSLR Video Supports & Rigs Zacuto
- Brand: Zacuto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zacuto DSLR Video Supports & Rigs
|
User manual for the Zacuto Gratical Eye Indie Recoil Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zacuto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zacuto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zacuto product will considerably shorten its lifespan!
|
Product description B&H has put together the Gratical Eye Indie Recoil Pro Bundle to provide a rotating wooden handgrip for secure shoulder-mounted operation, and the Gratical Eye Micro OLED EVF which offers pro-style monitoring for DSLR, mirrorless, and a wide variety of other cameras. This shoulder rig follows in the Zacuto Recoil Rig philosophy of placing the balance point at the shoulder, which places the camera behind the shoulder and the focus, monitoring, and camera controls forward from the shoulder.
This rig also includes the Axis Mini EVF mount which connects your Gratical Eye to the rig, the QR Riser with Gorilla Plate and Tripod Dock to raise your camera to the level of your matte box, the VCT Pro baseplate, the Half Cage Rail with 5" Z-Rail for VCT Pro, and the Top Handle with Z-Rail and cold shoe mount for mounting accessories. - Zacuto Indie Recoil Pro V2 The Zacuto Indie Recoil Pro V2 is a shoulder rig designed to support a wide variety of cameras and is specifically assembled for DSLR and mirrorless owners. It is comprised of the Zacuto VCT Pro Baseplate, QR Riser, Wooden Trigger Grip, Half Cage Rail, and Axis Mini EVF Mount. This shoulder rig follows in the Zacuto Recoil Rig philosophy of placing the balance point at the shoulder, which places the camera behind the shoulder and the focus, monitoring, and camera controls forward from the shoulder.
The VCT Pro plate supports the camera and features 10" of forward/back balance adjustment, and it includes 15mm rods and rod clamps for rod-mounted accessories. The VCT Pro also enables your rig to go from your shoulder to tripod and back without removing accessories. The QR Riser allows you to raise your DSLR or mirrorless camera to the proper height to the use rod-mounted accessories. The Wooden Trigger Grip features an ARRI-standard rosette for mounting and levers that allow you to easily adjust the length and angle of the arm and the rotation of the wooden handgrip. The halfcage attaches to the VCT Pro to provide protection and accessory mounting points to your shoulder rig. It features a wooden handgrip, and a top Z-Rail which allows you to mount the included Top Handle with built-in Z-Rail and Cold Shoe Mount for increased ergonomics and accessory mounting. UPC: 719104356691 - Zacuto Gratical Eye Micro OLED EVF With the Gratical Eye, Zacuto takes the highly regarded 0.61", 1280 x 1024 micro OLED panel found in their Gratical HD and packs into an EVF that weighs just 14 oz and fits into the palm of your hand. In order to keep the EVF small and compact, it features a round design and it equipped with only a single 3G-SDI input that supports up to 1080p60 video, a 2-pin LEMO power connector, and a USB port for firmware updates. Not content at being just a professional-grade EVF that produces natural looking images with a 10,000:1 contrast ratio, the Gratical Eye is equipped with a FPGA dual core processor to support the full set of monitoring and image analysis features found on the larger Gratical HD, including LUT support, vectorscope and waveform displays, and peaking, which are controlled using a joystick-style button on the back of the unit. With its compact size and full feature set, the Gratical Eye is an EVF ideally suited for use with professional SDI cameras and rigs using external power solutions.
- Features
-
- 0.61", 1280 x 1024 micro OLED display with 10,000:1 contrast ratio
- 3G-SDI input (optional converter for HDMI)
- Supports resolutions up to 1080p and frame rates up to 60 fps
- 2-Pin LEMO power input
- 14 hours of power when used with a separately available 75Wh battery
- Outboard tally light
- Proximity screen saver sensor to conserve power (7 second motion detector screen saver and auto shut off after 1 hour of being idle)
- Rosette with 1/4"-20 thread on each side for mounting
- -1 to +4 adjustable diopter range
- USB port for firmware updates
- Monitoring & Image Analysis Tools
-
- Custom scaling/user presets
- RGB, saturation, brightness, and contrast adjustments
- Zebra with customer wide, color, and thresholds
- Vectorscope
- Waveform
- Histogram (RGB, Luma)
- Audio meters
- LUT import and creation
- Peaking (multiple color options)
- False color
- Frame store with transparency
- Test pattern (color bars and Macbeth)
UPC: 741459186258 - Zacuto Axis Mini EVF Mount A versatile and adjustable means for attaching a rosette-mounted EVF to your camera, the Zacuto Axis Mini is an ENG-style mount that is designed to attach to the top of your camera setup and provide you with ample room for adjusting focus or working with large lenses. It attaches directly to rigs fitted with a 15mm rod port and then connects with EVFs, such as the Gratical HD, using a secure 1/4"-20 rosette mount, or can also be used with 1/4"-20 screw mount EVFs with the separate Quad Rail for mounting.
Once attached, the Axis Mini's adjustable design utilizes four main pivoting points, which can spin a full 360° and are controlled using independent tension levers. With all levers unlocked, you can freely position the EVF at will using a single hand, or specific sections can be tightened down for fine-tuned adjustments on a single axis. Additionally, the articulation can be configured to work seamlessly with both shoulder-mounted rigs as well as for tripod-based shooting. In the Box - Indie Recoil Pro V2 tfdfqruvsfawtvstxqvcvw
- VCT Pro Baseplate
- QR Riser
- Wooden Trigger Grip
- Halfcage Rail for Zacuto VCT Universal Baseplate
- Top Handle with Z-Rail and Cold Shoe Mount
- Gratical Eye Micro OLED EVF tfdfqruvsfawtvstxqvcvw
Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto Gratical Eye Indie Recoil Pro Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Zacuto VCT Pro Baseplate
| Mount Types | VCT14-compatible V-wedge
15 mm LWS rod ports in front and back
1/4"-20 and 3/8"-16 tripod mount holes
1/4"-20 and 3/8"-16 camera screws included
6.5" (16.5 cm) 15mm rods included
ARRI M6 rosette
Three 1/4"-20 threaded holes for accessories | | Dimensions | 14.25 x 4.25 x 2" (36.2 x 10.8 x 5 cm) (with included 6.5"/16.5 cm rods) | | Weight | 2.1 lb (0.96 kg) | | | | Box Dimensions (LxWxH) | 10.75 x 7.4 x 3.45" | - Zacuto QR Riser
| | | Box Dimensions (LxWxH) | 4.1 x 2.8 x 1.0" | - Zacuto Wooden Trigger Grip
| | | Box Dimensions (LxWxH) | 7.9 x 4.3 x 1.0" | - Zacuto Halfcage Rail for Zacuto VCT Universal Baseplate
| Dimensions | 3 x 7 x 7" / 76 x 178 x 178 mm (minimum height adjustment)
3 x 7 x 10.5" / 76 x 178 x 267 mm (maximum height adjustment) | | Weight | 1.0 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 9.2 x 6.75 x 6.55" | - Zacuto Top Handle with Z-Rail and Cold Shoe Mount
| Material of Construction | Anodized aluminum
Maple | | Mounting | Z-Rail clamp | | Accessory Mounting | Z-Rail
1 x Cold shoe
8 x 1/4"-20
1 x 3/8"-16 | | Dimensions | 0.83 x 5.15 x 2.49" / 2.11 x 13.08 x 6.32 cm | | Weight | 4.8 oz / 136.1 g | | | | Box Dimensions (LxWxH) | 5.1 x 4.4 x 1.3" | - Zacuto Gratical Eye Micro OLED EVF
| | | Type | OLED | | Size | 0.61" / 15.1 mm | | Resolution | Full Display: 1280 x 1024
16x9 Area: 1280 x 720 | | Total Pixels | 5.4 million | | Pixel Density | 2687.21 PPI | | Contrast Ratio | 10,000:1 | | Refresh Rate | 60 Hz | | Color Depth | RGB: 24-bit (16.7 million colors) | | Luminance | 120 to 250 cd/m2 | | Frame Rates Supported | 23.98p
23.98PsF
24p
24PsF
25p
25PsF
29.97p
29.97PsF
30p
30PsF
50i
50p
59.94i
60i
60p | | | | Video Input | 3G-SDI (resolution up to 1080p60) | | Power Input | 2-pin LEMO (accepts either polarity) | | Firmware Updates | USB (Type A) | | Mounting Options | 2 x Rosettes with 1/4"-20 screw thread | | | | Power Requirements | 12 to 16.8 VDC | | Weight | 14 oz (397 g) | | | | Box Dimensions (LxWxH) | 7.6 x 4.5 x 3.8" | - Zacuto Axis Mini EVF Mount
| | | Box Dimensions (LxWxH) | 6.0 x 3.5 x 1.0" |
