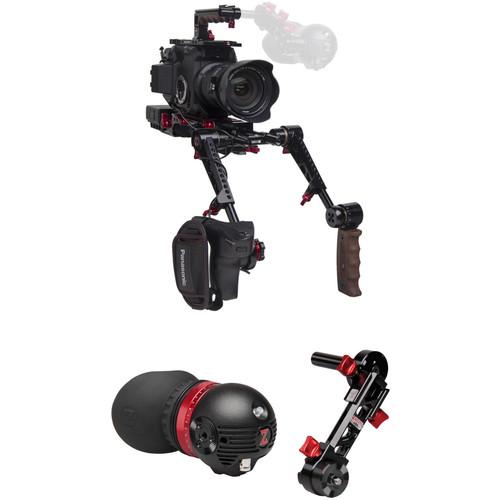

User Manual for Zacuto Gratical Eye Recoil Pro with Dual Grips Bundle for EVA1

• Product category: Camcorder Supports & Rigs Zacuto
• Brand: Zacuto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zacuto Camcorder Supports & Rigs

Product description

• Zacuto EVA1 EVF Recoil Pro with Dual Trigger Grips The Zacuto EVA1 EVF Recoil Pro V2 is a shoulder rig designed specifically for the Panasonic EVA1. It is comprised of the Zacuto VCT Pro Baseplate, EVA1 Dual Trigger Grip, Top Handle with 15mm Rod Lock, and EVA1 Top Plate. This shoulder rig follows in the Zacuto Recoil Rig philosophy of placing the balance point at the shoulder, which places the camera behind the shoulder and the focus, monitoring, and camera controls forward from the shoulder.

  The VCT Pro plate supports the camera and features 10" of forward/back balance adjustment, and it includes 15mm rods and rod clamps for rod-mounted accessories. The VCT Pro also enables your rig to go from your shoulder to tripod and back without removing accessories. The Dual Trigger Grip features a left and right articulating arm and relocates the EVA1's handgrip to the right articulating arm so you can use all the grips functions while comfortably supporting the rig on your shoulder. The EVA1 Top Plate mounts on your camera and provides the capability to attach accessories to your camera without stressing your camera's body. The included Top Handle and Rod Lock provide a contoured wood handle and 15mm rod clamp that you can mount to the Top Plate for improved ergonomics and LCD mounting options. UPC: 719104356851
• Zacuto Gratical Eye Micro OLED EVF With the Gratical Eye, Zacuto takes the highly regarded 0.61", 1280 x 1024 micro OLED panel found in their Gratical HD and packs into an EVF that weighs just 14 oz and fits into the palm of your hand. In order to keep the EVF small and compact, it features a round design and it equipped with only a single 3G-SDI input that supports up to 1080p60 video, a 2-pin LEMO power connector, and a USB port for firmware updates. Not content at being just a professional-grade EVF that produces natural looking images with a 10,000:1 contrast ratio, the Gratical Eye is equipped with a FPGA dual core processor to support the full set of monitoring and image analysis features found on the larger Gratical HD, including LUT support, vectorscope and waveform displays, and peaking, which are controlled using a joystick-style button on the back of the unit. With its compact size and full feature set, the Gratical Eye is an EVF ideally suited for use with professional SDI cameras and rigs using external power solutions.
  Features
  • • 0.61", 1280 x 1024 micro OLED display with 10,000:1 contrast ratio
    • 3G-SDI input (optional converter for HDMI)
    • Supports resolutions up to 1080p and frame rates up to 60 fps
    • 2-Pin LEMO power input
    • 14 hours of power when used with a separately available 75Wh battery
    • Outboard tally light
    • Proximity screen saver sensor to conserve power (7 second motion detector screen saver and auto shut off after 1 hour of being idle)
    • Rosette with 1/4"-20 thread on each side for mounting
    • -1 to +4 adjustable diopter range
    • USB port for firmware updates
  Monitoring & Image Analysis Tools
  • • Custom scaling/user presets
    • RGB, saturation, brightness, and contrast adjustments
    • Zebra with customer wide, color, and thresholds
    • Vectorscope
    • Waveform
    • Histogram (RGB, Luma)
    • Audio meters
    • LUT import and creation
    • Peaking (multiple color options)
    • False color
    • Frame store with transparency
    • Test pattern (color bars and Macbeth)
  UPC: 741459186258
• Zacuto Axis Mini EVF Mount A versatile and adjustable means for attaching a rosette-mounted EVF to your camera, the Zacuto Axis Mini is an ENG-style mount that is designed to attach to the top of your camera setup and provide you with ample room for adjusting focus or working with large lenses. It attaches directly to rigs fitted with a 15mm rod port and then connects with EVFs, such as the Gratical HD, using a secure 1/4"-20 rosette mount, or can also be used with 1/4"-20 screw mount EVFs with the separate Quad Rail for mounting.

  Once attached, the Axis Mini's adjustable design utilizes four main pivoting points, which can spin a full 360° and are controlled using independent tension levers. With all levers unlocked, you can freely position the EVF at will using a single hand, or specific sections can be tightened down for fine-tuned adjustments on a single axis. Additionally, the articulation can be configured to work seamlessly with both shoulder-mounted rigs as well as for tripod-based shooting.

• EVA1 EVF Recoil Pro with Dual Trigger Grips sffstesybvzftfdwcwrbdxradd
• VCT Pro Baseplate
• Panasonic EVA1 Dual Trigger Grips
• Top Handle with Z-Rail and Cold Shoe Mount
• 15mm Rod Lock for Top Handle
• Top Plate with Z-Rail for Panasonic EVA1 Camera

• Gratical Eye Micro OLED EVF sffstesybvzftfdwcwrbdxradd

• Axis Mini EVF Mount

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Zacuto VCT Pro Baseplate

  Mount Types	VCT14-compatible V-wedge 15 mm LWS rod ports in front and back 1/4"-20 and 3/8"-16 tripod mount holes 1/4"-20 and 3/8"-16 camera screws included 6.5" (16.5 cm) 15mm rods included ARRI M6 rosette Three 1/4"-20 threaded holes for accessories
  Dimensions	14.25 x 4.25 x 2" (36.2 x 10.8 x 5 cm) (with included 6.5"/16.5 cm rods)
  Weight	2.1 lb (0.96 kg)

  Box Dimensions (LxWxH)	10.75 x 7.4 x 3.45"

• Zacuto Panasonic EVA1 Dual Trigger Grips

  Material of Construction

  Aluminum, wood

  Box Dimensions (LxWxH)	8.6 x 6.0 x 2.2"

• Zacuto Top Handle with Z-Rail and Cold Shoe Mount

  Material of Construction	Anodized aluminum Maple
  Mounting	Z-Rail clamp
  Accessory Mounting	Z-Rail 1 x Cold shoe 8 x 1/4"-20 1 x 3/8"-16
  Dimensions	0.83 x 5.15 x 2.49" / 2.11 x 13.08 x 6.32 cm
  Weight	4.8 oz / 136.1 g

  Box Dimensions (LxWxH)	5.1 x 4.4 x 1.3"

• Zacuto 15mm Rod Lock for Top Handle

  Dimensions	0.83 x 2.22 x 1.5" / 2.11 x 5.64 x 3.81 cm
  Weight	0.75 oz / 21.26 g

  Box Dimensions (LxWxH)	5.0 x 3.0 x 1.0"

• Zacuto Top Plate with Z-Rail for Panasonic EVA1 Camera

  Box Dimensions (LxWxH)	6.4 x 3.3 x 0.9"

• Zacuto Gratical Eye Micro OLED EVF

  Type	OLED
  Size	0.61" / 15.1 mm
  Resolution	Full Display: 1280 x 1024 16x9 Area: 1280 x 720
  Total Pixels	5.4 million
  Pixel Density	2687.21 PPI
  Contrast Ratio	10,000:1
  Refresh Rate	60 Hz
  Color Depth	RGB: 24-bit (16.7 million colors)
  Luminance	120 to 250 cd/m2
  Frame Rates Supported	23.98p 23.98PsF 24p 24PsF 25p 25PsF 29.97p 29.97PsF 30p 30PsF 50i 50p 59.94i 60i 60p

  Video Input	3G-SDI (resolution up to 1080p60)
  Power Input	2-pin LEMO (accepts either polarity)
  Firmware Updates	USB (Type A)
  Mounting Options	2 x Rosettes with 1/4"-20 screw thread

  Power Requirements	12 to 16.8 VDC
  Weight	14 oz (397 g)

  Box Dimensions (LxWxH)	7.6 x 4.5 x 3.8"

• Zacuto Axis Mini EVF Mount

  Box Dimensions (LxWxH)	6.0 x 3.5 x 1.0"
