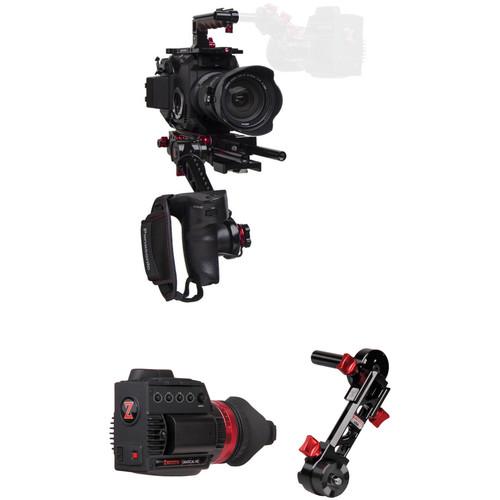

Zacuto Gratical HD Recoil Pro Bundle

User Manual for Zacuto Gratical HD Recoil Pro Bundle for EVA1

• Product category: Camcorder Supports & Rigs Zacuto
• Brand: Zacuto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zacuto Camcorder Supports & Rigs

Product description

• Zacuto EVA1 EVF Recoil Pro V2 The Zacuto EVA1 EVF Recoil Pro V2 is a shoulder rig designed specifically for the Panasonic EVA1. It is comprised of the Zacuto VCT Pro Baseplate, EVA1 Trigger Grip, Top Handle with 15mm Rod Lock, and EVA1 Top Plate. This shoulder rig follows in the Zacuto Recoil Rig philosophy of placing the balance point at the shoulder, which places the camera behind the shoulder and the focus, monitoring, and camera controls forward of the shoulder.

  The VCT Pro plate supports the camera with 10" of forward/back balance adjustment, and includes 15mm rods and rod clamps for rod-mounted accessories. The VCT Pro also enables your rig to go from your shoulder to tripod and back without removing accessories. The Trigger Grip relocates the EVA1's handgrip to an articulating arm, so you can use all the grip's functions while comfortably supporting the rig on your shoulder. The EVA1 Top Plate mounts on your camera and provides the capability to attach accessories to your camera without stressing its body. The included Top Handle and Rod Lock provide a contoured wood handle and 15mm rod clamp that you can mount onto the Top Plate for improved ergonomics and LCD mounting options. UPC: 719104356745
• Zacuto Gratical HD Micro OLED EVF Rising far above the readily available generic EVF or LCD screen with a loupe magnifier attachment, the Zacuto Gratical HD Micro OLED EVF packs more display features and functions than is found in many much larger EVFs and on-camera monitors. At the heart of the EVF is a micro OLED panel about the size of your thumbnail with 5.5 million dots of resolution that produces an image with true blacks and a 10,000:1 contrast ratio, supporting RGB at 24-bits for vivid color rendition. You can choose to display a 720p image within the full resolution display of the OLED and then display the various scopes and signal displays outside of your picture area, which allows you to have an unobstructed view of your image while being able to see a waveform or histogram display of your image.

  The EVF incorporates both SDI and HDMI loop-through inputs/outputs and can cross convert from HDMI to SDI. It also supports peaking, false color, and test pattern generation as well as LUT creation and import. You can also select to view/display audio meters. The unit features four user-programmable buttons for often-used menu selections, and supports multiple frame rates. Zacuto has designed the entire optical path, providing a diopter that is adjustable from -1 to +4. The optical path includes an automatic light trap that can prevent damage to the EVF from accidental exposure to direct sunlight. Incorporating an ARRI-compatible rosette and a 1/4"-20 mounting hole provides a variety of means to mount the EVF to your camera. The EVF powers from a single LP-E6 type battery, and this 1800mAH battery provides approximately four hours of constant run time.

  General Features

  • The 1280 x 1024 resolution of the OLED allows it to display a 1280 x 720 image and various diagnostic displays without needing to overlay the signals over the image. You can adjust the position of your image and displays to what suits you best, or you can also choose to overlay the diagnostic signals on the image.
  • You can create and store LUTS within the EVF and apply individual LUTS to either or both the EVF display and the downstream video.
  • The OLED display and outputs are independent of each other, which means you can display the video signal with one LUT on the EVF and send the video signal with a different LUT to an external monitor. Likewise, you can display the various test signals and diagnostic signals either on both the EVF on a downstream monitor or either one or the other.
  • Weather resistant covers prevent moisture or debris from getting in open ports.
  • You can choose to display audio meters in the EVF.
  • LUTs, test patterns, scope displays, and other display functions can be displayed in the EVF or simultaneously on the downstream video. You can select to have the EVF and the downstream video display different LUTs and/or display functions as well.

  Test Patterns & Diagnostic Signals

  Scopes
  • • The waveform provides an objective evaluation of your video signal. It displays the brightness of your image on an IRE scale, allowing you to see if your image will clip and where your black levels are.
    • The Vectorscope displays the signal on a graph so you can check the phase of your colors. The Vectorscope function also verifies and checks the overall tint and hue of an image.
    • The Historgram view allows you to see where your pixels are distributed in the spectrum of black to white, providing a quick way to see where your exposure values fall. You can choose to display the Histogram as either RGB or Luma.
  False Color
  • The False Color feature provides under/over luminance warning by presenting the image as a series of color values representing exposure.
  Peaking
  • Peaking highlights the sharpest (most in focus) areas of the image with a color outline.
  Zebra
  • Provides a crawling black and white pattern overlaying areas that exceed the brightness levels you select.
  Frame Store
  • You can store frames within the EVF to recall them at a later time. You can also adjust the transparency of the frame store and superimpose it on the current view when you need to align shots.
  Test Pattern Generation
  • The EVF can generate color bars and a Macbeth color chart
  UPC: 741459186128
• Zacuto Axis Mini EVF Mount A versatile and adjustable means for attaching a rosette-mounted EVF to your camera, the Zacuto Axis Mini is an ENG-style mount that is designed to attach to the top of your camera setup and provide you with ample room for adjusting focus or working with large lenses. It attaches directly to rigs fitted with a 15mm rod port and then connects with EVFs, such as the Gratical HD, using a secure 1/4"-20 rosette mount, or can also be used with 1/4"-20 screw mount EVFs with the separate Quad Rail for mounting.

  Once attached, the Axis Mini's adjustable design utilizes four main pivoting points, which can spin a full 360° and are controlled using independent tension levers. With all levers unlocked, you can freely position the EVF at will using a single hand, or specific sections can be tightened down for fine-tuned adjustments on a single axis. Additionally, the articulation can be configured to work seamlessly with both shoulder-mounted rigs as well as for tripod-based shooting.

• EVA1 EVF Recoil Pro V2 tfbwwqcvrwwwrezqsatewcbybuzwuqws
• VCT Pro Baseplate
• Panasonic EVA1 Trigger Grip
• Top Handle with Z-Rail and Cold Shoe Mount
• 15mm Rod Lock for Top Handle
• Top Plate with Z-Rail for Panasonic EVA1 Camera

• Gratical HD Micro OLED EVF

• Axis Mini EVF Mount

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Zacuto VCT Pro Baseplate

  Mount Types	VCT14-compatible V-wedge 15 mm LWS rod ports in front and back 1/4"-20 and 3/8"-16 tripod mount holes 1/4"-20 and 3/8"-16 camera screws included 6.5" (16.5 cm) 15mm rods included ARRI M6 rosette Three 1/4"-20 threaded holes for accessories
  Dimensions	14.25 x 4.25 x 2" (36.2 x 10.8 x 5 cm) (with included 6.5"/16.5 cm rods)
  Weight	2.1 lb (0.96 kg)

  Box Dimensions (LxWxH)	10.75 x 7.4 x 3.45"

• Zacuto Panasonic EVA1 Trigger Grip

  Box Dimensions (LxWxH)	7.0 x 2.3 x 1.9"

• Zacuto Top Handle with Z-Rail and Cold Shoe Mount

  Material of Construction	Anodized aluminum Maple
  Mounting	Z-Rail clamp
  Accessory Mounting	Z-Rail 1 x Cold shoe 8 x 1/4"-20 1 x 3/8"-16
  Dimensions	0.83 x 5.15 x 2.49" / 2.11 x 13.08 x 6.32 cm
  Weight	4.8 oz / 136.1 g

  Box Dimensions (LxWxH)	5.1 x 4.4 x 1.3"

• Zacuto 15mm Rod Lock for Top Handle

  Dimensions	0.83 x 2.22 x 1.5" / 2.11 x 5.64 x 3.81 cm
  Weight	0.75 oz / 21.26 g

  Box Dimensions (LxWxH)	5.0 x 3.0 x 1.0"

• Zacuto Top Plate with Z-Rail for Panasonic EVA1 Camera

  Box Dimensions (LxWxH)	6.4 x 3.3 x 0.9"

• Zacuto Gratical HD Micro OLED EVF

  Display	0.61" / 15.1 mm
  Frame Rate	23.98p 23.98PsF 24p 24PsF 25p 25PsF 29.97PsF 50i 50p 59.94i 60i 60p
  Resolution	Full Display: 1280 x 1024 HD: 1280 x 720
  Contrast Ratio	10,000:1
  Refresh Rate	50/60 Hz
  Color Depth	RGB: 24-bit
  Luminance	120 to 250 nit
  Pixel Density	2687.21 PPI
  Color	16.7 million colors
  Connections	Input HDMI: 1 x HDMI SDI: 1 x BNC Output HDMI: 1 x HDMI SDI: 1 x BNC Upgrades 1 x USB
  Mounting Options	ARRI compatible rosette 1/4"-20

  Box Dimensions (LxWxH)	10.8 x 7.35 x 5.15"

• Zacuto Axis Mini EVF Mount

  Box Dimensions (LxWxH)	6.0 x 3.5 x 1.0"
