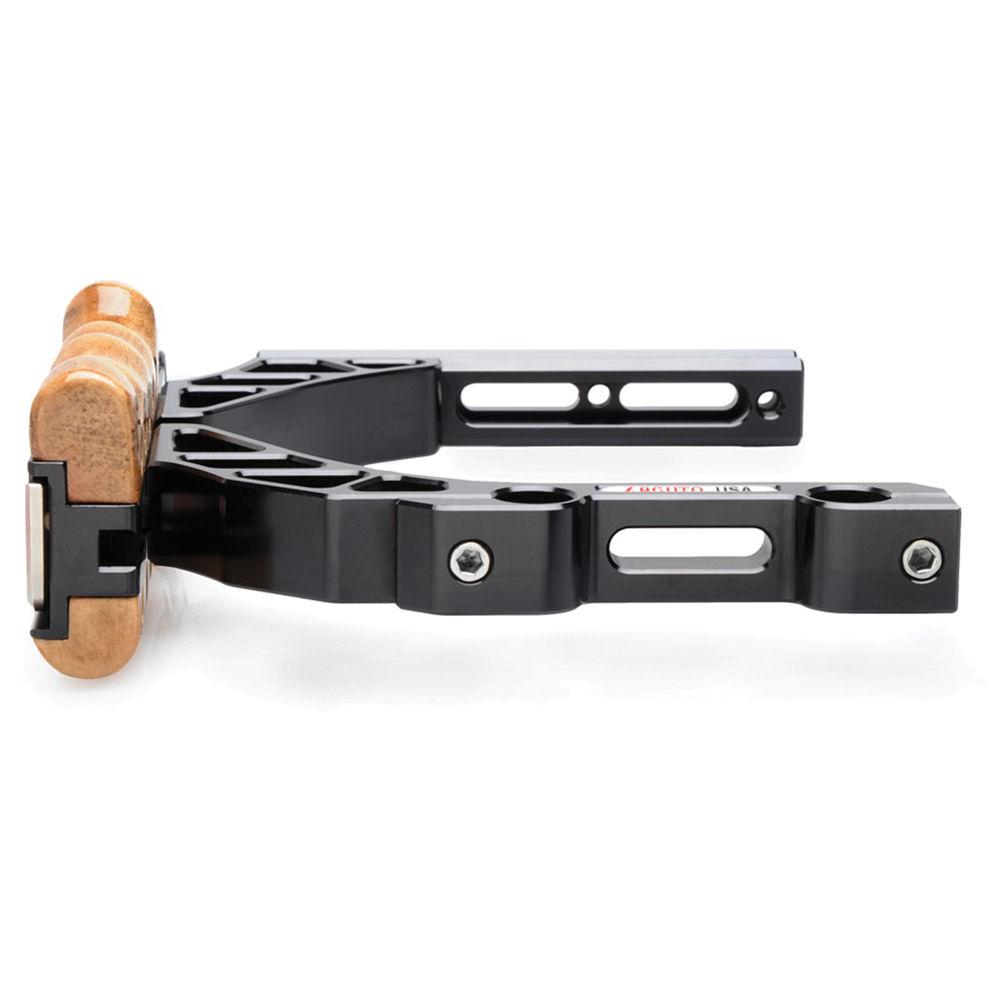

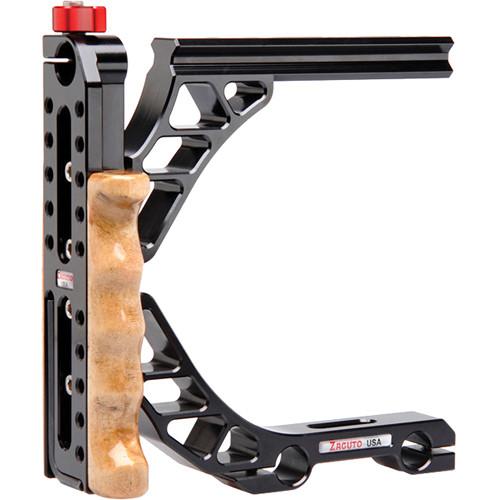

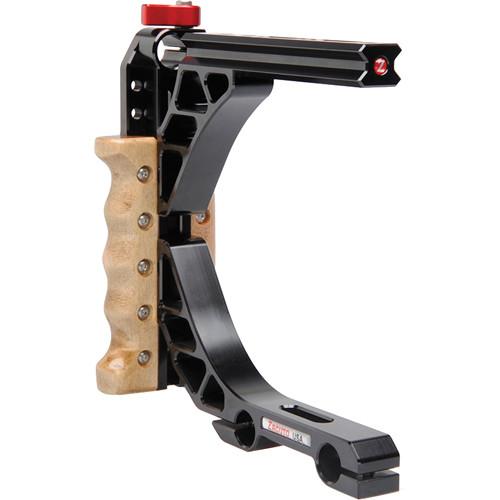

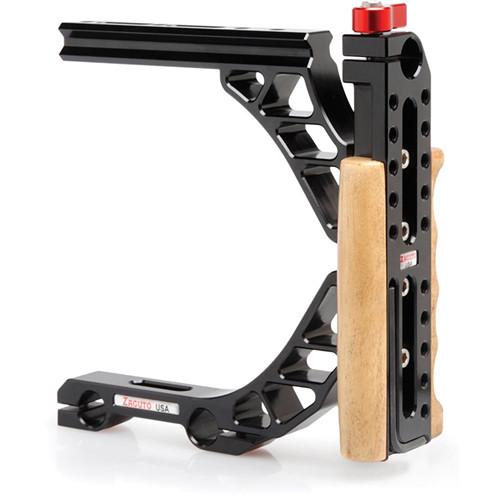

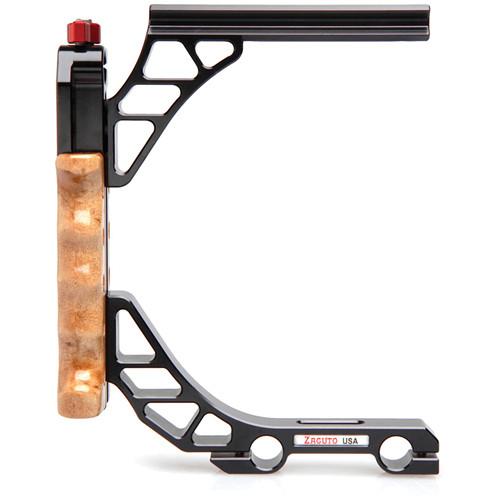

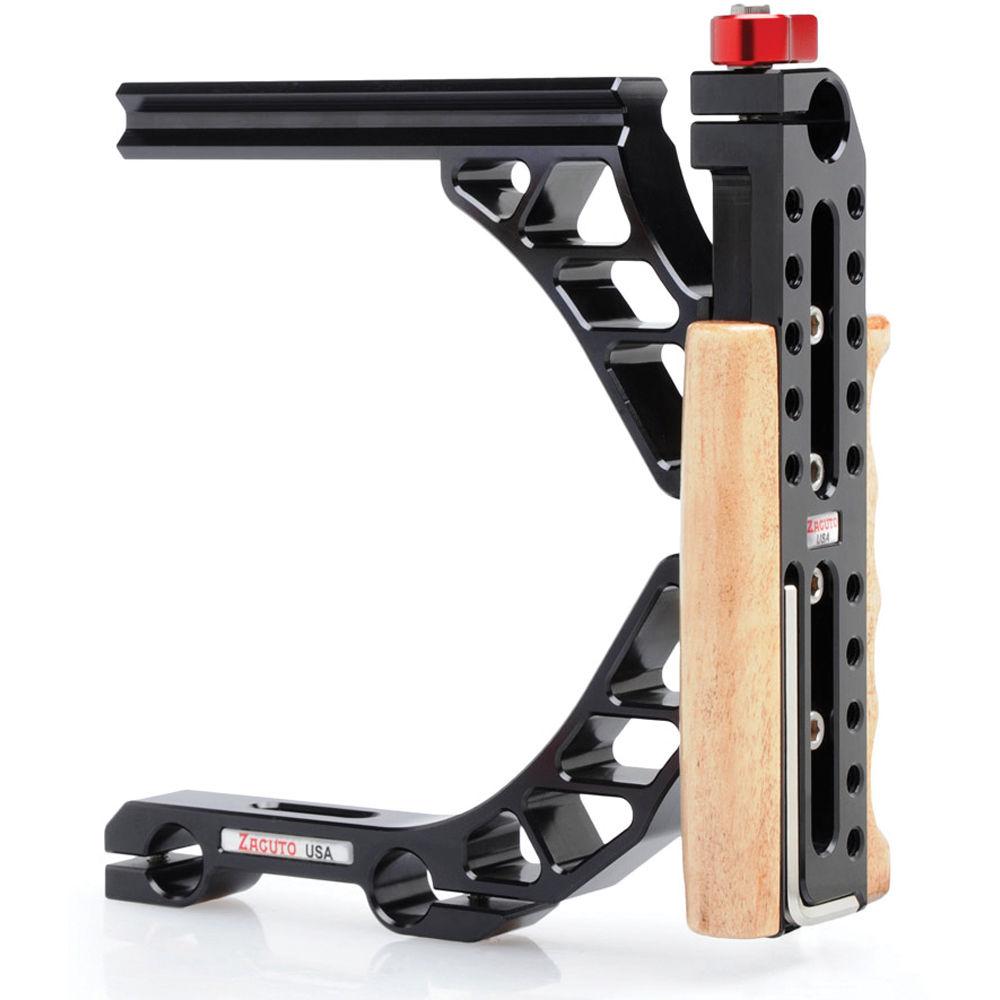

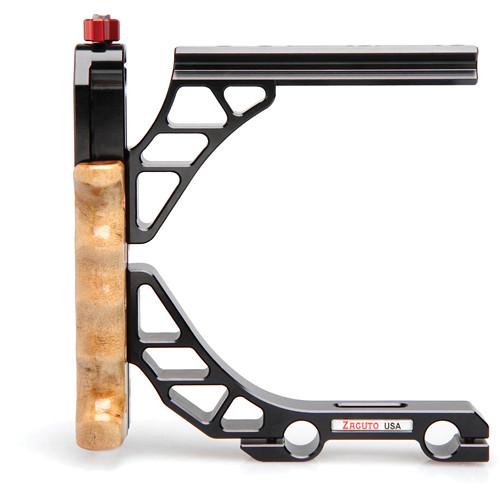

Product description The Zacuto Half Cage mounts onto 15mm rods in front or behind your camera, independently of the camera or baseplate, and leaves one side of the camera completely open. On the side it does cover, it features a hand-fitting, maple wood handle, fifteen 1/4" accessory threads, and a single 15mm rod port perfect for a Zacuto Zamerican Arm articulating arm.

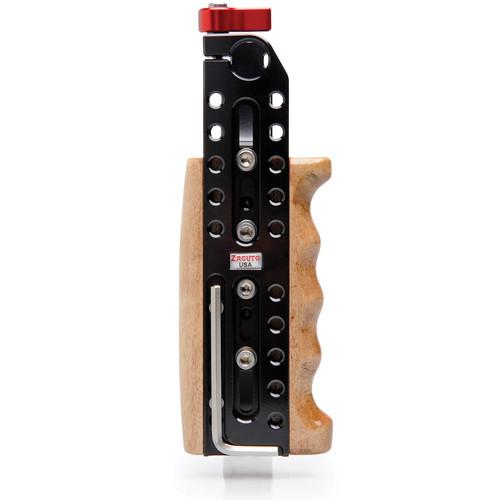

A recessed slot near the handle magnetically holds an included Allen key. This key is for tightening the main rod clamp with included screws and for adjusting the cage for compatibility with different cameras. At its most compact, the cage has a clearance of 5.5". By readjusting four screws, you can increase the clearance to 9" -- the top and bottom portions simply get separated further from each other.
The top portion of the cage is a double-sided Z-Rail that supports a Zacuto QR Handle top handle, Zacuto Axis Mount EVF mount, and various other Z-Rail compatible accessories, including NATO, Picatinny, SWAT, RED, and Wooden Camera rail accessories. The double sided aspect will let you attach these accessories on top or under-slung. - Rod Mount, Adjustable Half Cage
-
- Mounts onto 15mm rods independently of the camera or baseplate
- Hand-fitting, maple wood handle
- 1/4" accessory threads
- Single-rod, 15mm rod port
- 5.5" to 9" clearance
- Double-sided, top Z-Rail
- Magnetically holds an included Allen key
UPC: 741459185305 In the Box Zacuto Half Cage Allen Key Set of Allen Screws Lifetime Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto Half Cage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZacuto Z-HC Specs | Clearance | 5.5 - 9" (14 - 22.9 cm) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 11.6 x 9.4 x 4.7" |
