Product description - Halfcage Rail
- Next Generation Recoil

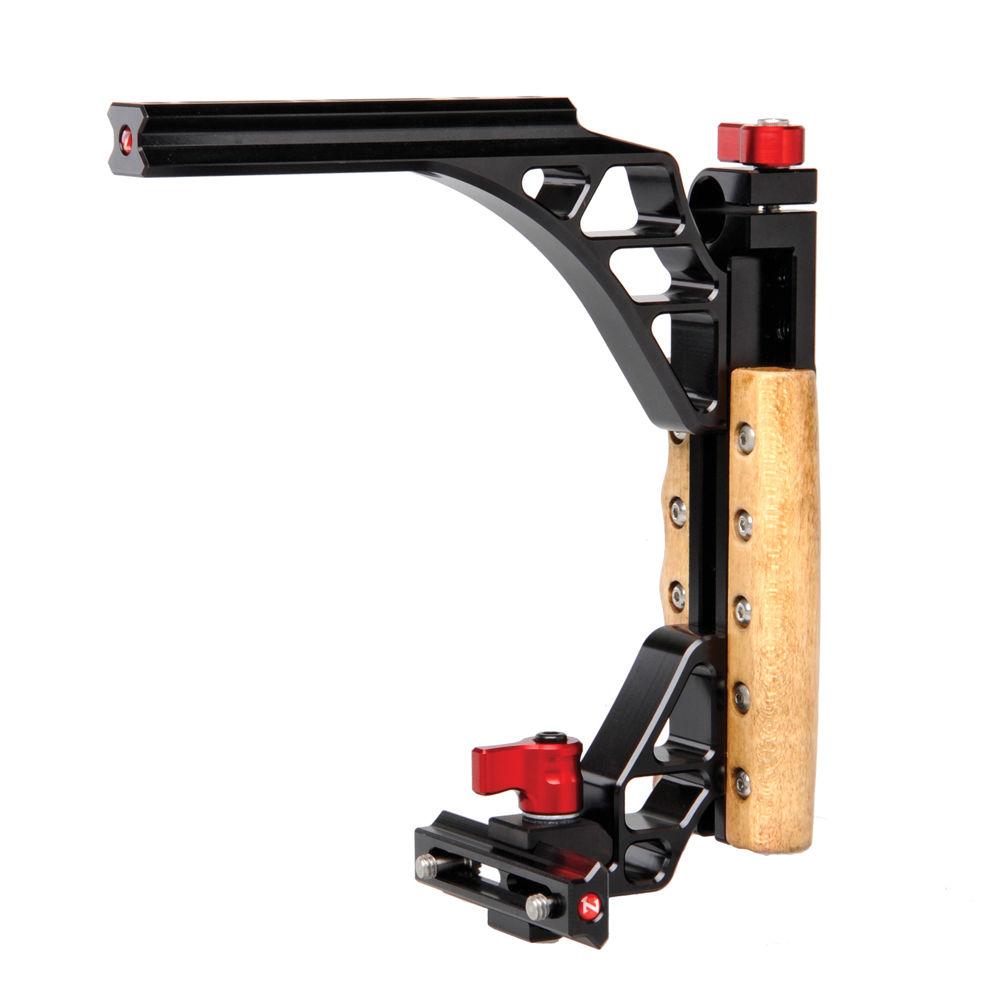

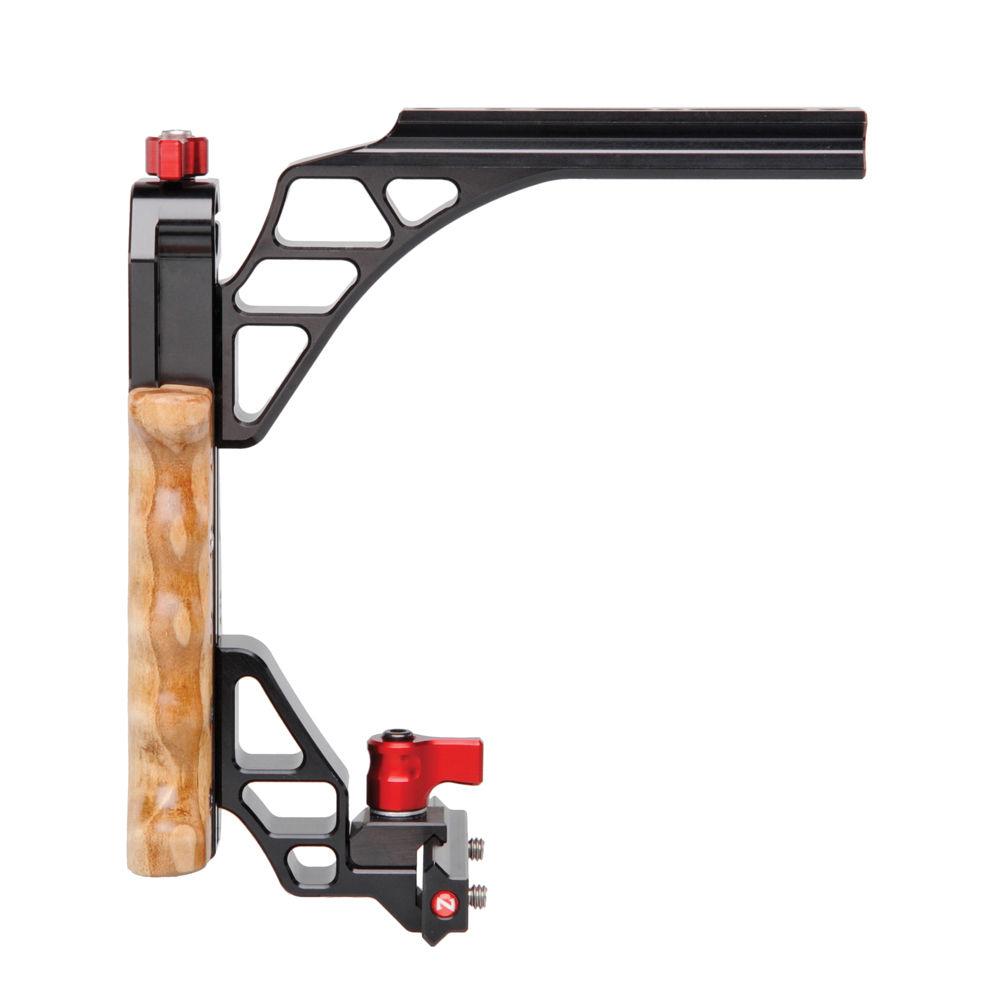

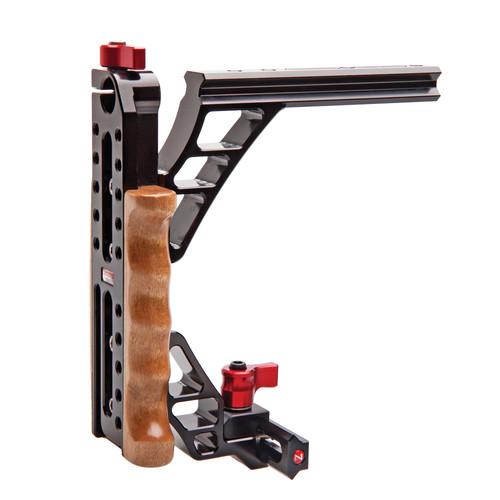

The Zacuto Halfcage Rail attaches to the Zacuto VCT Universal baseplate and creates a solid, universal cage structure around the side and top of your camera. It features a contoured wood side grip, and the built-in double-sided Z-Rail offers you the ability to add an optional top handle or Zacuto Coldshoe lock (not included). The side grip incorporates fifteen 1/4"-20 threaded accessory mounting points.

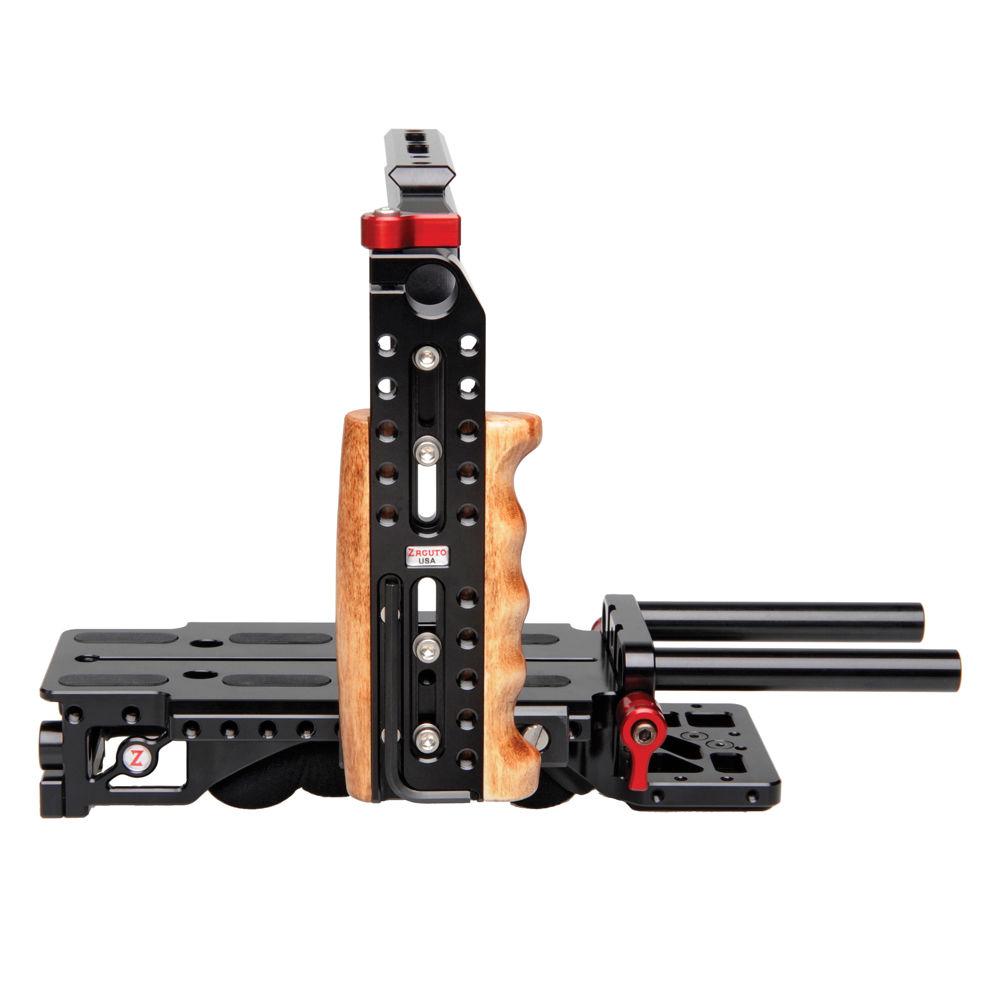

An included 5" Z-Rail attaches along the side of the VCT Universal baseplate with two 1/4"-20 screws. The Halfcage Rail then attaches that 5" Z-rail via a spring-loaded quick-release. At its most compact height, the Halfcage Rail has a clearance of 5.5". Four Allen head screws enable you to adjust the height to a 9" clearance. The side grip incorporates a 15mm rod port for attaching accessories. - The contoured wood handle is made of hand-tooled maple.
- You can adjust the clearance height from 5.5 to 9" to accommodate a variety of different cameras.
- The double-sided top Z-Rail allows you to use a Zacuto Coldshoe Lock (not included) to secure your camera to the Halfcage by usng your camera's cold shoe. Please confirm compatibility with Zacuto prior to attempting this.
- The Halfcage Rail features a special magnetic indentation along the side for storing the included Allen key.
- Both locking levers, the QR for the Z-Rail and the integrated 15mm rod clamp, are spring-loaded. This allows you to tighten the clamps fully, even when you can't rotate the levers through a full 360°.
UPC: 414591859785 In the Box Zacuto Halfcage Rail for Zacuto VCT Universal Baseplate 5" Z-Rail 2 x 1/4"-20 Screws Allen Key Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto Halfcage Rail for Zacuto VCT Universal Baseplate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZacuto Z-HCR Specs | Dimensions | 3 x 7 x 7" / 76 x 178 x 178 mm (minimum height adjustment)
3 x 7 x 10.5" / 76 x 178 x 267 mm (maximum height adjustment) | | Weight | 1.0 lb / 0.5 kg | | | | Package Weight | 1.665 lb | | Box Dimensions (LxWxH) | 9.2 x 6.75 x 6.55" |
