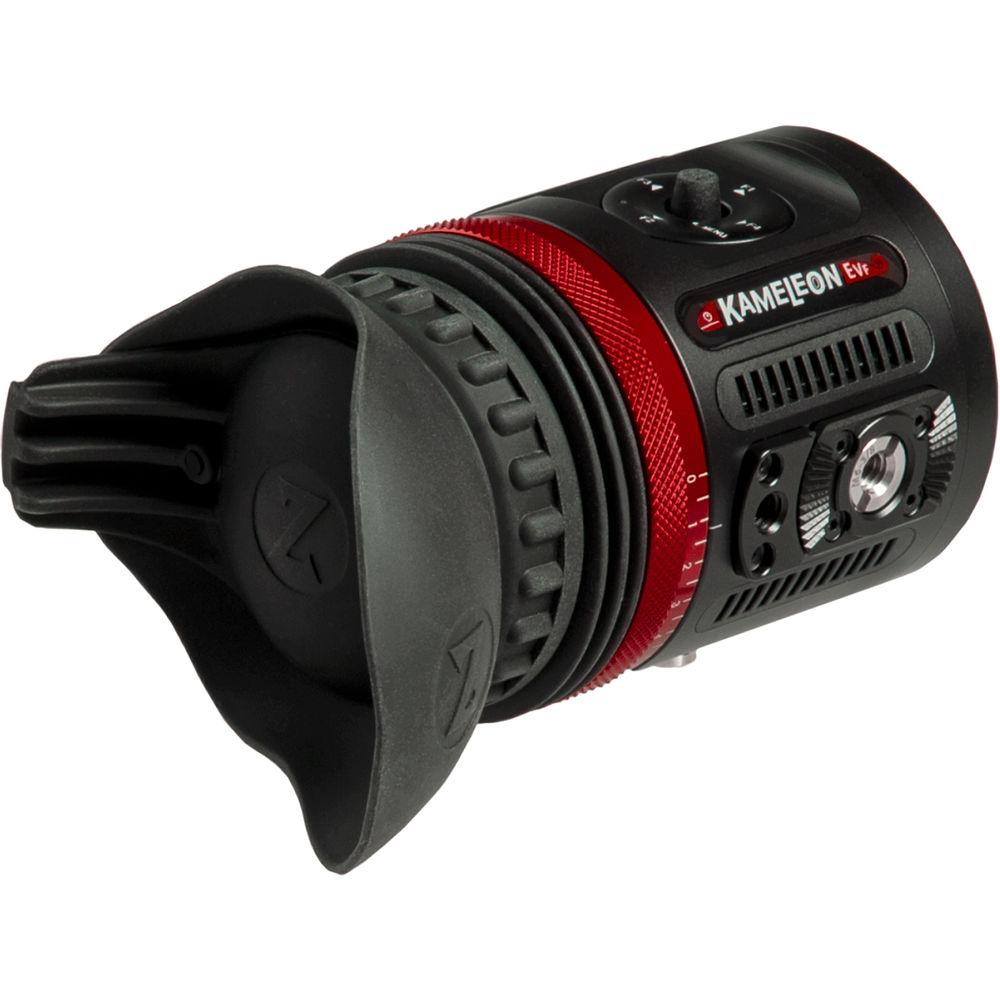

Product description Zacuto Kameleon Micro-OLED EVF Blends Well with SDI and HDMI Cameras Read More wbucbfzraqyaycquszszwztxrwfwcbzab Taking their micro-OLED Gratical technology a step further, Zacuto's Kameleon Micro-OLED EVF increases the resolution to a full 1920 x 1080, supporting frame rates up to 60p. The larger 0.71" micro-OLED diagonal panel, compared to previous Gratical EVFs, allows for the meaningful increase in resolution to Full HD while maintaining the same contrast ratio of 10,000:1 that you have come to expect from the Gratical line.

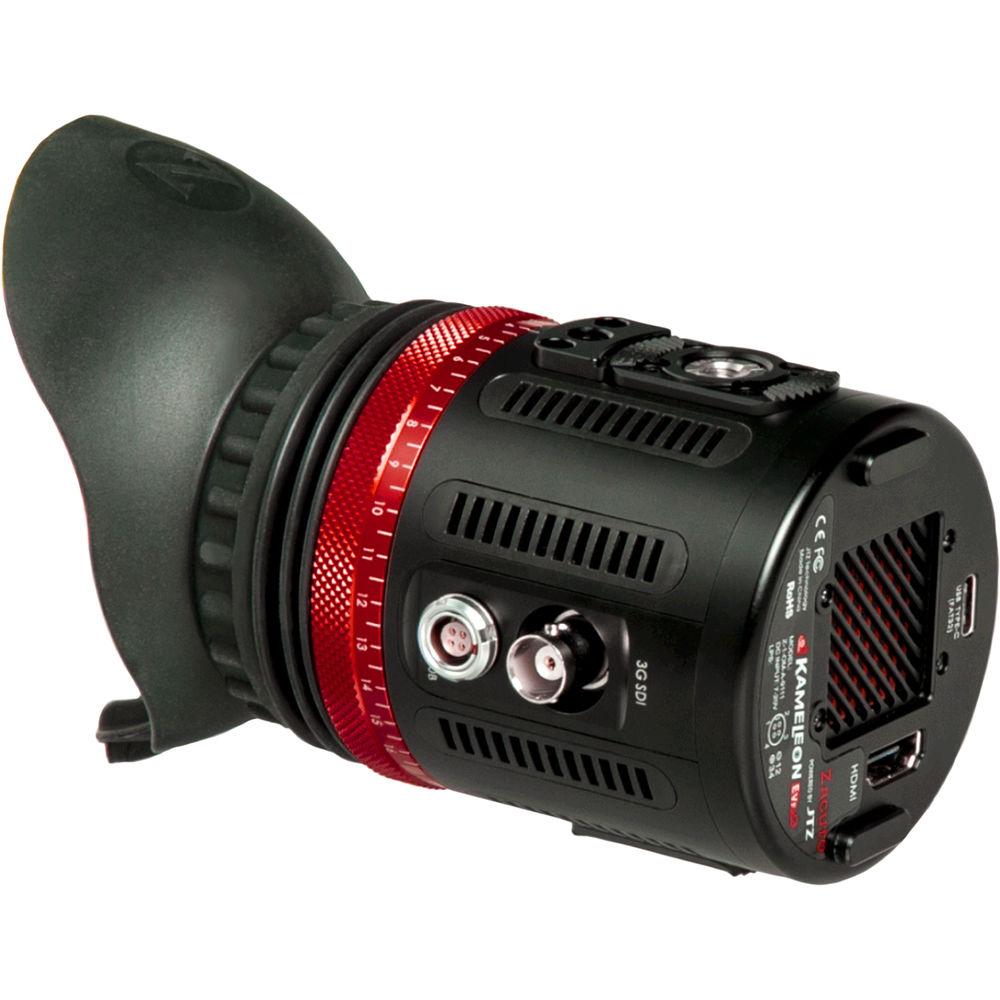

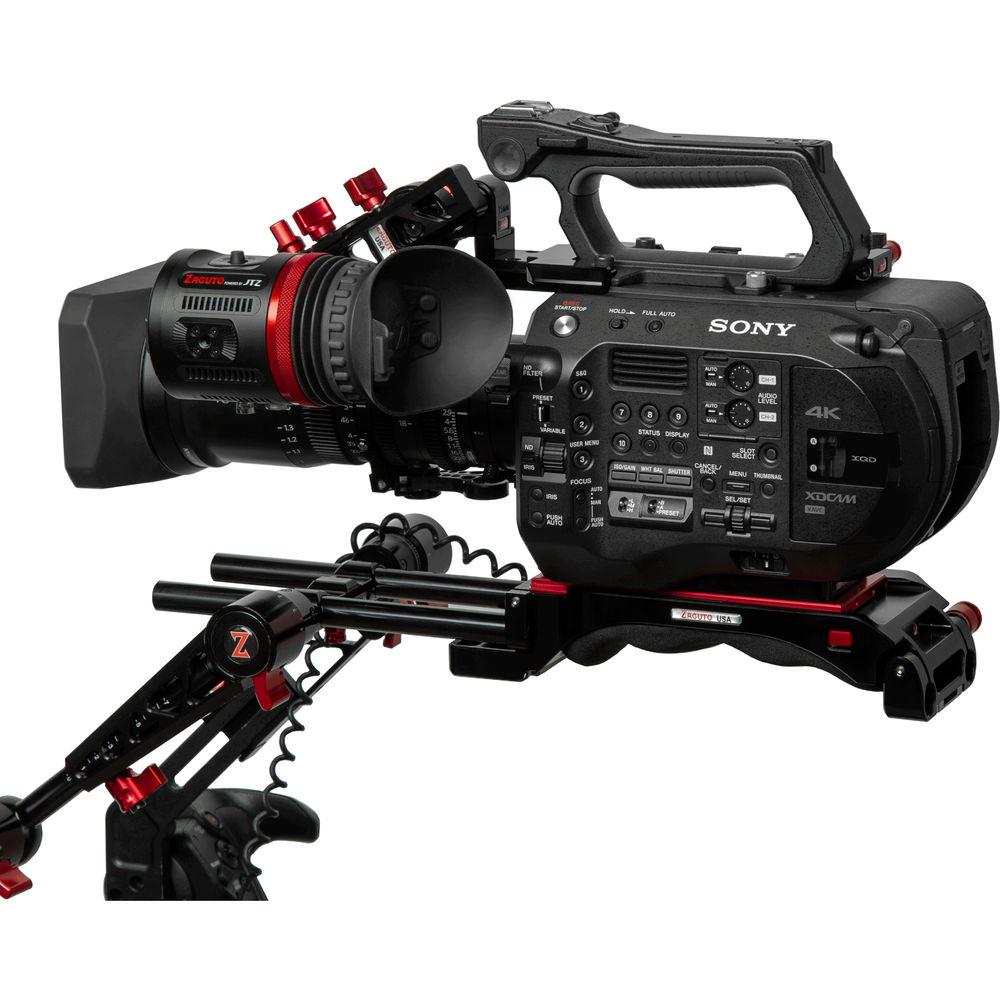

The Kameleon features 3G-SDI and HDMI inputs, making it an extremely versatile piece of gear ready for your signal path of choice. It supports 4K input via the HDMI port, and 1920 x 1080p60 via its 3G-SDI port. You can upload 1D and 3D LUTs, allowing you to clearly see the image as finally intended, even when feeding it a flat signal. It supports image tools such as histogram, peaking, false color, and zebra bars. Two ARRI-compatible rosettes with 1/4"-20 threading and a 1/4"-20 threaded hole provide you with flexible mounting choices. The micro-OLED display features calibration adjustments, while the viewfinder incorporates a diopter adjustment ring, supports drop-in diopters, and features a 4:1 zoom ratio. All in all, the Kameleon is an EVF ideally suited for use with a variety of cameras and rigs that use external power solutions. - Features
-
- 0.71", 1920 x 1080 micro-OLED display with 10,000:1 contrast ratio

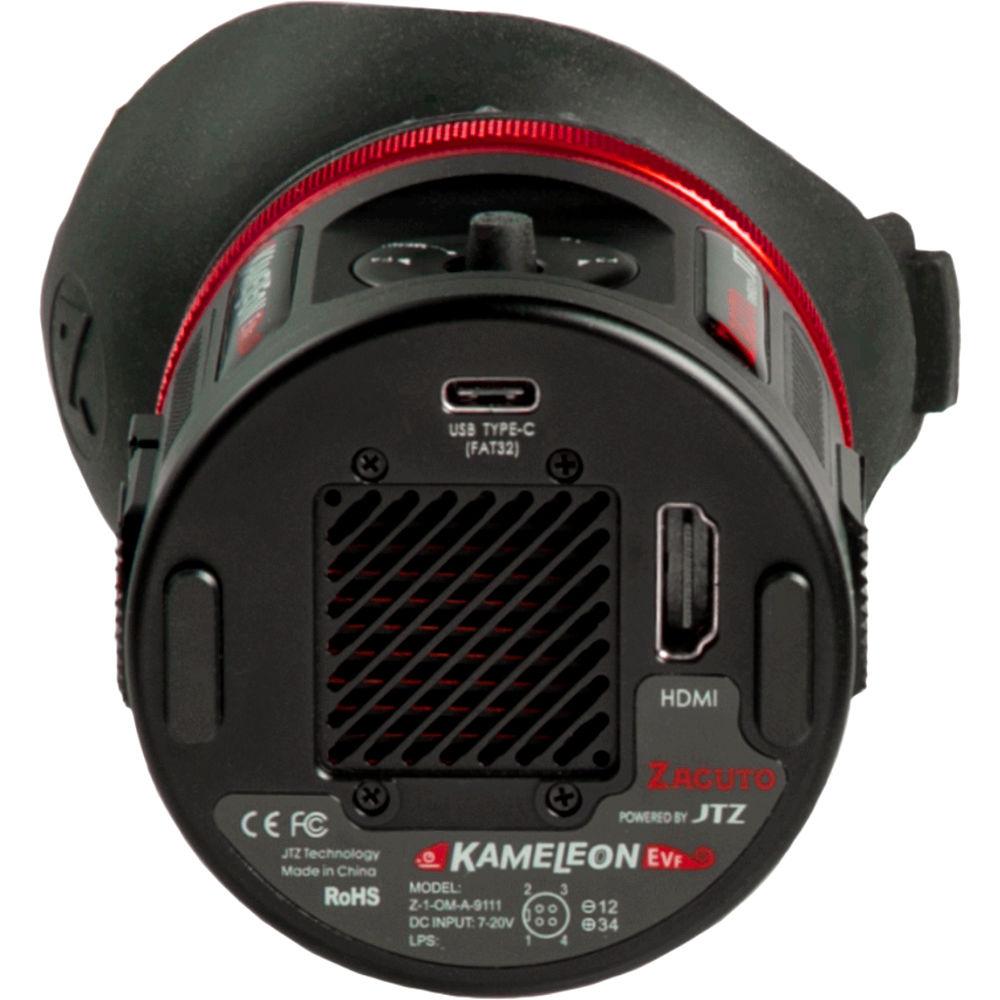

- 3G-SDI. HDMI, and USB-C connections
- Displays resolutions up to 1080p and frame rates up to 60 fps
- 4K video is supported via the HDMI input, but scaled to display as 1920 x 1080
- Monitoring & Image Analysis Tools
-
- Custom scaling/user presets
- Joystick and four programmable hotkeys
- Frame lines
- Anamorphic support
- 4:1 zoom
- RGB, saturation, brightness, and contrast adjustments
- Zebra with customer wide, color, and thresholds
- Histogram
- Audio meters
- LUT import
- Peaking (red)
- False color
- LUTs
-
- Built-in LUTs: SLOG2, SLOG3, LOG3, VLOG
- Upload additional LUTs via USB-C connector
- Programmable Buttons
- Default: Full screen (magnify), input select, zoom, histogram
- Physical Attributes
-

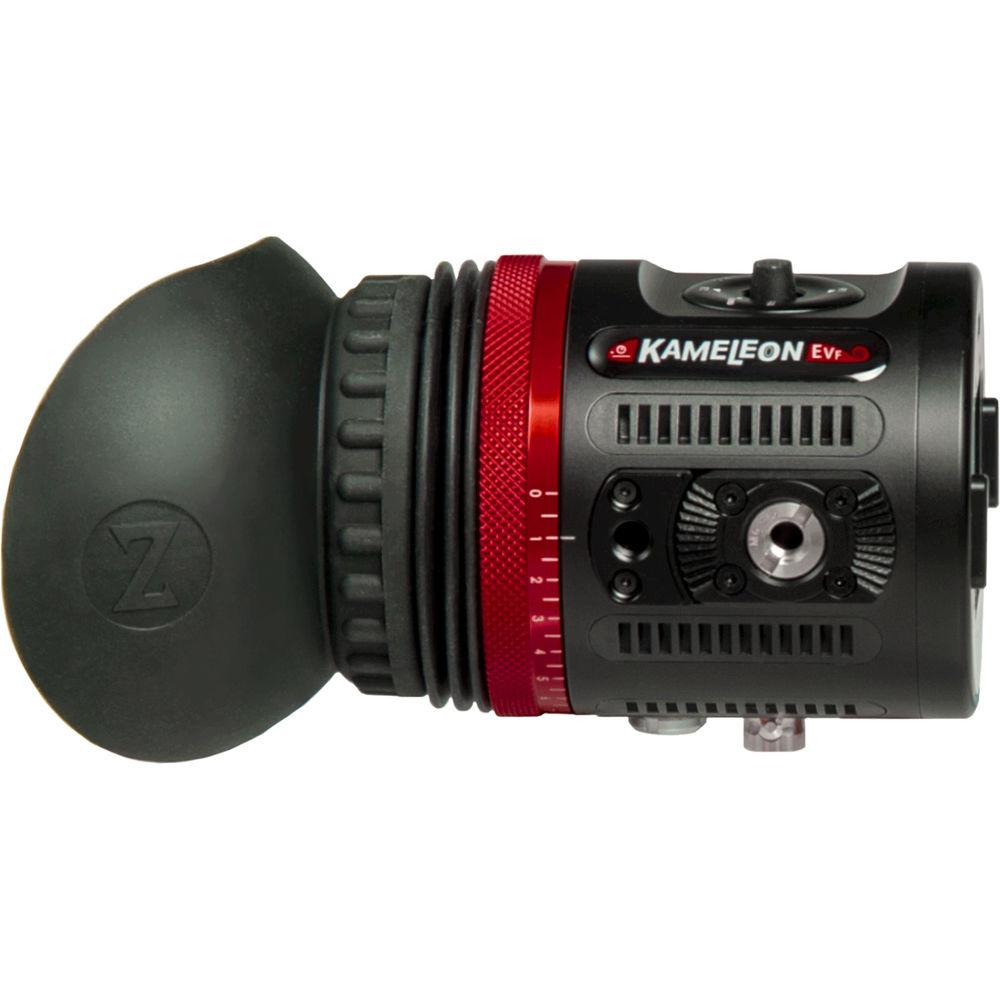

- Two ARRI-type rosettes with 1/4"-20 threading and a 1/4"-20 thread for mounting
- Adjustable diopter range from -5 to +5
- Accepts drop-in diopters that fit the Gratical EVF
- Includes Zacuto's anti-fog disc compatible with the Gratical EVF
- Joystick menu/function button

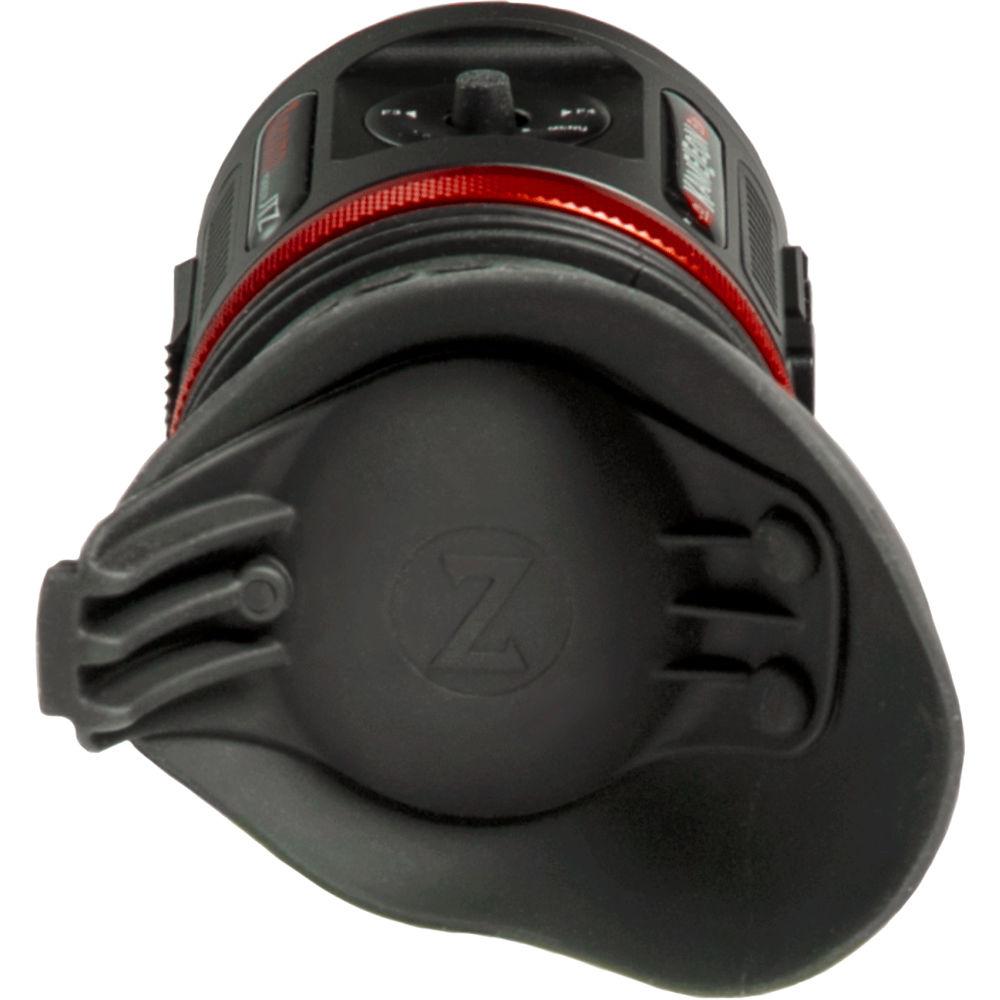

- Removable rubber eyepiece light trap
- Fan-cooled
In the Box Zacuto Kameleon Micro-OLED EVF Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto Kameleon Micro-OLED EVF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZacuto Kameleon Specs | | | Color/Monochrome | Color | | Panel Type | OLED | | Display Size | 0.7" / 1.8 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Touchscreen | No | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Pixels Per Inch (ppi) | 3103 ppi | | Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Screen Markers, Zebra | | | | Video | 1 x BNC (3G-SDI) Input
1 x HDMI Type A Input | | Power | 1 x 4-Pin LEMO 0B (20 VDC) Input | | Other I/O | 1 x USB Type-C | | | | Diopter Correction | -5.0 to +5.0 | | | | DC Input Power | 7 to 20 VDC | | Power Consumption | 5 W | | | | Mounting | 1 x 1/4"-20 Female
2 x Rosette with 1/4"-20 Female | | Dimensions (W x H x D) | 4.9 x 2.75 x 2.83" / 12.45 x 6.99 x 7.19 cm | | Weight | 15 oz / 0.43 kg |
