User Manual for Zacuto Marauder with GH3 GH4 Z-Finder Pro Kit Click to enlarge the picture
Contents of the user manual for the Zacuto Marauder with GH3 GH4 Z-Finder
- Product category: DSLR Video Supports & Rigs Zacuto
- Brand: Zacuto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zacuto DSLR Video Supports & Rigs
|
User manual for the Zacuto Marauder with GH3 GH4 Z-Finder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zacuto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zacuto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zacuto product will considerably shorten its lifespan!
|

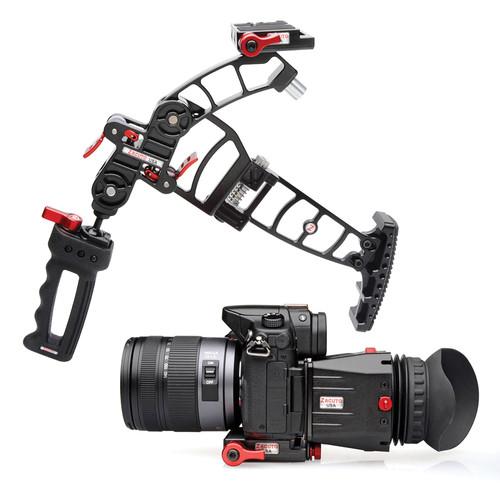

Product description The Zacuto Marauder with GH3/GH4 Z-Finder Pro Kit is a run-and-gun support system for the Panasonic GH3 or GH4 camera. The kit features the Marauder Foldable Camera Rig and the GH3/GH4 Z-Finder Pro Optical Viewfinder. Together, the kit provides three points of contact for increased camera stability and smoother footage, as well as the sun-blocking qualities inherent to optical viewfinders.
The Marauder offers the same type of support as Zacuto's Striker model but with an all-in-one, foldaway design. It features a gunstock with rubber pad, articulating handgrip, and an adjustable support arm. The camera support arm has a vertical or forward position, controlled by a single red push lever. Use the vertical position when attaching a Zacuto Z-Finder to your camera's LCD screen. This keeps the camera at eye level. A Zacuto Gorilla Plate V2 serves as the camera-mounting platform for the Marauder. The camera attaches to the plate via a single 1/4"-20 captive screw and can be quick-released off of the rig by using the spring-loaded ratcheting lever on the side of the plate.
The Z-Finder Pro is designed specifically for the GH3 or GH4 and attaches via the included mounting frame, offering 2.5x magnification of the LCD screen. The frame has a rubber coating to protect the LCD as well as provide a firm seal against the camera body. A large eyecup blocks out unwanted light while providing an additional point of contact for added stability. Additional features include an anti-fog cover and built-in diopter for eyesight correction. Three extender mounting frames are included to extend the distance between the viewfinder's lens and the camera's LCD monitor. This is intended for use by farsighted users as the increased distance will bring the image into focus. Also included with the Z-Finder is a dust cover, lens cap, sun mask, protective boot, lanyard, and additional anti-fog disc
Note: The Z-Finder won't fit with a battery grip attached or with the LCD screen articulated.
See the links below for more information on the components of this kit. - Zacuto Marauder Foldable Camera Rig
- Zacuto Foldable Camera Rigs
- Product Demo 1
The Zacuto Marauder Foldable Camera Rig provides stable camera support for run-and-gun, guerilla-style shooting with DSLR cameras or small camcorders. The Marauder was designed to offer the same type of support as Zacuto's Striker model, but in an all-in-one, fold-away design. It features a gunstock with rubber pad, articulating handgrip, and Zacuto Gorilla Plate V2 on an adjustable support arm for attaching your camera to the rig. The Marauder folds up in a matter of seconds and when folded, is small enough to fit into a carry-on, camera bag, backpack, purse, or even your cargo pants pocket. - Adjustable Camera Support Arm
- The camera support arm has a vertical or forward position, controlled by a single red push lever. Use the vertical position when attaching a Zacuto Z-Finder to your camera's LCD screen. This keeps the camera at eye level. For use without a Z-Finder, push the arm forward for comfortable viewing of your camera's LCD screen.
- Gunstock with Angle Adjustment
- The gunstock is pressed against your shoulder to offer better shot stability. It has a rubber pad for added comfort and offers 45 degrees of continuous adjustment. Use the included 5/32" Allen key to loosen the two screws and adjust the angle of the gunstock for a more personalized fit.
- Articulating Handgrip
- The handgrip angle can be adjusted to five different positions by releasing a spring-loaded red lever. This lets you put the grip in a position that is comfortable for you. The grip itself is also articulating for further positional adjustments. It is locked in place by a second lever located above the grip.
- Foldable Design
- The Marauder folds up in a matter of seconds. Once your camera is quick-released from the rig, simply release the two red levers to lock the camera support arm and handgrip away, and then push down on the silver cap to lift up and swing away the gunstock.
- Zacuto Gorilla Plate V2
- The Zacuto Gorilla Plate V2 serves as the camera mounting platform for the Marauder. The camera attaches to the plate via a single 1/4"-20 captive screw and can be quick-released off the rig by using the spring-loaded ratcheting lever on the side of the plate.
UPC: 414591857255 - Zacuto GH3/GH4 Z-Finder Pro Optical Viewfinder
- Zacuto Foldable Camera Rigs
- Product Demo 1
The GH3/GH4 Z-Finder Pro Optical Viewfinder from Zacuto attaches to the Panasonic GH3 and GH4 cameras and provides a large, stable, eye-level viewer designed for shooting video. Its large eye cup blocks out extraneous light and offers a comfortable point of stability. The viewfinder has a 40mm diameter Zacuto lens and provides a 2.5x magnification of the camera's LCD monitor. The lens has an anti-fog protective cover and a built-in diopter for fine tuning the focus to match your eyesight.The Z-Finder Pro attaches to the GH3/GH4 via the included Gorilla Plate V2 and the Z-Finder Mounting Frame for the GH3/GH4. It will not fit other cameras nor will it work on the cameras with a battery grip attached or with the LCD screen articulated. The frame has a rubber coating to protect the LCD as well as to provide a firm seal with the camera. The Gorilla Plate V2 attaches to the camera's tripod socket with a 1/4"-20 screw and offers a 15mm rod port. The Z-Finder Pro can be detached from the frame easily and hung around your neck on the included lanyard.Three additional extender mounting frames are included to extend the distance between the viewfinder's lens and the camera's LCD monitor. This is intended for use by farsighted users as the increased distance will bring the image into focus. Also included is one installed and one additional anti-fog disc, a dust cover, lens cap, sun mask, protective boot, and lanyard.If you already own a Z-Finder Pro or Z-Finder Jr, you can use it with the GH3/GH4; however, you do need the Gorilla Plate V2 and the Z-Finder Mounting Frame for GH3/GH4, available hererzbqxeuyytefcxvyzsfdxssdabfwvwysssau. - Optical viewfinder for GH3 and GH4 cameras with a form factor designed to enable clear, stable video shooting.
- 40mm diameter lens provides 2.5x magnification of the camera's LCD screen
- Includes Z-Finder Mounting Frame for GH3/GH4 and Gorilla Plate V2 that attach to camera via tripod mount. Gorilla Plate includes a 15mm rod port, and the Mounting Frame provides rubber seal to protect LCD and fit snugly to camera back
- Includes three extender plates to provide focusing for farsighter viewers
- Includes lanyard to hang Z-Finder Pro around your neck when not attached to camera.
- Includes two anti-fog protective discs (one installed, one additional)
- Also includes lens cap, sun mask, dust cover, and protective boot
UPC: 741459185718 In the Box - Marauder Foldable Camera Rig
- Gorilla Plate V2
- 5/32" Allen Key
- Limited Lifetime Warranty
- GH3/GH4 Z-Finder Pro Optical Viewfinder rzbqxeuyytefcxvyzsfdxssdabfwvwysssau
Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto Marauder with GH3 GH4 Z-Finder Pro Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Zacuto Marauder Foldable Camera Rig
| Material of Construction | Anodized aluminum with molded plastic handgrip | | Camera Mounting Screw | 1 x Captive 1/4"-20 screw (on Gorilla Plate V2) | | Dimensions (L x W x H) | Fully Extended: 15.0 x 2.5 x 14.0" (38.1 x 6.4 x 35.6 cm)
Folded: 9.0 x 2.5 x 6.0" (22.9 x 6.4 x 15.2 cm) | | Weight | 2.28 lb (1.03 kg) | | | | Box Dimensions (LxWxH) | 11.7 x 9.2 x 6.8" | - Zacuto GH3/GH4 Z-Finder Pro Optical Viewfinder
| Material of Construction | Viewfinder: PlasticPlate and Frame: Aluminum Alloy | | Magnification | 2.5x | | Lens Diameter | 40mm | | Dimensions | 2.7 x 1.8" (68 x 45 mm) | | Weight | 9.6 oz (272 g) | | | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 3.7" |
