User Manual for Zacuto Recoil Handle Click to enlarge the picture
Contents of the user manual for the Zacuto Recoil Handle
- Product category: Handles & Grips Zacuto
- Brand: Zacuto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zacuto Handles & Grips
 |
User manual for the Zacuto Recoil Handle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zacuto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zacuto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zacuto product will considerably shorten its lifespan!
|
Product description - Zacuto Recoil Handle
- Recoil Handle
- Next Generation Recoil

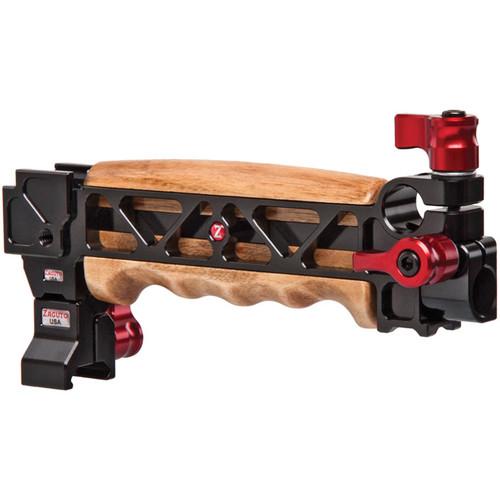

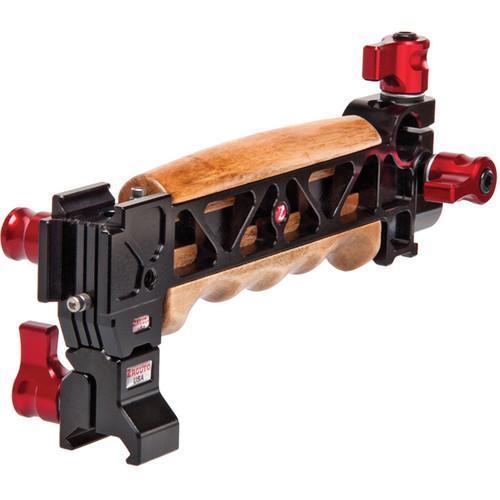

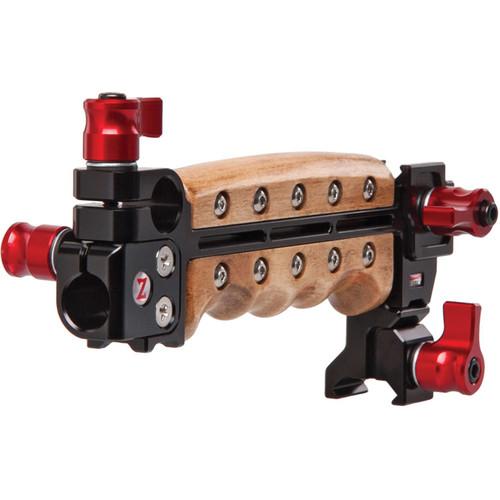

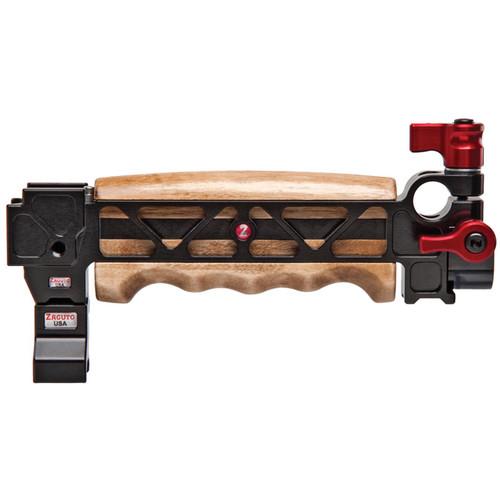

The Zacuto Recoil Handle is a maple-wood-lined handgrip that mounts to a Z-Rail or compatible mounting rail. This provides a comfortable yet secure handle for your camera rig, and the rail-style mounting allows you to adjust the handle along the length of the rail to improve your rigs balance. It features two cold shoe mounts (one vertical and one horizontal) and secures both mounts with a single lever. The integrated 1/4"-20 threaded mounting hole, and 15mm rod clamps further expand on the Recoil Handle's usefulness.
Machined aluminum construction provides a balance of strength and weight, and the unit is anodized for corrosion and wear resistance. Large, spring-loaded locking levers provide a good grip and the capability of tightening the clamps without rotating the levers throughout the entire 360° range. Key Features - The Recoil Handle clamps securely along the length of a Zacuto Z-Rail, allowing you to adjust the balance of your camera or camera rig. In addition to the Z-Rail, the handle is compatible with a variety of rails including: NATO, SWAT, RED, Picatinny, and Wooden Camera. You can mount the handle with the cold shoes or the rod clamps.
- The maple-wood grip linings remain cool in hot weather and are generally considered to be more comfortable to hold. The wood is tooled to provide finger slots for increased comfort and grip.
- The two cold shoes incorporate built-in stoppers and a single lever clamps both shoes simultaneously, securing your accessories. A 1/4"-20 accessory mounting point is threaded into the side of the cold shoe mounts.
- Two offset 15mm rod clamps allow you to mount rods at right angles to each other. Each rod clamp features its own spring-loaded locking lever.
In the Box Zacuto Recoil Handle Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto Recoil Handle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZacuto Z-RCH Specs | Mounting | Z-Rail
NATO
SWAT
RED
Picatinny
Wooden Camera | | Accessory Mounting | 1 x 1/4"-20
2 x cold shoe
2 x single 15mm rod clamps | | Dimensions | 7.5 x 3.0 x 3.0" / 19.1 x 7.6 x 7.6 cm | | Weight | 8.0 oz / 226.8 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 6.1 x 5.0 x 2.5" |
