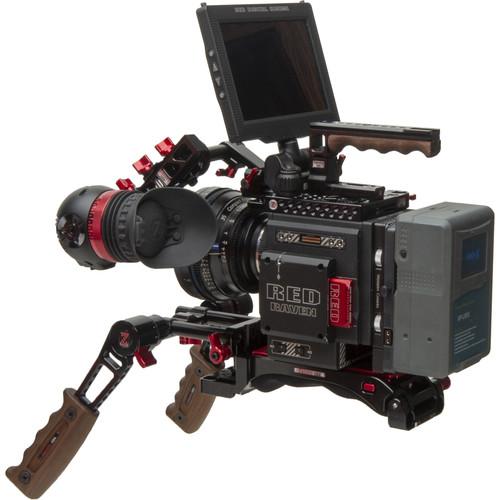

User Manual for Zacuto RED EVF Recoil Gratical Eye Bundle Click to enlarge the picture
Contents of the user manual for the Zacuto RED EVF Recoil Gratical Eye
- Product category: Camcorder Supports & Rigs Zacuto
- Brand: Zacuto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zacuto Camcorder Supports & Rigs
|
User manual for the Zacuto RED EVF Recoil Gratical Eye contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zacuto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zacuto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zacuto product will considerably shorten its lifespan!
|
Product description View your compositions comfortably and accurately and support your RED camera with the Zacuto RED EVF Recoil Gratical Eye Bundle. This shoulder rig is designed to support RED DSMC2 camera bodies such as the RAVEN, WEAPON, EPIC WEAPON (EPIC-W), SCARLET WEAPON (SCARLET-W), MONSTRO, HELIUM, and GEMINI. It is comprised of the Zacuto VCT Pro Baseplate, a RED rod riser, a RED Top Plate, Dual Shorty Trigger Grips, a Top Handle, a 3" Z-Rail, a Gratical Eye Micro OLED SDI EVF, an Axis Mini, and a Z-Rail Axis Mount.
This EVF shoulder rig follows in the Zacuto Recoil Rig philosophy of setting the balance point at the shoulder, placing the camera behind the shoulder and the focus, monitoring, and camera controls forward. The rig is designed to transfer comfortably from your shoulder to a tripod and back without removing accessories. - RED EVF Recoil Shoulder Rig with Dual Trigger Grips The Zacuto RED EVF Recoil Shoulder Rig with Dual Trigger Grips is a shoulder rig designed to support RED DSMC2 camera bodies such as the RAVEN, WEAPON, EPIC WEAPON (EPIC-W), SCARLET WEAPON (SCARLET-W), MONSTRO, HELIUM, and GEMINI. It is comprised of the Zacuto VCT Pro Baseplate, a RED Rod Riser, a RED Top Plate, Dual Shorty Trigger Grips, a Top Handle, and a 3" Z-Rail. This shoulder rig follows in the Zacuto Recoil Rig philosophy of setting the balance point at the shoulder, placing the camera behind the shoulder and the focus, monitoring, and camera controls forward of the shoulder.
The VCT Pro Baseplate supports the camera and features 10" of sliding, forward/back balance adjustment. It includes 15mm rods and rod clamps for rod-mounted accessories and a rod riser specifically designed to support a RED DSMC2 camera body, as well as comfortable gel shoulder padding. The VCT Pro also enables your rig to go from your shoulder to a tripod and back without removing accessories.
The RED Top Plate provides multiple 1/4"-20 mounting holes, built-in POGO connectors for a RED monitor and trigger equipment, and a 15mm rod port for mounting additional rod accessories.
The Dual Shorty Trigger Grips provide left and right wooden handgrips and feature 15mm rod ports for mounting to the VCT Pro baseplate. Locking levers allow you to easily adjust their arm length, angle, and rotation.
The Top Handle features a wooden handgrip, top Z-Rail, multiple 1/4"-20 mounting threads, and a cold shoe mount for additional accessory mounting. A 3" Z-Rail is included to mount the Top Handle to the RED Top Plate. - Gratical Eye Micro OLED EVF With the Gratical Eye, Zacuto takes the highly regarded 0.61", 1280 x 1024 micro OLED panel found in their Gratical HD and packs into an EVF that weighs just 14 oz and fits into the palm of your hand. In order to keep the EVF small and compact, it features a round design and it equipped with only a single 3G-SDI input that supports up to 1080p60 video, a 2-pin LEMO power connector, and a USB port for firmware updates. Not content at being just a professional-grade EVF that produces natural looking images with a 10,000:1 contrast ratio, the Gratical Eye is equipped with a FPGA dual core processor to support the full set of monitoring and image analysis features found on the larger Gratical HD, including LUT support, vectorscope and waveform displays, and peaking, which are controlled using a joystick-style button on the back of the unit. With its compact size and full feature set, the Gratical Eye is an EVF ideally suited for use with professional SDI cameras and rigs using external power solutions.
- Features
-
- 0.61", 1280 x 1024 micro OLED display with 10,000:1 contrast ratio
- 3G-SDI input (optional converter for HDMI)
- Supports resolutions up to 1080p and frame rates up to 60 fps
- 2-Pin LEMO power input
- 14 hours of power when used with a separately available 75Wh battery
- Outboard tally light
- Proximity screen saver sensor to conserve power (7 second motion detector screen saver and auto shut off after 1 hour of being idle)
- Rosette with 1/4"-20 thread on each side for mounting
- -1 to +4 adjustable diopter range
- USB port for firmware updates
- Monitoring & Image Analysis Tools
-
- Custom scaling/user presets
- RGB, saturation, brightness, and contrast adjustments
- Zebra with customer wide, color, and thresholds
- Vectorscope
- Waveform
- Histogram (RGB, Luma)
- Audio meters
- LUT import and creation
- Peaking (multiple color options)
- False color
- Frame store with transparency
- Test pattern (color bars and Macbeth)
UPC: 741459186258 - Axis Mini EVF Mount A versatile and adjustable means for attaching a rosette-mounted EVF to your camera, the Zacuto Axis Mini is an ENG-style mount that is designed to attach to the top of your camera setup and provide you with ample room for adjusting focus or working with large lenses. It attaches directly to rigs fitted with a 15mm rod port and then connects with EVFs, such as the Gratical HD, using a secure 1/4"-20 rosette mount, or can also be used with 1/4"-20 screw mount EVFs with the separate Quad Rail for mounting.
Once attached, the Axis Mini's adjustable design utilizes four main pivoting points, which can spin a full 360° and are controlled using independent tension levers. With all levers unlocked, you can freely position the EVF at will using a single hand, or specific sections can be tightened down for fine-tuned adjustments on a single axis. Additionally, the articulation can be configured to work seamlessly with both shoulder-mounted rigs as well as for tripod-based shooting. - Z-Rail Axis Mount with 15mm Rod Port The Zacuto Z-Rail Axis Mount with 15mm Rod Port is an excellent choice for mounting your Axis Mini EVF Mount onto a camera outfitted with a Z-Rail. It works well with the Zacuto C200 and EVA top plate, and the rod clamp projects forward and up at a 45° angle so that the Axis Mini EVF mount is placed in the ideal working position.
The mount is made from anodized aluminum, with the aluminum providing a good balance between weight and strength and the anodizing providing corrosion protection. Spring-loaded locking levers enable tightening or loosening of either the rod clamp or the Z-Rail clamp, even when you can't rotate the levers fully. In the Box Bundle Items RED EVF Recoil Shoulder Rig with Dual Trigger Grips adwderazedueevuevwasyrteycqzwvbzs - Top Handle with Z-Rail and Cold Shoe Mount
- Limited Lifetime Warranty
Gratical Eye Micro OLED EVF adwderazedueevuevwasyrteycqzwvbzs Axis Mini EVF Mount - Limited Lifetime Warranty
Z-Rail Axis Mount with 15mm Rod Port - Limited Lifetime Warranty
Also Includes - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto RED EVF Recoil Gratical Eye Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RED EVF Recoil Shoulder Rig with Dual Trigger Grips
| | | Box Dimensions (LxWxH) | 12.4 x 12.2 x 5.6" | - Gratical Eye Micro OLED EVF
| | | Type | OLED | | Size | 0.61" / 15.1 mm | | Resolution | Full Display: 1280 x 1024
16x9 Area: 1280 x 720 | | Total Pixels | 5.4 million | | Pixel Density | 2687.21 PPI | | Contrast Ratio | 10,000:1 | | Refresh Rate | 60 Hz | | Color Depth | RGB: 24-bit (16.7 million colors) | | Luminance | 120 to 250 cd/m2 | | Frame Rates Supported | 23.98p
23.98PsF
24p
24PsF
25p
25PsF
29.97p
29.97PsF
30p
30PsF
50i
50p
59.94i
60i
60p | | | | Video Input | 3G-SDI (resolution up to 1080p60) | | Power Input | 2-pin LEMO (accepts either polarity) | | Firmware Updates | USB (Type A) | | Mounting Options | 2 x Rosettes with 1/4"-20 screw thread | | | | Power Requirements | 12 to 16.8 VDC | | Weight | 14 oz (397 g) | | | | Box Dimensions (LxWxH) | 7.6 x 4.5 x 3.8" | - Axis Mini EVF Mount
| | | Box Dimensions (LxWxH) | 6.0 x 3.5 x 1.0" | - Z-Rail Axis Mount with 15mm Rod Port
| Material of Construction | Anodized aluminum | | Dimensions | 2.2 x 1.65 x 1.97" / 5.6 x 4.2 x 5 cm | | Weight | 2.2 oz / 61 g | | | | Box Dimensions (LxWxH) | 2.1 x 1.6 x 1.3" |
