Product description - Zacuto - Sony F5/F55 Top Plate Demo

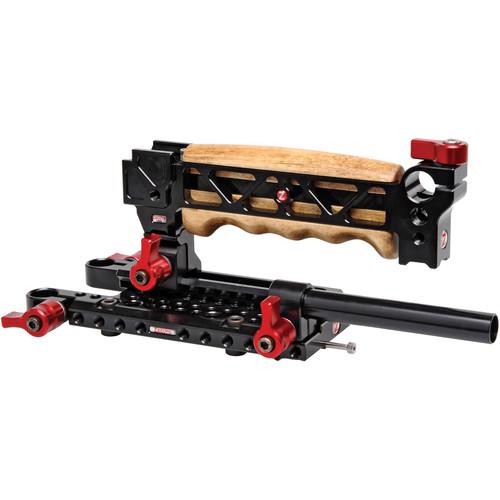

The Zacuto Sony F5/F55 Top Plate attaches to the top of your F5 or F55 camera and provides numerous accessory mounting options. It includes a 5" Z-Rail, Recoil Handle, 15mm Z-Lock, and a 4.5" (11.4 cm) 15mm rod. The top plate offers rows of 1/4"-20 and 3/8"-16 screw holes across the top for accessories. Built into the back of the plate are two 15mm rod clamps with a small lip inside to stop arms or rods from falling through and damaging your camera.
The Recoil Handle top grip attaches to the included 5" Z-Rail with a spring-loaded locking lever. The handle incorporates two cold shoes offset by 90°, enabling you to mount more than one accessory at a time. The handle also incorporates a 15mm rod clamp 15mm rod port. The included 4.5" rod can be used in any of the spring-loaded rod clamps, including the removable 15mm Z-Lock at the front of the plate. A film plane marker screw and lens mount locking screw are also included. - The Recoil Handle mounts on the 5" Z-rail, which you previously attached to the top plate, this enables forward and back adjustment of the handle to find the optimal balance.
- The plate features two built-in 15mm rod clamps that enable attaching 15mm rods vertically. The rod clamps incorporate a small lip that prevents the rods from sliding through all the way.
- An included Z-Lock 15mm rod clamp can be mounted along the top plate to suit your needs.
- The included 4.5" 15mm rod features female threads on both ends.
UPC: 414591860743 In the Box Zacuto Sony F5/F55 Top Plate 5" Z-Rail Recoil Handle ZL-15 15mm Z-Lock 4.5" (11.43 cm) Female / Female Rod Extension (Black) 4 x 1/4"-20 Hex Screws Film Plane Marker Screw Lens Mount Locking Screw Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto Sony F5 F55 Top Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZacuto Z-SF5TPH Specs | | | Material of Construction | Anodized aluminum | | Dimensions | 6.625 x 3.063" / 16.83 x 7.78 cm | | | | Mounting | Z-Rail
NATO
SWAT
RED
Picatinny
Wooden Camera | | Accessory Mounting | 1 x 1/4"-20
2 x cold shoe
2 x single 15mm rod clamps | | Dimensions | 7.5 x 3.0 x 3.0" / 19.1 x 7.6 x 7.6 cm | | Weight | 8.0 oz / 226.8 g | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 9.2 x 6.7 x 6.6" |
