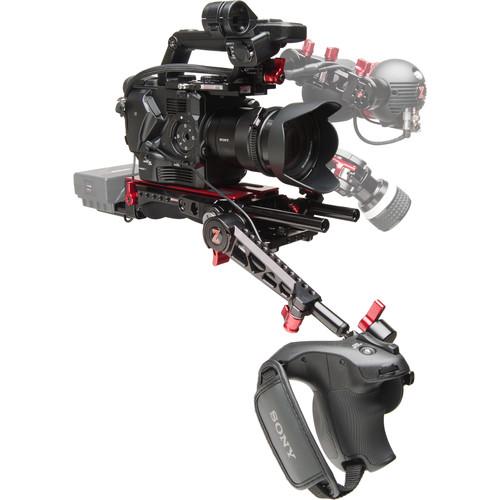

Zacuto Sony FS5 EVF Recoil Pro

User Manual for Zacuto Sony FS5 EVF Recoil Pro with VCT Pro Baseplate

• Product category: Camcorder Supports & Rigs Zacuto
• Brand: Zacuto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zacuto Camcorder Supports & Rigs

Product description

• VCT Pro Baseplate With built-in ergonomic shoulder pad, 10" sliding track, extra space for accessories in front, VCT14-compatible V-wedge, red buttons and levers all around, and much more, this is the stylish VCT Pro Baseplate from Zacuto. Use it with all types of cameras, from DSLRs to larger models, like the Alexa.

  A section of the baseplate extends out beyond the 15mm LWS rod adapter in front. With the rod adapter thus set back, you have additional space to mount accessories under the camera lens, allowing you to position the camera further back on the plate, keeping the balance point of your rig directly over your shoulder. (The rod adapter is vertically adjustable 1", and has to be in a raised position to allow for accessories to be mounted in the additional space. Also, a 1.8" riser for the rod adapter is optionally available for RED cameras by special order from Zacuto.) Also, on the bottom of the section that protrudes out is where the V-wedge is. There is also a 15mm LWS rod adapter on the rear.

  The VCT Pro Baseplate features a 10" sliding track, providing the space to optimally adjust balance after every lens change. Moreover, the included red camera plate can be loosened by a spring-loaded lever instead of a screw, so you can make adjustments quickly and easily. To fully release and remove the plate (and camera), just press a red button on the side of the baseplate and slide the plate out. The rod ports also have spring-loaded levers.

  An ARRI M6 rosette is available on the front for attaching accessories and grips, and there are also three 1/4"-20 threaded holes on the side providing additional mounting options. 1/4"-20 and 3/8"-16 tripod mount holes are available on the bottom to use instead of the V-wedge. The shoulder pad runs pretty much along the entire length as well as width of the baseplate, and is made of gel polymer. Two 6.5" 15mm rods are included. One 1/4"-20 and one 3/8"-16 screw are supplied for the camera plate. The VCT Pro Baseplate is made in the USA.
  Key Features
  • • Front rod adapter is set far back, providing more space for accessories, and allowing the camera to be positioned further back for better balance
    • 10" sliding track (with spring-loaded lever) for balance adjustment after lens changes
    • VCT14-compatible V-wedge
    • 1/4"-20 and 3/8"-16 tripod mount holes
    • Ergonomic gel polymer shoulder pad
    • 15mm LWS rod adapter on the rear
    • Front rod adapter is vertically adjustable 1"; optional 1.8" riser available from Zacuto for RED cameras
    • ARRI M6 rosette
    • Three 1/4"-20 threaded holes for accessories
    • Includes two 6.5" 15mm rods
    • 1/4"-20 and 3/8"-16 screws supplied
    • Made in the USA
• Zgrip Trigger for Camera with Relocatable Rosette Grip The Zgrip Trigger for Camera with Relocatable Rosette Grip from Zacuto relocates your camera's original handgrip to a more ergonomic operating position, reducing operator fatigue. The Zgrip adjusts up to 6" for a total length of 11", setting your grip at a comfortable distance from the camera. No need to remove the camera from your shoulder when adjusting the Zgrip's angle; a push button enables you to rotate the Zgrip a full 360° with one hand. This grip attaches to your camera body or rig via an integrated ARRI-type (M6) rosette.
• LANC Extension Cable (13.8") This 13.8" LANC Extension Cable from Zacuto features a right-angle male 2.5mm mini jack and a 2.5mm female plug. This heavy-duty, 24 AWG cable is UL approved and ideal for use with select Zacuto grip relocators.
• FS5 Top Plate Offering the ability to seamlessly integrate accessories into the FS5 shooting workflow, the FS5 Top Plate from Zacuto comprises a dedicated plate with a built-in 15mm side-facing rod lock to permit attaching various 15mm rod accessories to the camera. Included with the top plate is a separate 3"-long 15mm rod for mounting accessories, such as the FS5's LCD with attached Z-Finder. Both sides of the top plate also incorporate one 3/8"-16 and five 1/4"-20 threaded mounts, as well as custom-sized screw holes for relocating the Sony cable holder and film plane marker.
• Axis Mini Monitor Mount for Sony FS5 Provided by third party: The Axis Mini for Sony FS5 is the most adjustable ENG style mount for the Sony FS5 Monitor, giving you full 360

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• VCT Pro Baseplate

  Mount Types	VCT14-compatible V-wedge 15 mm LWS rod ports in front and back 1/4"-20 and 3/8"-16 tripod mount holes 1/4"-20 and 3/8"-16 camera screws included 6.5" (16.5 cm) 15mm rods included ARRI M6 rosette Three 1/4"-20 threaded holes for accessories
  Dimensions	14.25 x 4.25 x 2" (36.2 x 10.8 x 5 cm) (with included 6.5"/16.5 cm rods)
  Weight	2.1 lb (0.96 kg)

  Box Dimensions (LxWxH)	10.75 x 7.4 x 3.45"

• Zgrip Trigger for Camera with Relocatable Rosette Grip

  Length	11.5" (29 cm)
  Adjustable Length	6" (15 cm)
  Rotation Range	360°
  Rosette Type	ARRI (M6)

  Box Dimensions (LxWxH)	8.5 x 2.0 x 1.8"

• LANC Extension Cable (13.8")

  Connectors	2.5 mm (male), 2.5 mm (female)
  Cable Length	13.8" / 35 cm

  Box Dimensions (LxWxH)	6.0 x 3.0 x 0.02"

• FS5 Top Plate

  Box Dimensions (LxWxH)	6.1 x 4.2 x 1.5"

• Axis Mini Monitor Mount for Sony FS5

  Accessory Type	Motion control extension arm

  Intended For	Camcorder, 15 mm rod
  Features	1/4"-20 screw

  Designed for	Sony XDCAM PXW-FS5, PXW-FS5K

  Box Dimensions (LxWxH)	5.6 x 5.1 x 2.0"
