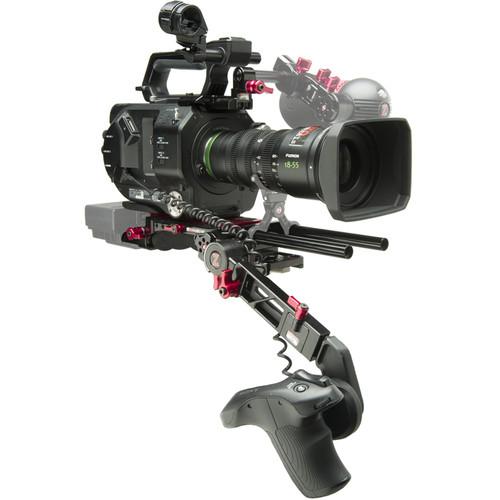

Zacuto Sony FS7 Recoil Pro with

User Manual for Zacuto Sony FS7 Recoil Pro with VCT Pro Baseplate

• Product category: Camcorder Supports & Rigs Zacuto
• Brand: Zacuto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zacuto Camcorder Supports & Rigs

Product description

• VCT Pro Baseplate With built-in ergonomic shoulder pad, 10" sliding track, extra space for accessories in front, VCT14-compatible V-wedge, red buttons and levers all around, and much more, this is the stylish VCT Pro Baseplate from Zacuto. Use it with all types of cameras, from DSLRs to larger models, like the Alexa.

  A section of the baseplate extends out beyond the 15mm LWS rod adapter in front. With the rod adapter thus set back, you have additional space to mount accessories under the camera lens, allowing you to position the camera further back on the plate, keeping the balance point of your rig directly over your shoulder. (The rod adapter is vertically adjustable 1", and has to be in a raised position to allow for accessories to be mounted in the additional space. Also, a 1.8" riser for the rod adapter is optionally available for RED cameras by special order from Zacuto.) Also, on the bottom of the section that protrudes out is where the V-wedge is. There is also a 15mm LWS rod adapter on the rear.

  The VCT Pro Baseplate features a 10" sliding track, providing the space to optimally adjust balance after every lens change. Moreover, the included red camera plate can be loosened by a spring-loaded lever instead of a screw, so you can make adjustments quickly and easily. To fully release and remove the plate (and camera), just press a red button on the side of the baseplate and slide the plate out. The rod ports also have spring-loaded levers.

  An ARRI M6 rosette is available on the front for attaching accessories and grips, and there are also three 1/4"-20 threaded holes on the side providing additional mounting options. 1/4"-20 and 3/8"-16 tripod mount holes are available on the bottom to use instead of the V-wedge. The shoulder pad runs pretty much along the entire length as well as width of the baseplate, and is made of gel polymer. Two 6.5" 15mm rods are included. One 1/4"-20 and one 3/8"-16 screw are supplied for the camera plate. The VCT Pro Baseplate is made in the USA.
  Key Features
  • • Front rod adapter is set far back, providing more space for accessories, and allowing the camera to be positioned further back for better balance
    • 10" sliding track (with spring-loaded lever) for balance adjustment after lens changes
    • VCT14-compatible V-wedge
    • 1/4"-20 and 3/8"-16 tripod mount holes
    • Ergonomic gel polymer shoulder pad
    • 15mm LWS rod adapter on the rear
    • Front rod adapter is vertically adjustable 1"; optional 1.8" riser available from Zacuto for RED cameras
    • ARRI M6 rosette
    • Three 1/4"-20 threaded holes for accessories
    • Includes two 6.5" 15mm rods
    • 1/4"-20 and 3/8"-16 screws supplied
    • Made in the USA
• Axis Mini for Sony FS7 The Axis Mini for Sony FS7 from Zacuto is an adjustable ENG-style mount used to attach the FS7's monitor, or a separately available EVF like Gratical HD. With four adjustment points and independently controlled red tension levers, the Axis Mini makes changing the position of the monitor/EVF quick and easy, whether the camera is shoulder mounted or on a tripod. It mounts to the camera using an included FS7 Rod Lock, which screws into the body in front of the top handle. The Axis Mini simply slides into the extra 15mm rod port on the Rod Lock and clamp it into place.
  Features
  • • Rosette for mounting FS7 monitor, Gratical HD, or other compatible monitor/EVF
    • Four points of adjustment
    • Three independently controlled red tension lever with 360° rotation
    • Mounts on top of camera body using the included FS7 Rod Lock
• Zgrip Trigger for Sony FS7 The Zgrip Trigger for Sony FS7 from Zacuto relocates your FS7's original Sony handgrip to a more ergonomic operating position, reducing operator fatigue. The Zgrip adjusts up to 6" for a total length of 11", setting your grip at a comfortable distance from the camera. No need to remove the camera from your shoulder when adjusting the Zgrip's angle; a push button enables you to rotate the Zgrip a full 360° with one hand. This grip attaches to your camera body or rig via an integrated ARRI-type (M6) rosette.

• 2 x 6.5" 15mm Rods

• 1/4"-20 Camera Screw

• 3/8"-16 Camera Screw

• Limited Lifetime Warranty

• 15mm Rod Lock with Top Plate for Sony PXW-FS7

• Limited Lifetime Warranty

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• VCT Pro Baseplate

  Mount Types	VCT14-compatible V-wedge 15 mm LWS rod ports in front and back 1/4"-20 and 3/8"-16 tripod mount holes 1/4"-20 and 3/8"-16 camera screws included 6.5" (16.5 cm) 15mm rods included ARRI M6 rosette Three 1/4"-20 threaded holes for accessories
  Dimensions	14.25 x 4.25 x 2" (36.2 x 10.8 x 5 cm) (with included 6.5"/16.5 cm rods)
  Weight	2.1 lb (0.96 kg)

  Box Dimensions (LxWxH)	10.75 x 7.4 x 3.45"

• Axis Mini for Sony FS7

  Box Dimensions (LxWxH)	6.2 x 4.1 x 1.2"

• Zgrip Trigger for Sony FS7

  Length	11.5" (29 cm)
  Adjustable Length	6" (15 cm)
  Rotation Range	360°
  Rosette Type	ARRI (M6)

  Box Dimensions (LxWxH)	6.0 x 4.3 x 2.5"
