Zacuto Sony FS7 Recoil with Dual

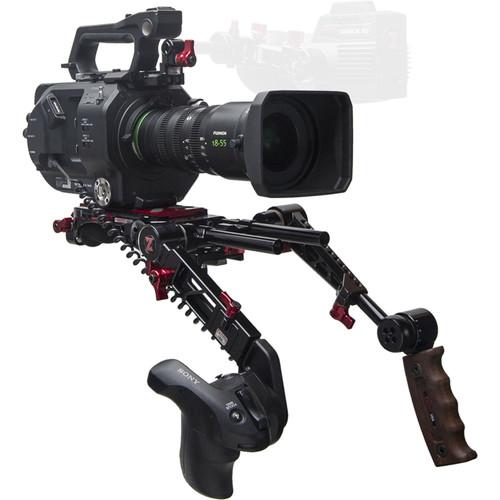

User Manual for Zacuto Sony FS7 Recoil with Dual Trigger Grips

• Product category: Camcorder Supports & Rigs Zacuto
• Brand: Zacuto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zacuto Camcorder Supports & Rigs

Product description

• VCT Pro Baseplate With built-in ergonomic shoulder pad, 10" sliding track, extra space for accessories in front, VCT14-compatible V-wedge, red buttons and levers all around, and much more, this is the stylish VCT Pro Baseplate from Zacuto. Use it with all types of cameras, from DSLRs to larger models, like the Alexa.

  A section of the baseplate extends out beyond the 15mm LWS rod adapter in front. With the rod adapter thus set back, you have additional space to mount accessories under the camera lens, allowing you to position the camera further back on the plate, keeping the balance point of your rig directly over your shoulder. (The rod adapter is vertically adjustable 1", and has to be in a raised position to allow for accessories to be mounted in the additional space. Also, a 1.8" riser for the rod adapter is optionally available for RED cameras by special order from Zacuto.) Also, on the bottom of the section that protrudes out is where the V-wedge is. There is also a 15mm LWS rod adapter on the rear.

  The VCT Pro Baseplate features a 10" sliding track, providing the space to optimally adjust balance after every lens change. Moreover, the included red camera plate can be loosened by a spring-loaded lever instead of a screw, so you can make adjustments quickly and easily. To fully release and remove the plate (and camera), just press a red button on the side of the baseplate and slide the plate out. The rod ports also have spring-loaded levers.

  An ARRI M6 rosette is available on the front for attaching accessories and grips, and there are also three 1/4"-20 threaded holes on the side providing additional mounting options. 1/4"-20 and 3/8"-16 tripod mount holes are available on the bottom to use instead of the V-wedge. The shoulder pad runs pretty much along the entire length as well as width of the baseplate, and is made of gel polymer. Two 6.5" 15mm rods are included. One 1/4"-20 and one 3/8"-16 screw are supplied for the camera plate. The VCT Pro Baseplate is made in the USA.
  Key Features
  • • Front rod adapter is set far back, providing more space for accessories, and allowing the camera to be positioned further back for better balance
    • 10" sliding track (with spring-loaded lever) for balance adjustment after lens changes
    • VCT14-compatible V-wedge
    • 1/4"-20 and 3/8"-16 tripod mount holes
    • Ergonomic gel polymer shoulder pad
    • 15mm LWS rod adapter on the rear
    • Front rod adapter is vertically adjustable 1"; optional 1.8" riser available from Zacuto for RED cameras
    • ARRI M6 rosette
    • Three 1/4"-20 threaded holes for accessories
    • Includes two 6.5" 15mm rods
    • 1/4"-20 and 3/8"-16 screws supplied
    • Made in the USA
• Sony FS7 Dual Trigger Grips The Sony FS7 Dual Trigger Grips from Zacuto are a 15mm LWS rod mount handgrip set featuring one wooden handgrip and one grip relocator for the Sony FS7 camera grip. Each can be individually rotated a full 360° at the press a dedicated lever — there is no need to screw or unscrew any knob or lever but rather just press it on the fly. Furthermore, the wooden component of the wooden handgrip can also be adjusted forward and backward at the press of another lever.

  The wooden handgrip secures into a sleeve and can be adjusted in length within the sleeve by loosening a lever. Scale markings are available on top to allow you to easily match up the positions of the wooden handgrip and the grip relocator.
  Key Features
  • • 15mm LWS rod mount handgrip set
    • Includes a wooden handgrip and a grip relocator for the Sony FS7 camera grip
    • 360° rotation at the press of a lever — no screwing/unscrewing
    • Forward/backward adjustment / length adjustment for the wooden handgrip
    • Scale markings for easily matching the positions of the handgrips
• Axis Mini for Sony FS7 The Axis Mini for Sony FS7 from Zacuto is an adjustable ENG-style mount used to attach the FS7's monitor, or a separately available EVF like Gratical HD. With four adjustment points and independently controlled red tension levers, the Axis Mini makes changing the position of the monitor/EVF quick and easy, whether the camera is shoulder mounted or on a tripod. It mounts to the camera using an included FS7 Rod Lock, which screws into the body in front of the top handle. The Axis Mini simply slides into the extra 15mm rod port on the Rod Lock and clamp it into place.
  Features
  • • Rosette for mounting FS7 monitor, Gratical HD, or other compatible monitor/EVF
    • Four points of adjustment
    • Three independently controlled red tension lever with 360° rotation
    • Mounts on top of camera body using the included FS7 Rod Lock
• LANC Extension Cable (13.8") This 13.8" LANC Extension Cable from Zacuto features a right-angle male 2.5mm mini jack and a 2.5mm female plug. This heavy-duty, 24 AWG cable is UL approved and ideal for use with select Zacuto grip relocators.

• 2 x 6.5" 15mm Rods

• 1/4"-20 Camera Screw

• 3/8"-16 Camera Screw

• Limited Lifetime Warranty

• Limited 1-Year Warranty

• 15mm Rod Lock with Top Plate for Sony PXW-FS7

• Limited Lifetime Warranty

• Limited 1-Year Warranty
