Product description - Z-Drive, Follow Focus & Tornado

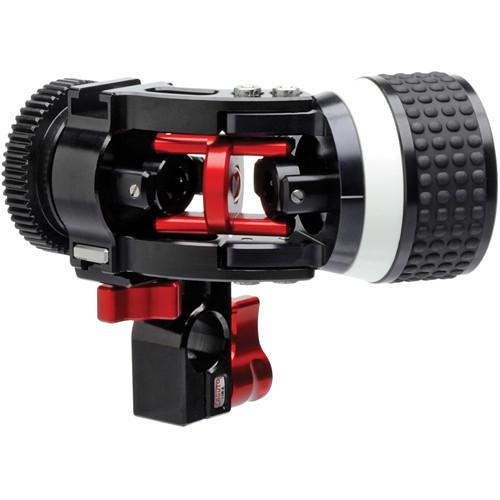

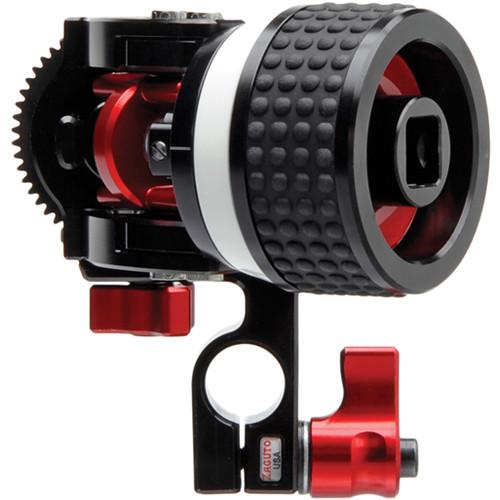

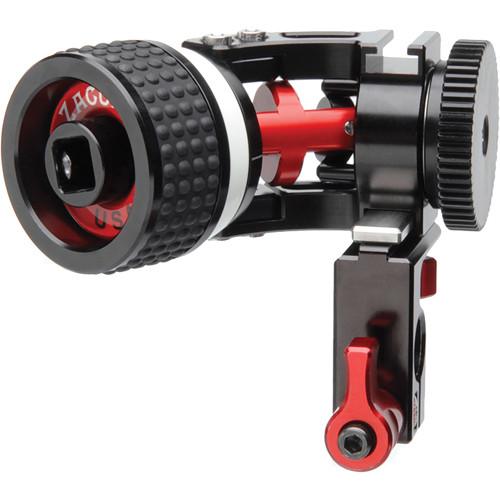

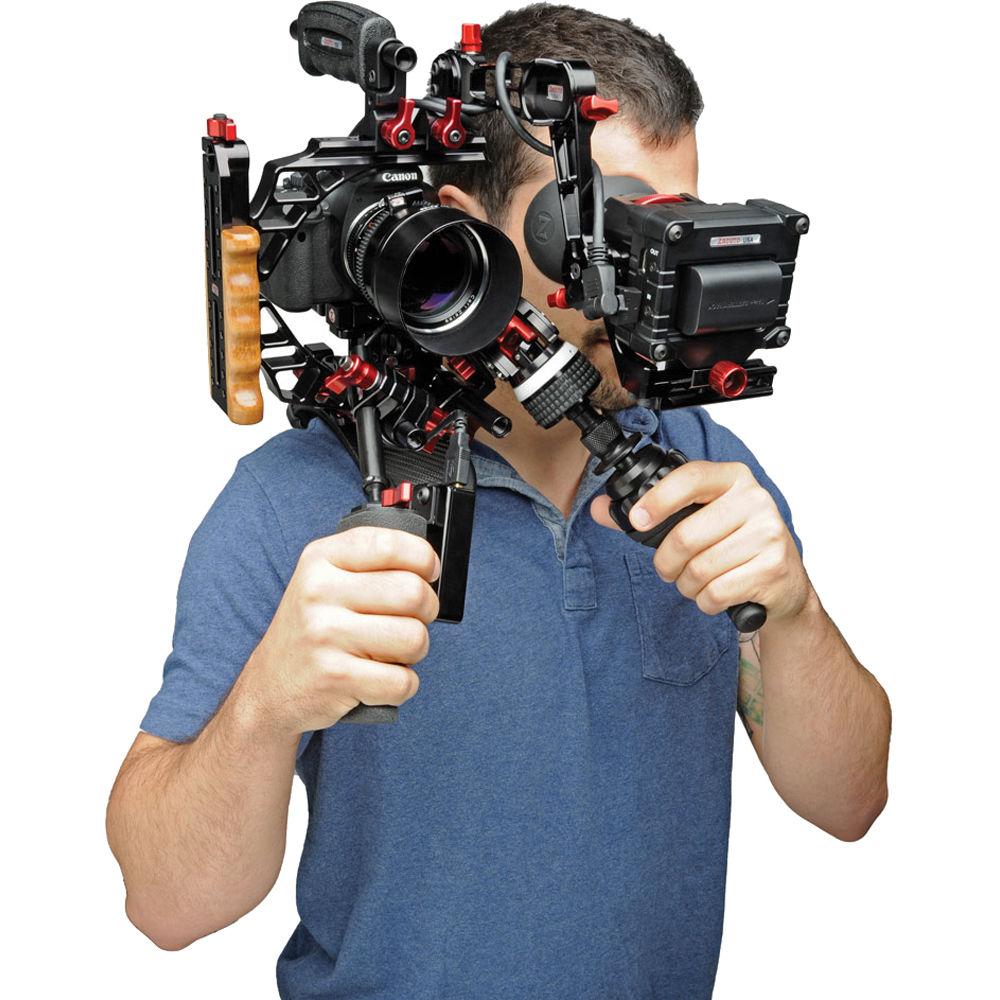

The Zacuto Z-Drive is a follow focus unit designed for single-operator shoulder mounted rigs. It attaches to a single 15mm rod and features a curved design that creates space and distance from the lens. This extra space provides for more comfortable use when the camera rig is on your shoulder.

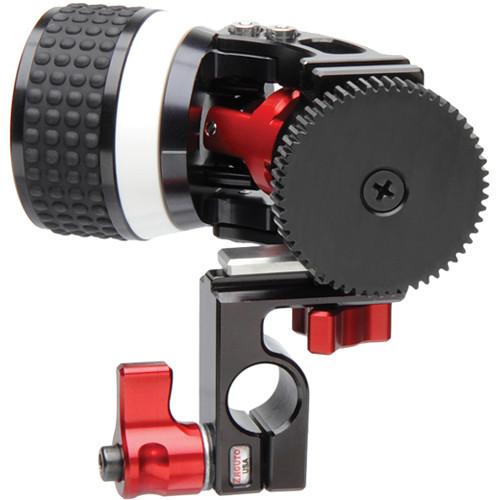

The Z-Drive is adjustable for use with a variety of lens sizes, and can be operated on either side of your rig, facing either towards the lens, or backward toward the operator for use with a standard focus whip when on a tripod or dolly. It slides onto a single 15mm rod and tightens into place with a quick-release ratcheting lever. It can also be adjusted towards and away from your lens via a red thumb screw, for use with a variety of lens diameters.

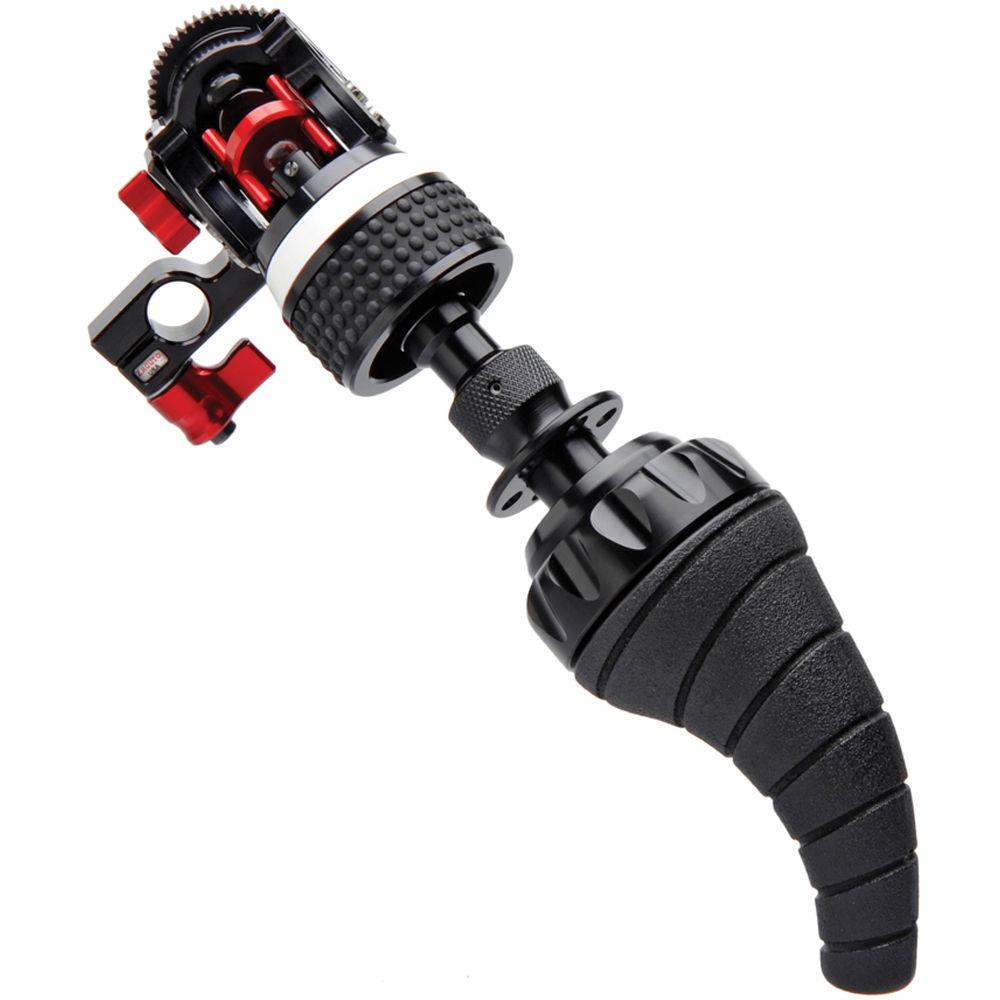

The Z-Drive has a fixed 0.8 pitch gear for connecting to your lens. For lenses that don't have 0.8 pitch gears, like most DSLR lenses, Zacuto ZipGears are available, sold separately. Also available is the Zacuto Tornado, which attaches to the Z-Drive's whip port and provides a mechanical follow focus handgrip.
Please note: The Z-Drive is not compatible with matte boxes. - Slender marking disc for repeatable focus pulls
- Standard accessory port for Zacuto, Chrosziel, and Arri whips / cranks
- Universal joint and no internal gears, so it won't develop any play
In the Box Zacuto Z-Drive Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto Z-Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZacuto Z-DRV Specs | Rod Compatibility | Mounts on single 15mm rod | | Gear Drive | 1.75", 0.8 pitch | | Dimensions | 5.0 x 2.5 x 2.0" (12.7 x 6.4 x 5.1 cm) | | Weight | 10.4 oz (294.8 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.1 x 4.3 x 2.2" |
