Product description See HDSLR Video Clearly with the Zacuto Z-Finder EVF Read More - Zacuto DSLR Rigs: Part 1
- Zacuto DSLR Rigs: Part 2
- Zacuto DSLR Rigs: Part 3

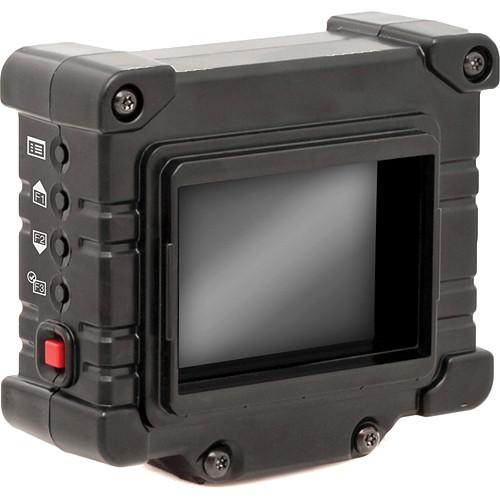

The Zacuto Z-EVF-1S EVF Snap is a 3.2” high resolution monitor, compatible with the Z-finder view finder series and displays images at a resolution up to 800 x 480. Allowing you to operate with virtually any camera with an HDMI output, including the Canon C100/C300/C500, Sony FS100, Sony F3, Scarlet, Red One & Epic, Panasonic AG-AF100, it allows you to operate your DSLRs with correct form factor for video. With 2 class “A" HDMI ports, the EVF Snap supports loop through to another monitor or device.
With exposure assist feature, the EVF allows you set 2 separate IRE levels for displaying images. With focus assist (peaking), it enhances edge sharpening, which allows the object in focus to stand out. Featuring a blue only mode, the monitor assists in calibration by providing the ability to view SMTPE color bars.
The EVF Snap monitor supports viewing of anamorphic images produced by anamorphic lenses and has frame line generators that include 1.33:1 (4x3), 1.66:1 (15x9), 1.78:1 (16x9), 1.85:1 (35mm theatrical), 2.35:1 (Cinemascope), and a "rule of thirds" grid aspect ratio frame lines. You can manually scale images or even recall presets from the camera, and control over brightness and contrast for a clear and precise display.
Displaying the level of audio being recorded via audio meters, the EVF Snap has a battery level indicator that gives you an indication of the charge available in the battery. It has 3 assignable function buttons and provides live preview while changing menu items, which results in effective operation. - 3.2" high resolution monitor
- Compatible with Z-finder view finder series
- Displays images at a resolution up to 800 x 480
- Allows you to operate with any camera with HDMI output
- Allows you to operate your DSLRs with correct form factor for video
- 2 class "A" HDMI ports support loop through to another monitor or device
- Exposure assist - allows you to set 2 separate IRE levels
- Enhances edge sharpening that allows the object in focus to stand out
- Supports viewing of anamorphic images produced by anamorphic lenses
- Recall presets from the camera
- Allows you to control over brightness and contrast for a clear and precise display
- 3 assignable function buttons
- Provides live preview while changing menu items, which results in effective operation
UPC: 654367784747 In the Box Zacuto Z-EVF-1S EVF Snap 3.2" Monitor HDMI Cable Rechargeable Battery Battery Charger Hotshoe EVF Mount 1/4 20" Mounting Thread Limited 1-Year Warranty Manual PDF 8mbcfazcvycxvwax Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto Z-EVF-1S EVF Snap in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZacuto Z-EVF-1S Specs | Display | 3.2" TFT LCD IPS LED | | Resolution | 800 x 480 | | Color | 16M | | Viewing Angle | H: 170º / V: 170º | | Display Viewing Area | 70.6mm (H) x 42.76mm (V) | | Power | Battery: 7.2v Canon LP-E6 or equivalent
External: 12v Power adaptor (optional) | | Video Input/Output | HDMI: 480i / 480p / 576p / 720p / 1080i | | Operating Temperature | -4 to 158º F (-20C to 70º C) | | Storage Temperature | -22 to 176º F (-30 to 80º C) | | Power Consumption | 2.5w (5.20 hours with a 1800mAH Battery) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 10.0 x 7.1 x 3.7" |
