User Manual for Zacuto Z-Finder Pro 2.5x Kit for Tall DSLRs Click to enlarge the picture
Contents of the user manual for the Zacuto Z-Finder Pro 2.5x Kit for
- Product category: LCD Hoods & Shades Zacuto
- Brand: Zacuto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zacuto LCD Hoods & Shades
|
User manual for the Zacuto Z-Finder Pro 2.5x Kit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zacuto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zacuto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zacuto product will considerably shorten its lifespan!
|

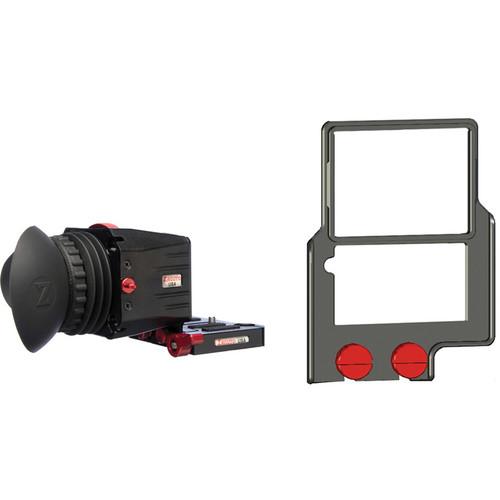

Product description The Z-Finder Pro 2.5x Kit for Tall DSLRs includes the 2.5x magnification viewfinder plus a mounting frame for DSLRs with taller bodies, such as the Canon 1D Mark IV and Nikon D3S. As with the standard Z-Finder Pro package, this kit also includes a Gorilla Plate, small-body mounting frame, 3 focal extender frames, eyecup, lanyard, lens cap, and protective boot. - Zacuto Z-Finder Pro 2.5x
- Zacuto DSLR Rigs: Part 1
- Zacuto DSLR Rigs: Part 2
- Zacuto DSLR Rigs: Part 3
Zacuto's Z-Finder Pro 2.5x optical viewfinder is a necessary tool for shooting sharp, stable video on DSLR cameras like the Canon 5D MkII, 7D, Nikon D90, D300s and others. Whether shooting handheld or on a tripod, the Z-Finder Pro turns your camera's 3" LCD screen into a clear, easy-to-focus viewfinder that lets you see your image in magnified detail even under the brightest sunlight. Just as crucially, the Z-Finder Pro provides an extra degree of handling comfort and a crucial point of contact--between camera and eye--that adds stability to any handheld video. The Pro 2.5x version offers an adjustable diopter that enlarges the LCD image by a factor of 2.5, so you can see every detail for pinpoint focus. The diopter's extended range of -4.75 and up makes it especially useful for those who are nearsighted. The Z-Finder attaches to your camera via the included Gorilla Baseplate and mounting frame, which mount to the bottom of your camera using a standard 1/4"-20 screw. A non-stick rubber backing ensures a tight fit and prevents scratching of the LCD screen, so that the entire Z-Finder snaps off easily when not in use. Once detached, the unit can hang conveniently around your neck from the included lanyard. Note: For use with taller-bodied cameras such as the Canon 1D Mark IV and Nikon D3S, an optional Z-MFT mounting frame is required. - 40mm diameter lens for excellent light throughput
- Allows DSLR cameras to have correct form factor for video
- Field of view perfectly matches 3" LCD screen size
- Diopter range is -4.75 and up (unlimited with extender frames)--ideal for nearsighted shooters 1
Please Note: The Z-finder is a magnifier and as such will magnify the sun and could damage the LCD screen if the sun is allowed to shine directly through the Z-finder lens. This is not a defect but a physical property. Caution should be taken to avoid sun magnification. close UPC: 654367035931 - Zacuto Z-Finder Mounting Frame for Tall DSLR Bodies
- Zacuto DSLR Rigs: Part 1
- Zacuto DSLR Rigs: Part 2
- Zacuto DSLR Rigs: Part 3
The Zacuto Z-Finder Mounting Frame for Tall DSLR Bodies is required when mounting a Z-Finder to larger cameras, such as the Canon 1D Mark IV and the Nikon D3s, with 3" LCD screens. The frame attaches to a required Gorilla Plate using two thumb screws; then, with the frame's rubber edges pressing snugly against the LCD screen, the Z-Finder can snap quickly into the frame and be just as easily removed. - Works with Z-Finder Pro 2.5x, 3x, and Jr. (Gorilla Plate not included with Z-Finder Jr.--must be purchased separately)
- Made of aircraft aluminum
- Non-stick rubber coating seals off light and prevents scratching of camera
In the Box - Z-Finder Pro 2.5x szqvqzvzdxab
- Z-Finder Mounting Frame for Small DSLR Bodies
- Gorilla Plate V2
- 3 x Extender Frames
- Lens Cap & Protective Boot
- Lanyard and Lanyard Hook
- 2.5x Lens with Anti-Fog Coating Protective Cover
- Additional Anti-Fog Coating Protective Cover
- Eyecup
- Lifetime Warranty
- Z-Finder Mounting Frame for Tall DSLR Bodies
Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto Z-Finder Pro 2.5x Kit for Tall DSLRs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Zacuto Z-Finder Pro 2.5x
| | | Box Dimensions (LxWxH) | 12.35 x 9.1 x 6.35" | - Zacuto Z-Finder Mounting Frame for Tall DSLR Bodies
| Compatibility | For taller-body DSLRs with 3" LCD screens, including the Canon 1D Mark IV and Nikon D3s | | | | Box Dimensions (LxWxH) | 7.5 x 4.0 x 0.03" |
