User Manual for Zacuto Z-Finder V2 for Sony FS7 and FS7 II Click to enlarge the picture
Contents of the user manual for the Zacuto Z-Finder V2 for Sony FS7
- Product category: LCD Hoods & Loupes Zacuto
- Brand: Zacuto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zacuto LCD Hoods & Loupes
 |
User manual for the Zacuto Z-Finder V2 for Sony FS7 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zacuto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zacuto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zacuto product will considerably shorten its lifespan!
|

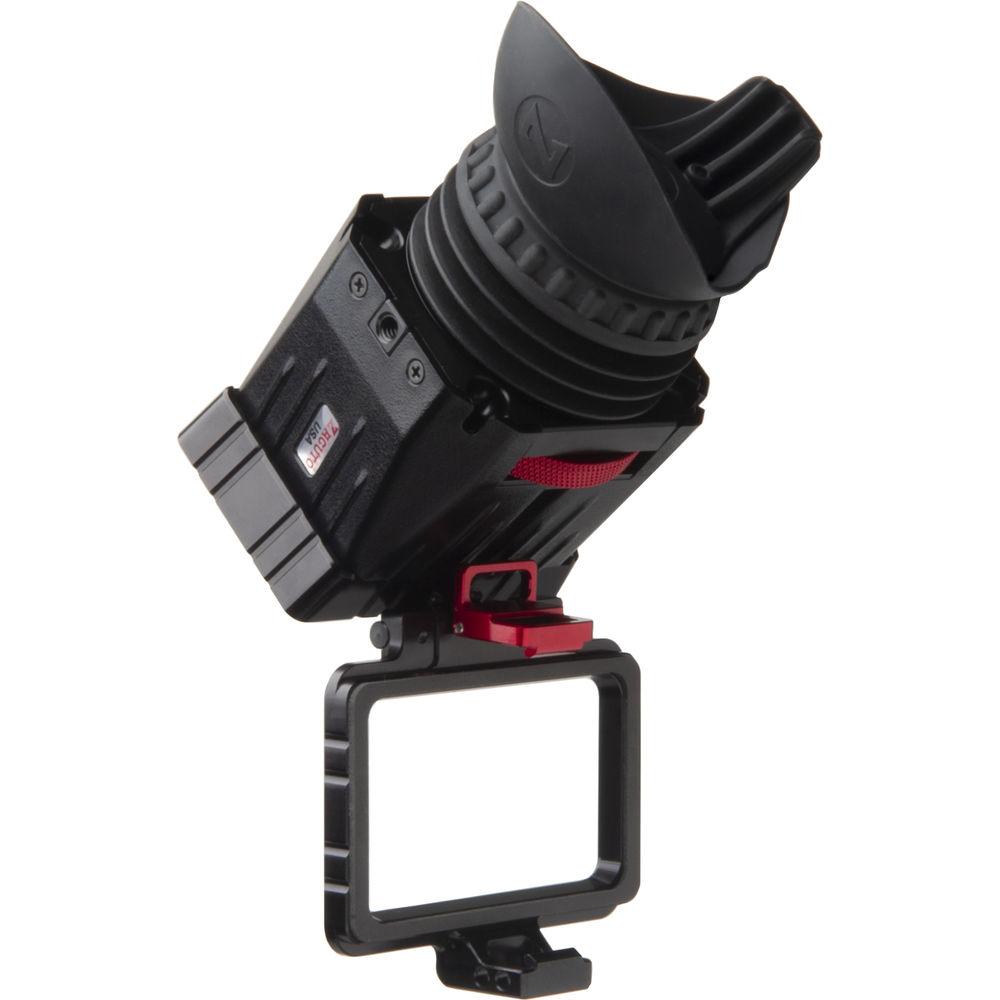

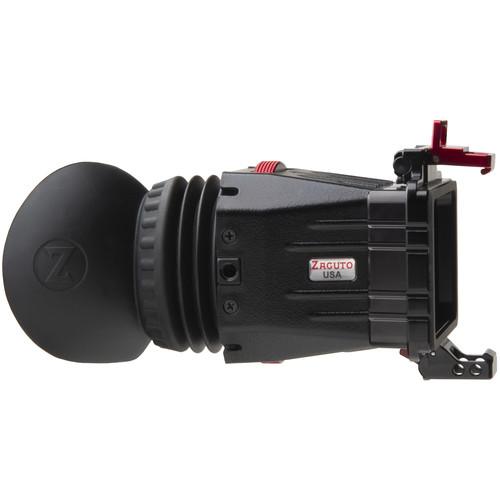

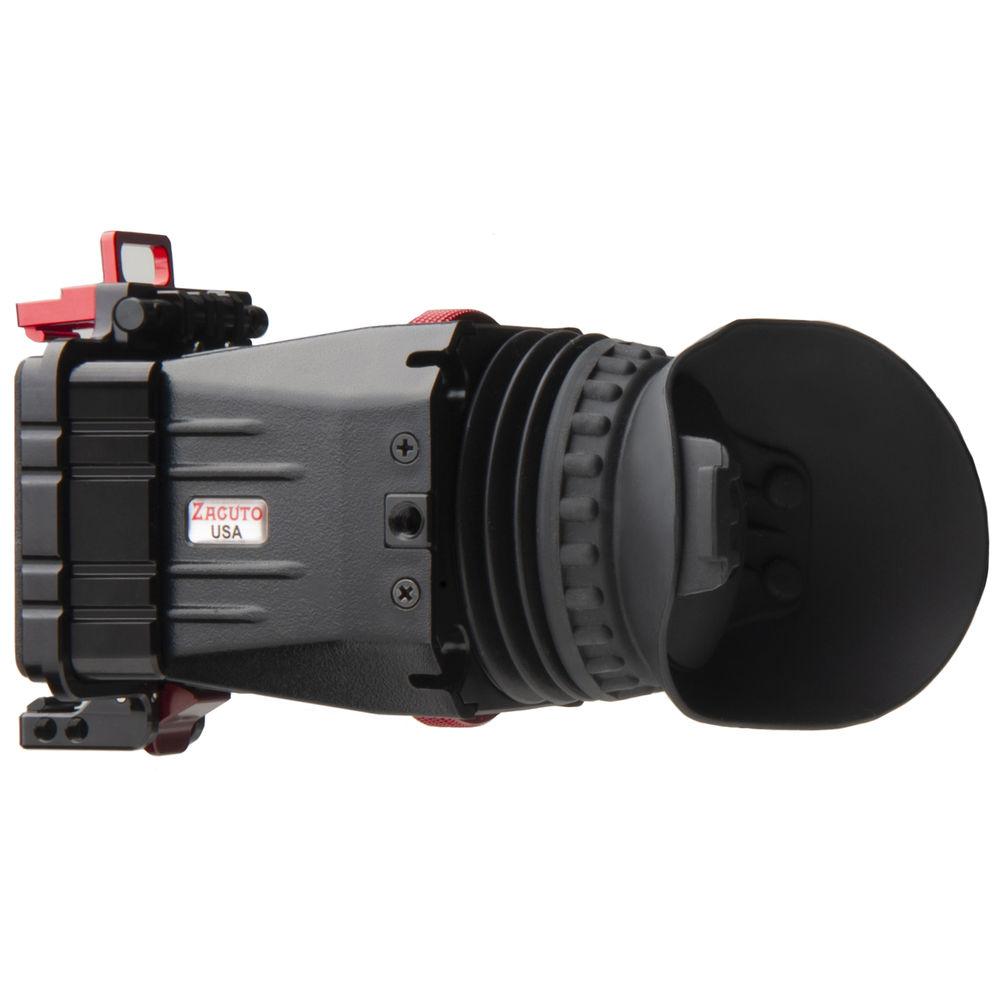

Product description The Zacuto Z-Finder V2 is specifically made for use with Sony FS7 and FS7 II cameras. This flip-up Z-Finder loupe securely mounts on your camera's LCD screen and prevents ambient light from interfering with your view of the monitor. It forms a sturdy connection to the LCD, which gives you an additional point of stability when hand-holding the camera. The Z-Finder's design permits quickly flipping the loupe up and out of the way to 140° so you can use the LCD without removing the Z-Finder from the camera.
The Z-Finder is made with a 40mm optical lens and magnifies your screen by 2x. The built-in, adjustable antifog-coated diopter and included extender frames accommodate operators that need a diopter setting of -4 to 0. Optional drop-in antifog diopters of -1, +1, +2, +3, and +4 are available from Zacuto and extend the range of correction. Since the lens magnifies any light that enters it also magnifies sunlight, so use the included drop-in sun mask to protect your LCD, and flip the built-in lens cap closed to protect your Z-Finder from sun damage when not in use. - The Z-Finder is designed specifically for the Sony FS7 and FS7 II and will not work with any other camera.
- The loupe mounts on your camera's LCD and can be used as a finder, or it can easily flip it up to 140° out of the way of the LCD.
- The loupe has a 2x magnification and diopter adjustment. Combined with the included extender frames it supports operators that use a diopter correction of -4 to 0.
- Optional drop-in anti-fog diopters with corrections of -1, +1, +2, +3, and +4 are available separately from Zacuto.
- The built-in lens cap and drop-in sun mask should be used when shooting exteriors to help prevent damage from the sun.
In the Box Zacuto Z-Finder V2 for Sony FS7 and FS7 II Set of Extender Frames Sun Mask Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto Z-Finder V2 for Sony FS7 and FS7 II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZacuto Z-Finder Specs | Material of Construction | Aluminum, optical glass | | Compatibility | Sony FS7 and FS7 II cameras | | Tilt Angle | 140° | | Lens Diameter | 40mm | | Magnification | 2x | | Diopter Range | -4 to 0 | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
