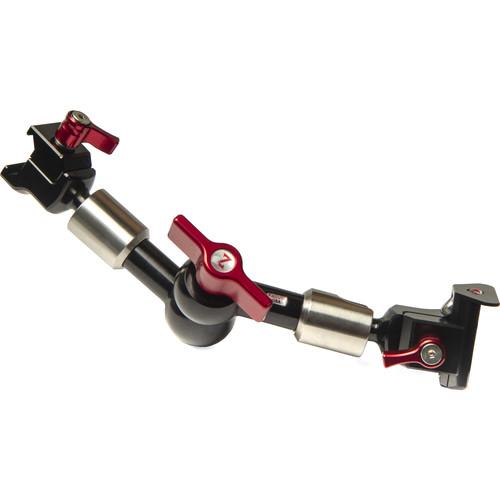

Product description The small Zacuto Zamerican Z-Rail Arm is a 6" articulating arm designed for the Zacuto Z-Rail system. It's also compatible with NATO, SWAT, RED, Picatinny, and Wooden Camera rails. The arm features an integrated Z-Rail slot on each end to allow for a quick release workflow.
Mount one end to a Z-Rail accessory such as a Z-Rail top handle. Attach the other end to the included Mini Z-Rail, which screws onto monitors, lights, and other devices or accessories with a 1/4"-20 threaded hole. The idea is that you can purchase additional Mini Z-Rails, attach each to a different device, and swap out the devices on the arm. The Mini Z-Rail is designed with an anti-twist ledge to prevent twisting.
The arm supports up to 10 lb loads. It's made with chrome balls for smooth movement, aluminum ends for rust prevention, and stainless steel for sturdy support. The central red knob controls the central pivot point and the two ball joints. - Key Features
-
- Integrated Z-Rail slot on the ends
- Compatible with the Zacuto Z-Rail system and with NATO, SWAT, RED, Picatinny, and Wooden Camera rails
- Interchangeable Mini Z-Rail (with an anti-twist ledge) is included for attaching devices/accessories with a 1/4"-20 threaded hole
- 10 lb payload
In the Box Zacuto Zamerican Z-Rail Arm (Small) Mini Z-Rail ddwxefrrtbwzfstywrrfrsvrf Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zacuto Zamerican Z-Rail Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZacuto Z-SARM Specs | Load Capacity | 10 lb / 4.54 kg | | Top Mount | NATO Rail Slot | | Bottom Mount | NATO Rail Slot | | Points of Articulation | 3 | | Maximum Length | 6" / 15.2 cm | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
