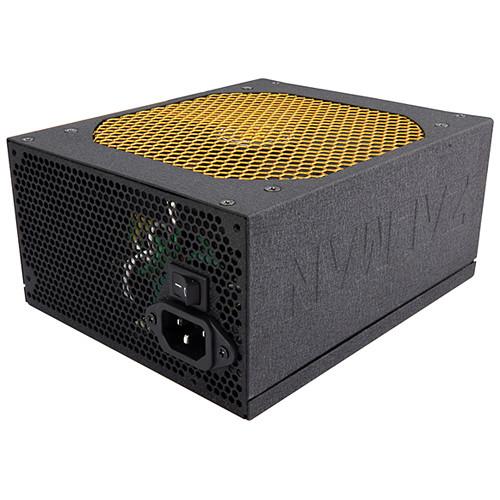

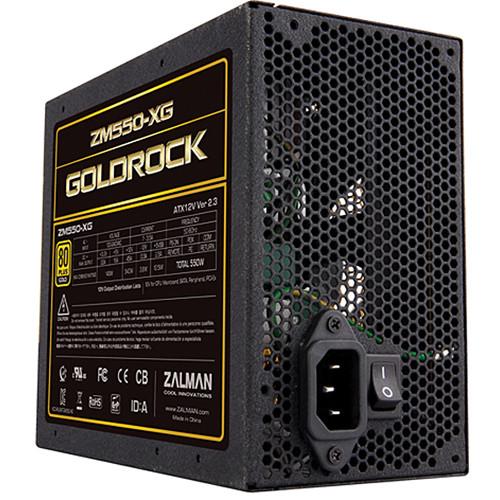

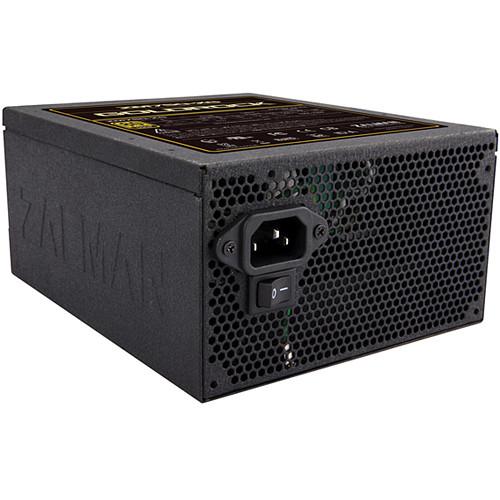

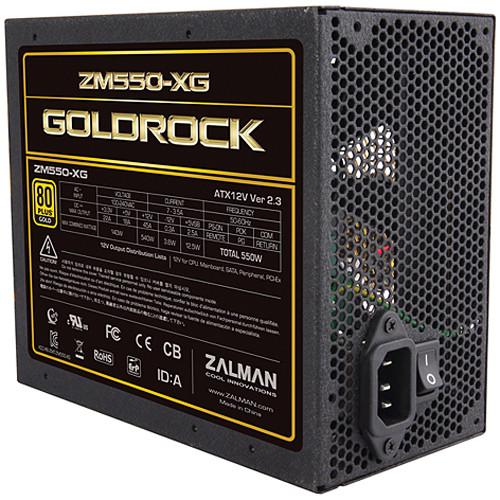

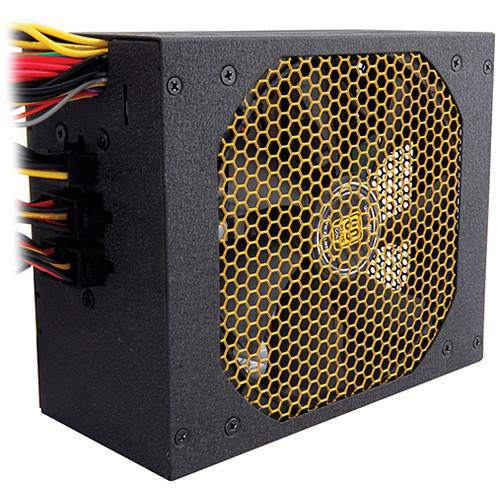

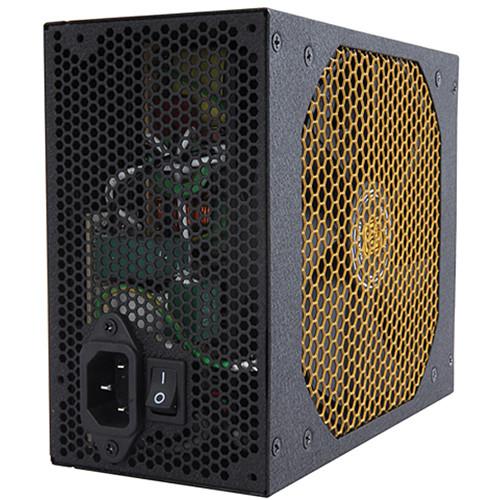

User Manual for ZALMAN USA ZM550 550W Gold Rock Modular Power Supply Click to enlarge the picture
Contents of the user manual for the ZALMAN USA ZM550 550W Gold Rock
- Product category: Power Supplies ZALMAN USA
- Brand: ZALMAN USA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZALMAN USA Power Supplies
 |
User manual for the ZALMAN USA ZM550 550W Gold Rock contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZALMAN USA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZALMAN USA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZALMAN USA product will considerably shorten its lifespan!
|
Product description The ZM550 550W Gold Rock Power Supply from Zalman USA is an 80 PLUS Gold certified power supply that uses high quality components for stable performance and power efficiency. This 550W power supply comes with a modular cable design to reduce cable clutter, and a smart fan control system that delivers silent cooling so that the entire computer and power supply can operate efficiently. - High quality, made in Japan 221°F solid capacitor guarantees stability at high temperatures, frequencies, and currents
- Powerful and highly reliable DC-DC module, full bridge and LLC resonant circuits applied
- Supports dual (2-way) NVIDIA SLI and AMD CrossFireX
- Built-in Active PFC circuit provides high power factor and efficiency
- Built-in circuits protect against voltage surges, current surges, power surges, low tension, short circuiting, and overheating
- Organized DC output modular cables help to increase airflow inside the case
- Smart Fan control system optimizes thermal control, while minimizing noise levels
In the Box ZALMAN USA ZM550 550W Gold Rock Modular Power Supply Screw Bolts Cable Ties AC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZALMAN USA ZM550 550W Gold Rock Modular Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZALMAN USA ZM550-XG Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin CPU
4 x 6+2-Pin PCIe
2 x 15-Pin SATA
6 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | PCIe Connector Distances | 19.7" / 500 mm
25.6" / 650 mm | | SATA Connector Distances | 19.7" / 500 mm
25.6" / 650 mm
31.5" / 800 mm | | Peripheral Connector Distances | 19.7" / 500 mm
25.6" / 650 mm
31.5" / 800 mm | | Floppy Connector Distances | 37.4" / 950 mm | | ATX Connector Distance | 21.7" / 550 mm | | EPS Connector Distances | 25.5" / 650 mm | | | | Total Wattage | 550 W | | Combined Power for +12 V | 540 W | | Max Load for +12 V | 0.3 to 45 A | | Combined Power for +3.3/+5 V | 140 W | | Max Load for +3.3 V | 0.2 to 22 A | | Max Load for +5 V | 0.2 to 18 A | | Max Power for +5 Vsb | 12.5 W | | Max Load for +5 Vsb | 2.5 to 3.5 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 3.5 to 7 A | | Voltage Regulation | +3.3 V:
