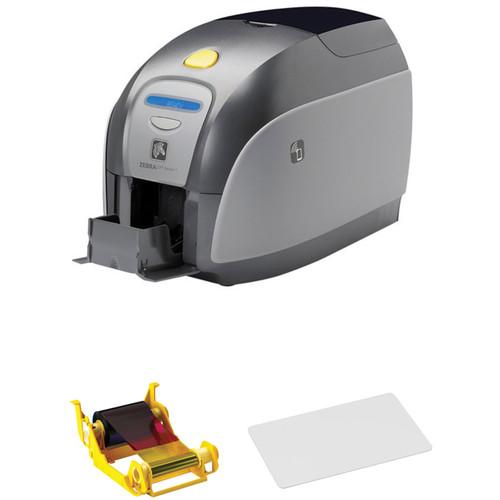

User Manual for Zebra ZXP Series 1 Single-Sided Card Printer with YMCKO Ribbon & 500 Cards Kit

• Product category: ID Card Printers Zebra
• Brand: Zebra
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Zebra ID Card Printers

Product description

• Zebra ZXP Series 1 Single-Sided Card Printer The Zebra ZXP Series 1 Single-Sided Card Printer System is a capable 300 dpi dye-sublimation printer that can produce 130 single-sided YMCKO cards every hour or 545 monochrome cards per hour. It works with CR-80 size PVC and composite media and can print edge-to-edge. The Series 1 printer also utilizes a 100 card covered feeder and 45 card output hopper to handle batch print jobs easily and without worry.

  The ZXP Series 1 features a Print Touch NFC tag that allows you to tap and connect to a compatible mobile device in order to open up documentation on the printer. The printer is also able to have optional upgrades installed and it has a 16 character LCD display for convenience. Additionally, there is a Kensington security lock slot and USB 2.0 connectivity.
  • Auto-switching single-phase AC power supply
  • Auto calibration of ribbon
  • Load-N-Go high-performance ribbons with intelligent media technology
  • Zebra ZRaster host-based image processing technology produces quality prints at high speeds
  • Smart card and magnetic stripe encoding options
  • Works with cards from 10-40 mil thick
• Zebra ZXP Series 1 YMCKO Full Color Ribbon This Zebra ZXP Series 1 YMCKO Full Color Ribbon is designed for the ZXP Series 1 card printers and produces up to 100 prints. It features Load-N-Go intelligent media technology for automatic ribbon detection and optimized imaging. Additionally, it is eco-friendly and includes a cleaning roller for maintenance.
  Compatible Printers
  • ZXP Series 1 card printers
• IDC CR-80 PVC Cards (30 mil Thick, 500 Cards) Create sharp, vibrant IDs with this 500-card pack of CR-80/30 PVC Cards from IDC. These CR-80 size PVC cards are 30 mil thick and can be used with most card printers.

• ZXP Series 1 Single-Sided Card Printer
• Cleaning Kit
• Power Cord
• Power Supply
• USB Cable
• Software CD-ROM
• Limited 2-Year Warranty

• ZXP Series 1 YMCKO Full Color Ribbon

• IDC - CR-80 PVC Cards (30 mil Thick, 500 Cards)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Zebra ZXP Series 1 Single-Sided Card Printer

  Printing Technology	Dye sublimation thermal transfer direct to card
  Maximum Resolution	300 dpi
  Ink Palette	YMCKO (Yellow, magenta, cyan, black, overlay)

  Print Speed	Single-Sided, Monochrome: 545 cards per hour Single-Sided, YMCKO: 130 cards per hour
  Paper Handling	Input: 100 card covered feeder Output: 45 card hopper
  Maximum Printable Area	CR-80: 3.370 x 2.125" (85.6 x 54.0 mm)
  Paper Sizes	CR-80: 3.370 x 2.125" (85.6 x 54.0 mm)
  Borderless Printing	Yes, CR-80: 3.370 x 2.125" (85.6 x 54.0 mm)
  Duplex Printing	No
  Media Thickness	10-40 mil (0.25-1.02 mm)
  Media Types	PVC and PVC composite
  Spot Color Management	Color or monochrome print only on <20 mil (0.51 mm) card thickness
  Ribbon Options	YMCKO (100 prints) Black monochrome (1000 prints) White monochrome (500 prints)

  Computer Interface	USB 2.0
  NFC	Print Touch NFC tag for documentation and tools
  System & Software Requirements	Windows XP (32-bit), Vista (32/64-bit), Server 2003 (32-bit), 7 (32/64-bit), Server 2008 (32/64-bit), 8 & 8 Professional (32/64-bit), Sever 2012 (64-bit)

  Status Display	16-character LCD display
  Security	Kensington lock slot
  Operating Conditions	Temperature: 60 to 86°F (15 to 30°C) Humidity: 20 to 65%, non-condensing
  Storage Conditions	Temperature: 23 to 131°F (-5 to 55°C) Humidity: 20 to 70%, non-condensing Media Temperature: 41 to 77°F (5 to 25°C) Humidity: 35 to 65%, non-condensing
  Power Requirements	Auto-switching single-phase AC power supply: 90-132 and 190-264 VAC, 47-63 Hz, FCC Class A
  Dimensions (WxHxD)	9.3 x 7.9 x 14.5" (236 x 200 x 368 mm)
  Weight	11.6 lb (5.3 kg)

  Box Dimensions (LxWxH)	18.5 x 14.8 x 10.7"

• Zebra ZXP Series 1 YMCKO Full Color Ribbon

  Color	YMCKO (Yellow, magenta, cyan, black, overlay)
  Print Quantity	100

  Box Dimensions (LxWxH)	5.9 x 4.4 x 2.85"

• IDC CR-80 PVC Cards (30 mil Thick, 500 Cards)

  Quantity	500
  Size	CR-80: 3.375 x 2.125" / 85.6 x 54.0 mm
  Thickness	30 mil / 0.76 mm
  Material	PVC
  Magnetic Stripe	None
  Surface Finish	Glossy White

  Box Dimensions (LxWxH)	16.772 x 3.858 x 2.205"
