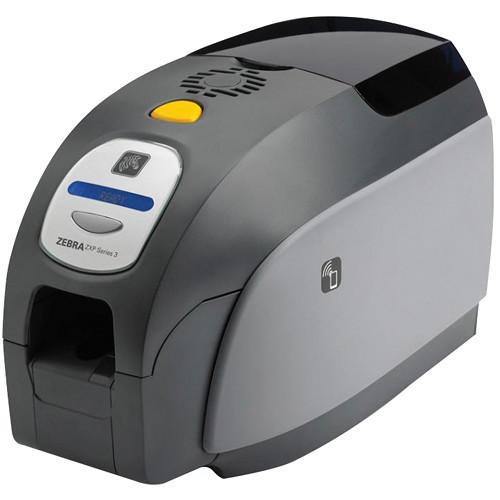

User Manual for Zebra ZXP Series 3 Dual-Sided Card Printer Click to enlarge the picture
Contents of the user manual for the Zebra ZXP Series 3 Dual-Sided Card
- Product category: ID Card Printers Zebra
- Brand: Zebra
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zebra ID Card Printers
|
User manual for the Zebra ZXP Series 3 Dual-Sided Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zebra product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zebra user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zebra product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More berrddqvuatwrfduxx The Zebra ZXP Series 3 Dual-Sided Card Printer System is a capable 300 dpi dye-sublimation printer that can produce 180 single-sided YMCKO cards every hour or 700 monochrome cards per hour, and with its duplex capabilities, this version can create 140 dual-sided full-color cards in an hour. It works with CR-80 size PVC and composite media and can print edge-to-edge. The Series 3 printer also utilizes a 100 card covered feeder and 45 card output hopper to handle batch print jobs easily and without worry.
The ZXP Series 3 features a Print Touch NFC tag that allows you to tap and connect to a compatible mobile device in order to open up documentation on the printer. The printer is also able to have optional upgrades installed and it has a 16 character LCD display for convenience. Additionally, there is a Kensington security lock slot and USB 2.0 connectivity. - Auto-switching single-phase AC power supply
- Auto calibration of ribbon
- True Colors ix Series ZXP 3 high-performance ribbons with intelligent media technology
- Zebra ZRaster host-based image processing technology produces quality prints at high speeds
- Smart card and magnetic stripe encoding options
- Works with cards from 10-40 mil thick
In the Box Zebra ZXP Series 3 Dual-Sided Card Printer Cleaning Kit Power Cord Power Supply USB Cable Software CD-ROM Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Zebra ZXP Series 3 Dual-Sided Card Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZebra ZXP Series 3 Specs | | | Printing Technology | Dye sublimation thermal transfer direct to card | | Maximum Resolution | 300 dpi | | Ink Palette | YMCKOK (Yellow, magenta, cyan, black, overlay, black) | | | | Print Speed | Single-Sided, Monochrome: 700 cards per hour
Single-Sided, YMCKO: 180 cards per hour
Dual-Sided, YMCKOK: 140 cards per hour | | Paper Handling | Input: 100 card covered feeder
Output: 45 card hopper | | Maximum Printable Area | CR-80: 3.370 x 2.125" (85.6 x 54.0 mm) | | Paper Sizes | CR-80: 3.370 x 2.125" (85.6 x 54.0 mm) | | Borderless Printing | Yes, CR-80: 3.370 x 2.125" (85.6 x 54.0 mm) | | Duplex Printing | Yes | | Media Thickness | 10-40 mil (0.25-1.02 mm) | | Media Types | PVC and PVC composite | | Media Compatibility | Smart Card Contact: ISO 7816 - 1, 2, 3, 4
Smart Card Contactless: MIFARE ISO 14443A/B | | Encoder | Magnetic Stripe: ISO 7811; tracks 1, 2, and 3; high and low coercivity; stripe down; 30 mil (0.76 mm) cards only | | Spot Color Management | Color or monochrome print only on <20 mil (0.51 mm) card thickness | | Print Quantity | YMCKO: 280 images/roll
1/2 YMCKO: 400 images/roll
YMCKOK: 230 images/roll
KdO: 700 images/roll
KrO: 700 images/roll
Black Monochrome: 2000 images/roll
Red Monochrome: 1700 images/roll
Blue Monochrome: 1700 images/roll
Gold Monochrome: 1600 images/roll
Silver Monochrome: 1600 images/roll
White Monochrome: 1400 images/roll | | | | Computer Interface | USB 2.0 | | NFC | Print Touch NFC tag for documentation and tools | | System & Software Requirements | Windows XP (32-bit), Vista (32/64-bit), Server 2003 (32-bit), 7 (32/64-bit), Server 2008 (32/64-bit), 8 & 8 Professional (32/64-bit), Sever 2012 (64-bit) | | | | Status Display | 16-character LCD display | | Security | Kensington lock slot | | Operating Conditions | Temperature: 60 to 86°F (15 to 30°C)
Humidity: 20 to 65%, non-condensing | | Storage Conditions | Temperature: 23 to 131°F (-5 to 55°C)
Humidity: 20 to 70%, non-condensing
Media
Temperature: 41 to 77°F (5 to 25°C)
Humidity: 35 to 65%, non-condensing | | Power Requirements | Auto-switching single-phase AC power supply: 90-132 and 190-264 VAC, 47-63 Hz, FCC Class A | | Dimensions (WxHxD) | 9.3 x 7.9 x 14.5" (236 x 200 x 368 mm) | | Weight | 11.6 lb (5.3 kg) | | | | Package Weight | 16.45 lb | | Box Dimensions (LxWxH) | 18.7 x 15.0 x 10.2" |
