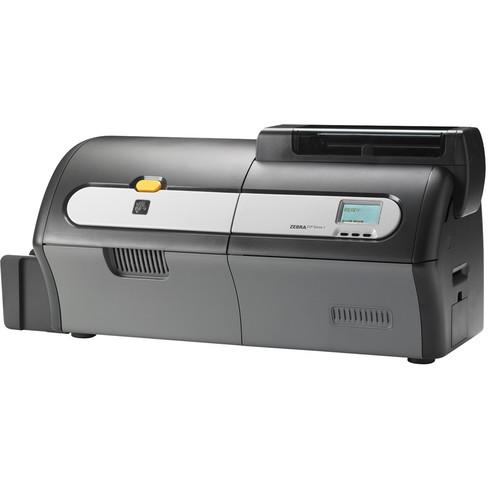

User Manual for Zebra ZXP Series 7 Double-Sided Card Printer Click to enlarge the picture
Contents of the user manual for the Zebra ZXP Series 7 Double-Sided Card
- Product category: ID Card Printers Zebra
- Brand: Zebra
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zebra ID Card Printers
|
User manual for the Zebra ZXP Series 7 Double-Sided Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zebra product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zebra user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zebra product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More acccfqyrxqdbrcwysae With an efficient design able to handle a wide range of media thicknesses the ZXP Series 7 Double-Sided Card Printer from Zebra is able to quickly produce prints using a dye sublimation and thermal transfer process. Working with standard CR-80 cards, the ZXP Series 7 is able to produce 300 dpi images in full color YMCKO at a rate of 300 cards/hour or in monochrome at 1375 cards/hour. It will print double-sided and edge-to-edge.
The printer can hold 200 cards in the input hopper and can hold 100 cards in the output hopper. This unit also has a reject tray that can hold up to 15 cards. It also has a 21-character 6-line LCD display with customizable soft keys for viewing print status and changing settings. Additionally, it has a Kensington lock slot for security as well as both USB 2.0 and Ethernet connectivity. - Performance & Productivity
-
- Fast click-to-drop and batch print speeds.
- Three jobs can be in process at the same time.
- Edge-to-edge card printing.
- Works with ix Series ribbons and high capacity media.
- Simplified ribbon loading and operation.
- ZXP Toolbox for control over printer, driver, and software setup, administration, and diagnostics.
- ZMotif SDK allows software developers to integrate advanced features or write their own custom applications.
- Can accept optional laminator accessory.
- Zebra CardStudio
- This software allows for users to design and print cards. It also allows users access to smart card encoding and lamination features with compatible printers.
- Zebra Virtual PrintWare
- Template-based printing capability allows for simplified third-part software integration of card printing and card production flow. You can print to one or more networked card printers and remotely monitor printers' health and status. You can also use the software to pool and manage multiple printers as if they were one.
In the Box Zebra ZXP Series 7 Double-Sided Card Printer - Power Cord
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Zebra ZXP Series 7 Double-Sided Card Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZebra ZXP Series 7 Specs | | | Print Method | Dye sublimation / thermal transfer | | Print Resolution | 300 dpi | | Ribbon Options | True Colors ix Series Ribbons
YMCKO: 250 or 750 images/roll
YMCUvK: 750 images/roll
YMCKOK: 250 or 750 images/roll
Half Panel YMC, Full KO: 1250 images/roll
KdO and KrO: 2000 images/roll
WrKr: 2000 images/roll
Blue, Red, Gold, Silver Monochrome: 5000 images/roll
Black Monochrome: 2500 or 5000 images/roll
White Monochrome: 4000 image/roll
Scratch-Off Gray: 3250 images/roll | | Lamination | True Secure i Series Laminates
Linerless Waste-Free 1 mil (0.025 mm) Top and Botton Laminate: 750 images/roll
Laminate Types: Clear, magnetic stripe, smart card, and holographic wallpaper designs | | Double/Single-Sided | Double | | | | Print Speed | Monochrome, Single-Sided: 1375 cards/hour
Monochrome, Double-Sided: 555 cards/hour
YMCKO, Single-Sided: 300 cards/hour
YMCKOK, Double-Sided: 225 cards/hour
YMCKO, Single-Sided with Lamination: 270 cards/hour
YMCKOKO, Double-Sided with Lamination: 200 cards/hour | | Print Size | CR-80, ISO 7810, Type ID-1: 3.375 x 2.125" (85.6 x 54.0 mm) | | Card Type | PVC and composite, ABS cards, PET, PET-G, PET-F, PETix, and Teslin composite
Specialty Cards: Adhesive backed, signature panel, transparent cards with IR blocker
Technology Cards: Contact and contactless smart cards | | Media Thickness | 10-50 mil (0.25-1.27 mm)
For Lamination: 30 mil (0.76 mm) | | Capacity | Input: 200 cards
Output: 100 cards
Reject: 15 cards | | | | Interface | USB 2.0
10/100 Ethernet | | Compatible Operating Systems | Windows XP (32-bit), Vista (32/64-bit), Server 2003 (32-bit), 7 (32/64-bit), Server 2008 (32/64-bit), 8 and 8 Pro (32/64-bit), Server 2014 (64-bit) | | | | Display | 21-character x 6-line LCD display with configurable soft keys | | Security | Kensington lock slot | | Power Requirements | 90-264 VAC, 47-63 Hz (50-60 Hz nominal) | | Operating Conditions | Temperature: 59 to 95°F (15 to 35°C)
Humidity: 20 to 80% inclusive, non-condensing | | Storage Conditions | Temperature: 23 to 158°F (-5 to 70°C)
Humidity: 10 to 90% inclusive, non-condensing
Temperature, Media: 41 to 86°F (5 to 30°C)
Humidity, Media: 30 to 50% relative | | Dimensions | 12.0 x 27.5 x 10.9" (30.6 x 69.9 x 27.7 cm) | | Weight | 26.9 lb (12.2 kg) | | | | Package Weight | 38.0 lb | | Box Dimensions (LxWxH) | 27.0 x 20.0 x 15.5" |
