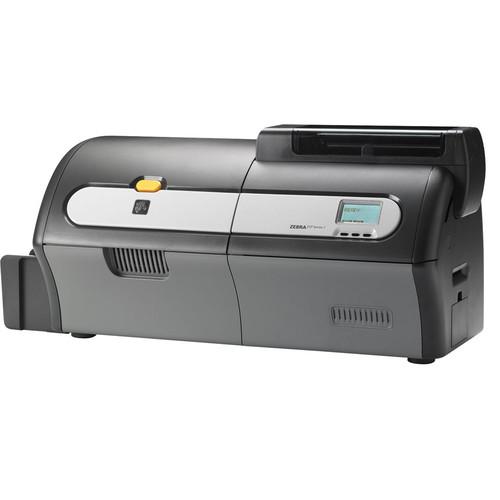

User Manual for Zebra ZXP Series 7 Dual-Sided Card Printer with Mag Stripe & Contact Contactless Mifare Encoders Click to enlarge the picture
Contents of the user manual for the Zebra ZXP Series 7 Dual-Sided Card
- Product category: ID Card Printers Zebra
- Brand: Zebra
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zebra ID Card Printers
|
User manual for the Zebra ZXP Series 7 Dual-Sided Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zebra product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zebra user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zebra product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More The Zebra ZXP Series 7 Dual-Sided Card Printer can quickly produce prints using a dye sublimation and thermal transfer process. Compatible with standard CR-80 cards, the printer can produce 300 dpi single-sided images in full color at a rate of 300 cards/hour or in monochrome at 1375 cards/hour. This printer features a high and low coercivity magnetic stripe encoder and a contact and contactless Mifare encoder. In addition, it can print double-sided and edge-to-edge.
The printer can hold 200 cards in the input hopper and 100 cards in the output hopper. It also features a reject tray for holding up to 15 cards. It also has a 21-character, 6-line LCD display with customizable soft keys for viewing print status and changing settings. The printer comes with the Kensington lock slot and an enclosure lock for security. In addition, it features USB 2.0 and Ethernet ports. Performance & Productivity - Fast click-to-drop and batch print speeds
- Up to 3 jobs can be in process at the same time
- Edge-to-edge card printing
- Works with ix Series ribbons and high capacity media
- Simplified ribbon loading and operation
- ZXP Toolbox for control over printer, driver, and software setup, administration, and diagnostics
- ZMotif SDK allows software developers to integrate advanced features or write their own custom applications
- Can accept optional laminator accessory
- Zebra's intelligent technology RFID tags authenticate and automate ix Series ribbons
- Card cleaning rollers included with each ribbon carton
- Specially designed cleaning supplies simplify preventative maintenance
Zebra CardStudio - Allows users to design and print cards
- Helps in smart card encoding and lamination
- Offers flexible single or multiple user network licensing and database integration options
Zebra Virtual PrintWare - Template-based printing capability allows for simplified third-party software integration of card printing and card production flow
- You can print to one or more networked card printers and remotely monitor printers' health and status
- You can also use the software to pool and manage multiple printers as if they were one
In the Box Zebra ZXP Series 7 Dual-Sided Card Printer with Mag Stripe & Contact/Contactless Mifare Encoders US Power Cord Limited 2-Year Warranty Brochure PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Zebra ZXP Series 7 Dual-Sided Card Printer with Mag Stripe & Contact Contactless Mifare Encoders in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZebra ZXP Series 7 Specs | | | Print Method | Color dye sublimation / monochrome thermal transfer | | Print Resolution | 300 dpi | | Ribbon Options | True Colors ix Series Ribbons
YMCKO: 250 or 750 images/roll
YMCUvK: 750 images/roll
YMCKOK: 250 or 750 images/roll
Half Panel YMC, Full KO: 1250 images/roll
KdO and KrO: 2000 images/roll
WrKr: 2000 images/roll
Blue, Red, Gold, Silver Monochrome: 5000 images/roll
Black Monochrome: 2500 or 5000 images/roll
White Monochrome: 4000 image/roll
Scratch-Off Gray: 3250 images/roll | | Double/Single-Sided | Double | | | | Print Speed | Monochrome, Single-Sided: 1375 cards/hour
Monochrome, Double-Sided: 555 cards/hour
YMCKO, Single-Sided: 300 cards/hour
YMCKOK, Double-Sided: 225 cards/hour
| | Print Size | CR-80, ISO 7810, Type ID-1: 3.375 x 2.125" (85.6 x 54 mm) | | Card Type | PVC and composite, ABS cards, PET, PET-G, PET-F, PETix, and Teslin composite
Specialty Cards: Adhesive backed, signature panel, transparent cards with IR blocker
Technology Cards: Contact and contactless smart cards | | Media Thickness | 10-50 mil (0.25-1.27 mm)
| | Capacity | Input: 200 x 30 mil (0.762 mm) cards
Output: 100 x 30 mil (0.762 mm) cards
Reject: 15 x 30 mil (0.762 mm) cards | | Encoding | High and low coercivity magnetic stripe | | | | Interface | USB 2.0
10/100 Ethernet
USB supports plug-and-play printer identification | | Compatible Operating Systems | Windows XP (32-bit), Vista (32/64-bit), Server 2003 (32-bit), 7 (32/64-bit), Server 2008 (32/64-bit), 8 and 8 Pro (32/64-bit), Server 2012 (64-bit) | | Software | ZMotif SDK support and sample code
CardStudio card design and issuance software
Zebra Virtual PrintWare software support | | | | Display | 21-character x 6-line LCD display with configurable soft keys | | Security | Kensington lock slot | | Power Requirements | Auto-switching single-phase AC power
90 to 264 VAC, 47 to 63 Hz (50 to 60 Hz nominal) | | Certification | FCC Class A | | Operating Conditions | Temperature: 59 to 95°F (15 to 35°C)
Humidity: 20 to 80% inclusive, non-condensing | | Storage Conditions | Temperature: 23 to 158°F (-5 to 70°C)
Humidity: 10 to 90% inclusive, non-condensing
Temperature, Media: 41 to 86°F (5 to 30°C)
Humidity, Media: 30 to 50% relative | | Dimensions | 12 x 27.5 x 10.9" (30.6 x 69.9 x 27.7 cm) | | Weight | 26.9 lb (12.2 kg) |
