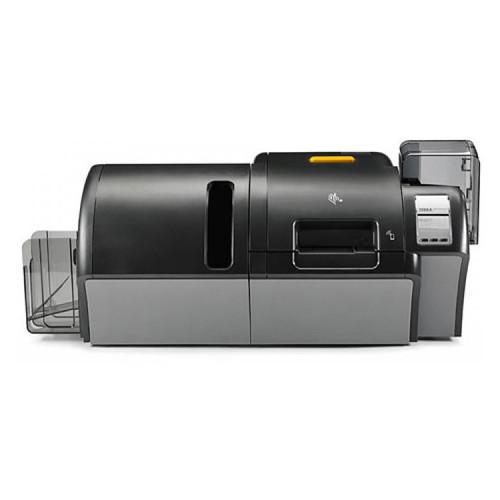

User Manual for Zebra ZXP Series 9 Dual-Sided Printer Click to enlarge the picture
Contents of the user manual for the Zebra ZXP Series 9 Dual-Sided Printer
- Product category: ID Card Printers Zebra
- Brand: Zebra
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Zebra ID Card Printers
|
User manual for the Zebra ZXP Series 9 Dual-Sided Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Zebra product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Zebra user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Zebra product will considerably shorten its lifespan!
|
Product description A Guide to Purchasing an ID Card Printer Read More A solution for ID card printing, the ZXP Series 9 Dual-Sided Printer from Zebra uses dye sublimation and thermal transfer processes to achieve 304 dpi color images. It first places the image onto a transfer film and then transfers that image onto the ID card, allowing for efficient printing that retains image quality. This printer applies film on both sides of the card in a single pass to achieve speeds of up to 180 cards per hour when set to average print coverage. It also uses standard size CR-80 cards, printing over-the-edge to ensure that there are no visible borders on any side.A single-sided lamination module is included with this version and can be used to increase the durability of your card and protect it against fading or scratches. The card feeder is used for input and holds approximately 150 cards at a time, while the output hopper on the side of the printer provides a 100-card capacity. A six-line LCD screen displays information about the printer and can be controlled via three buttons placed below it. Additional features include Kensington lock capability for those who want added security, as well as USB 2.0 and Ethernet connectivity. -
- Double-sided printing with retransfer technology allows for speeds up to 180 cards/hour without losing image quality
- Over-the-edge printing ensures that there are no white borders at the edges of the card
- Single-sided lamination module increases the durability of your cards and can help avoid counterfeiting with the use of holographic films
- Six-line LCD display with three buttons offers options for viewing printer information and printing the last job stored in memory
- Works with the CR-80 (ID-1) card size, the standard size for most financial and ID cards
- Available ribbons include options with inhibitor panels and UV fluorescent panels
- Slot for Kensington lock if additional security is needed
- Uses Windows-certified drivers compatible with Windows 2008, 2012, 7, 8, and 10
In the Box Zebra ZXP Series 9 Dual-Sided Printer (Single-Sided Laminator) User CD Printer Test Cards Stack of 100 Cards Cleaning Cartridge Cleaning Roller USB Cable Power Supply Limited 2-Year Warranty Limited Lifetime Warranty on Printhead Table of Contents
|
Upload User Manual
Have you got an user manual for the Zebra ZXP Series 9 Dual-Sided Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZebra ZXP Series 9 Specs | | | Printing Technology | Dye sublimation / thermal transfer with retransfer process | | Maximum Resolution | 304 dpi | | Ribbon Options | Monochrome black
YMC
YMCK
YMCKK
YMCUvK
YMCKI
YMCKKI | | | | Maximum Color Print Speed | Single-sided: 190 cards per hour
Double-sided: 180 cards per hour | | Duplex Printing | Yes | | Lamination | Yes, single-sided | | Encoders | None | | | | Card Sizes | CR-80 (ISO 7810 Type ID-1) | | Card Type | PVC
PVC composite
ABS
PET
PET-G
Teslin composite | | Media Thickness | 30 - 40 mil | | Media Capacity | Input: 150 cards
Output: 100 cards
Reject: 15 cards | | | | Computer Interface | USB 2.0
10/100 Ethernet | | Software Compatibility | Windows 2008, 2012, 7, 8, and 10 | | | | Status Display | Six-line, 21-character LCD display | | Front Panel Controls | Three buttons | | Memory (RAM) | 64 MB | | Security Lock Slot | Kensington physical lock capability | | Certifications | Not specified by manufacturer | | Environmental Compliance | Not specified by manufacturer | | Operating Conditions | Temperature: 59 to 95°F (15 to 35°C)
Humidity: 20 to 80% | | Storage Conditions | Temperature: 23 to 131°F (-5 to 55°C)
Humidity: 10 to 90% | | Power Requirements | 100-240 VAC, 50-60 Hz | | Dimensions (W x H x D) | 18.8 x 13.2 x 20.4" / 47.6 x 33.4 x 51.9 cm | | Weight | 27.5 lb / 12.5 kg |
