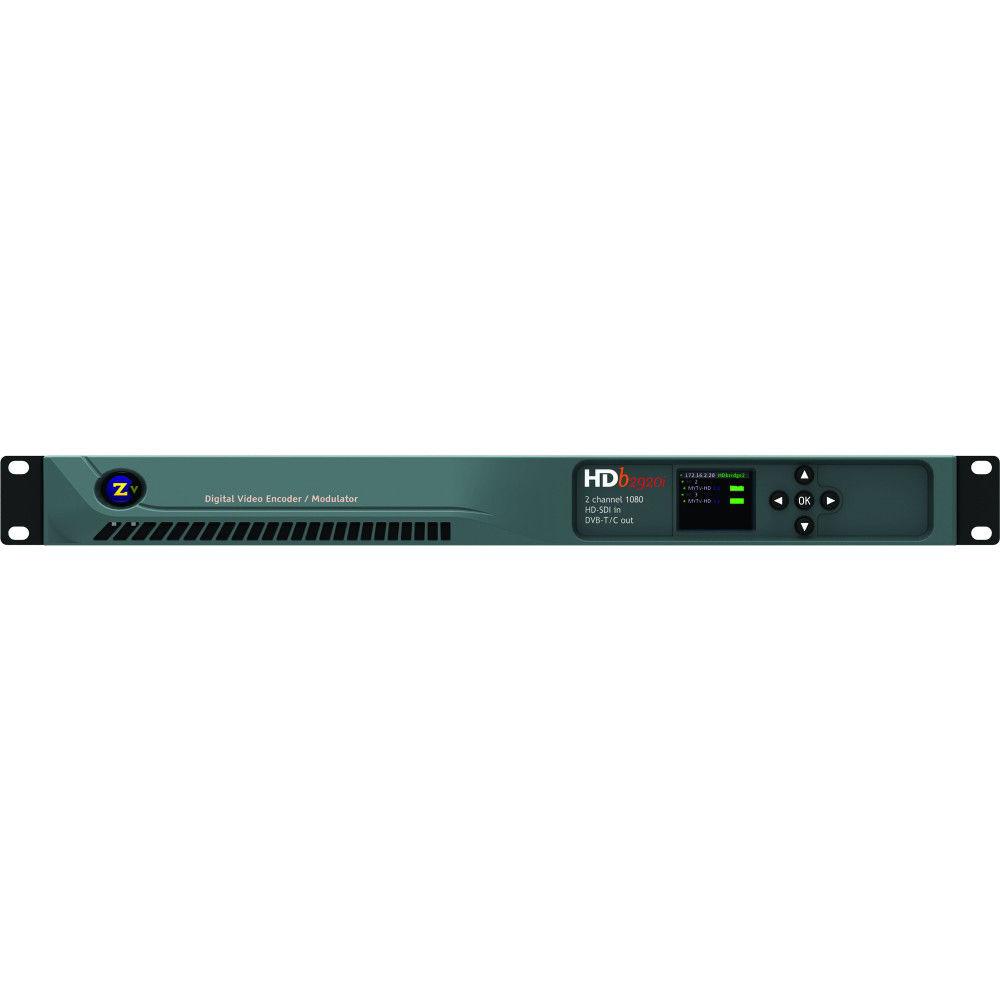

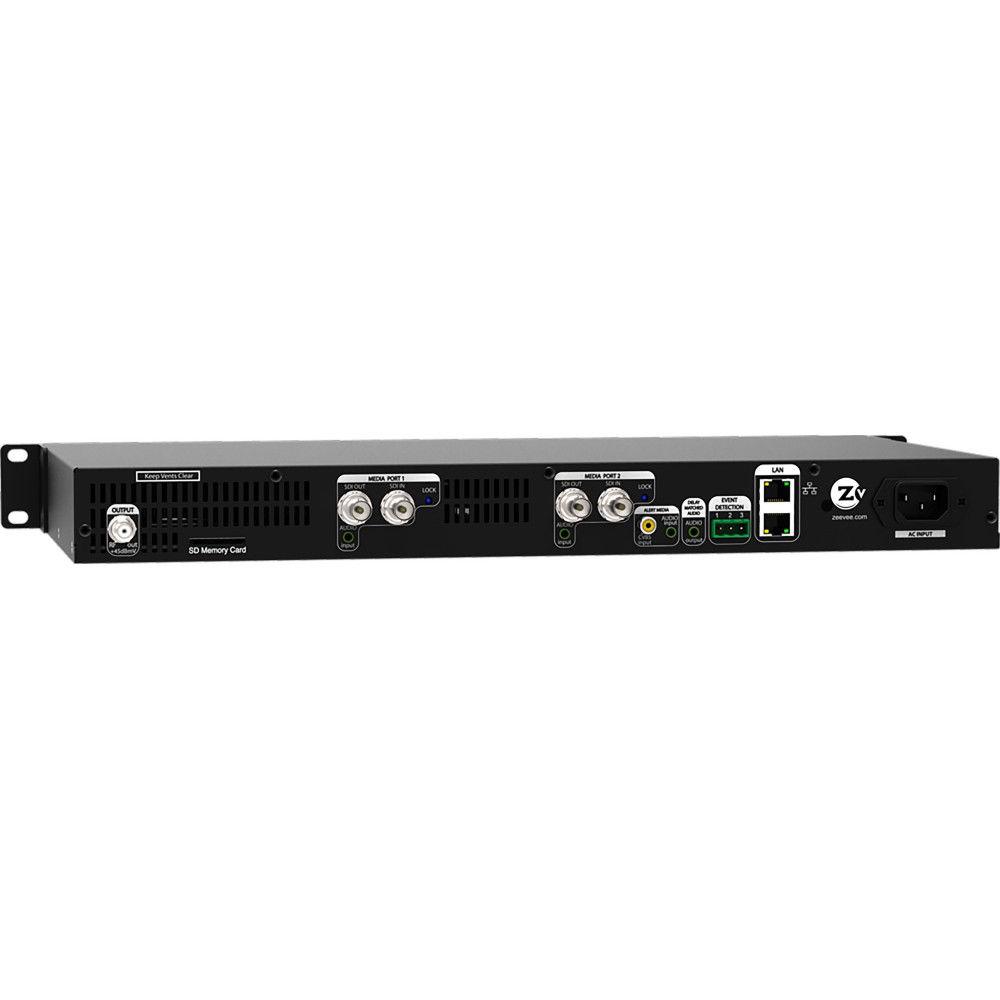

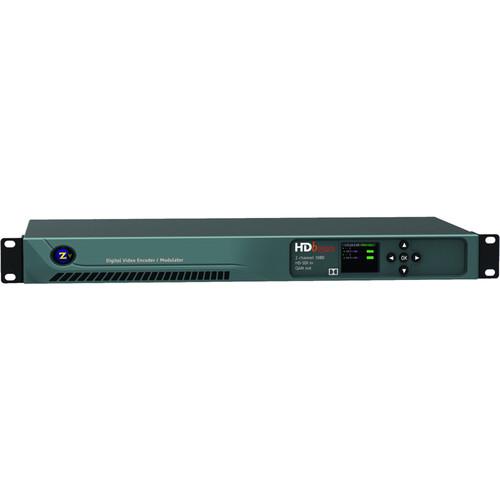

Product description The HD-SDI Digital Encoder / Modulator from ZeeVee features the headend-ready technology that delivers 1080p resolution video from HD-SDI sources to any number of displays over existing coax for broadcast studios, security, and large venue applications like stadiums and arenas. It can transmit an IP stream for IPTV and IP/QAM in full MPEG2 both simultaneously and individually. - General
-
- Transmit multiple SDI channels over a QAM
- HD-SDI ports have reclocked, amplified loop-through output
- Faster deployment and configuration with proprietary Maestro interface
- Dolby Digital audio
- Mission-critical reliability
- High Quality Video
-
- Full MPEG2 implementation
- I, P, and B frames
- Low latency
- Full motion estimation with a wide search range
- High Reliability
-
- Low-stress power system
- Full system instrumentation and monitoring
- Official international regulatory approval
- Forced air cooling for effective thermal control
- Ease of Management
-
- Powerful, highly intuitive web interface
- On-site or remote management
- Web accessible instrumentation and management
- Single session configuration and management of all connected units
- Front panel display for on-site status and management at a glance
- Extensible Architecture
-
- Easy downloadable firmware updates
- Future enhancements provided regularly
- Added support for an Emergency Alert (EAS) channel, closed-captioning, and a bonus information channel
UPC: 812254011226 In the Box ZeeVee HD-SDI Digital Encoder / Modulator Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZeeVee HD-SDI Digital Encoder Modulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZeeVee HDB2920I Specs | | | Power | 100 to 240 VAC 50/60 Hz, 60 W maximum 30 W Typical IEC 60320-C14 | | Cooling | Dual internal cooling fans, Front inlet, Rear exhaust | | Temperature | Operating 32 to 113°F (0 to 45°C) / 10 to 80%, non-condensing | | Vibration | NSTA 1A in carton | | MTBF | 62,000 hours | | Compliance | FCC Class A, IEC60065, EN61000 (see Manual #70-00045), CE, RoHS, RCM C-Tick | | Enclosure | Metal | | Mounting | Rack ears shipped attached, 1RU high | | | | Serial Digital Interface Input | Two ports of (HD/3G) Serial Digital Interface video (BNC, 75 Ohms) | | Electrical | SDI (SMPTE 259M), HD-SDI (SMPTE 292M), 3G-SDI (SMPTE 424M) | | Resolution | 480i (SDI, HD-SDI, 3G-SDI)
720p @ 59.94/60 Hz (HD-SDI, 3G-SDI)
1080i @ 59.94/60 Hz (HD-SDI, 3G-SDI)
1080p @ 23.98/24/29.97/30 Hz (3G-SDI), Embedded AC3 or PCM audio supported (59.94/60 down-sampled for standard broadcast) | | Loop-Through | Each SDI port has reclocked, amplified loop-through output | | Channels | Extra Digital Channel: MPEG2 Program stream file, up to 200 MB | | | | Digital Audio | Digital as element of SDI port or 3.5 mm stereo female, line level input per channel | | Encoder Audio Profile | ATSC A/52, Dolby Digital (AC-3) | | | | Encoder Video Profile | MPEG2 HD: ISO13818-2 Main Profile @ High Level | | Traffic Shaping | Variable bit rate | | Data Rates | Variable: 10 Mb/s to 24 Mb/s per channel
Average: 18 Mb/s per channel | | Encoding Latency | Programmable 200 to 400 msec | | Color Profile | 4:2:0 | | GOP Size | 15 | | Video, Audio PID | Programmable starting value | | Program Information | Programmable program name, EIT | | Audio Encoder | ATSC A/52, Dolby Digital (AC-3) | | | | Supported Modulation Types | QAM 256 and 64 (ITU-T J83 Annex B) Interleaving modes: (64,2) only | | Cable Standard | HRC, IRC or STD | | Frequency Range | 2 x Independent, frequency agile CATV Channels placeable on Channels 2-135
2 kHz resolution
+/- 30 ppm accuracy
+/- 35 ppm stability | | Output Power | 45 dBmV typical | | Output Level Adjust | 25 to 45 dBmV in 1 dBmV steps | | MER | > 38 dB typical | | I/Q Amplitude Imablance | < 1% typical | | Spectral Tilt | | | | | Network Interface | 10/100 Mb Ethernet via RJ45 connection
IP address via DHCP or set by user
HTML/Javascript served web interface for easy configuration
Telnet connection for CLI scripting
Easy firmware updates

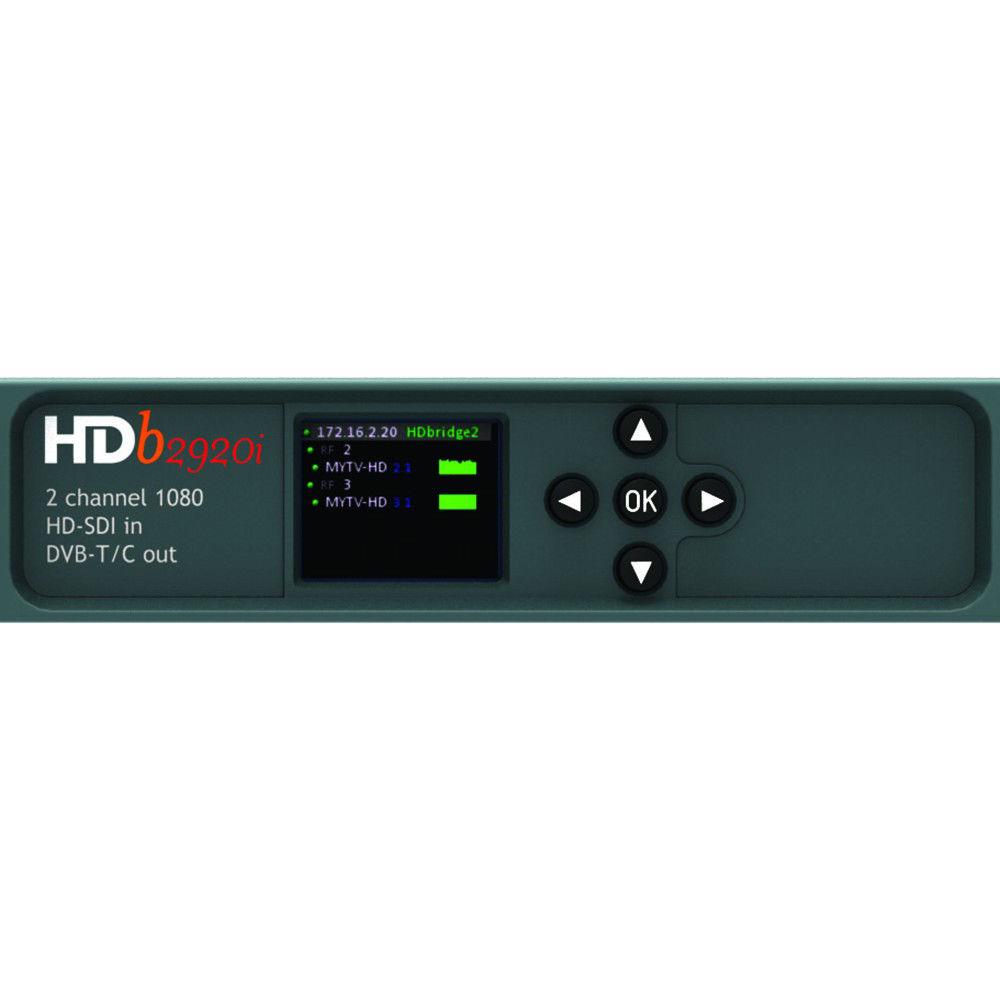

All settings saved in NV storage | | Front Panel Color Display | Quickly obtain status at a glance, basic configurations, software revisions and updates | | Dimensions (H x W x D) | 1.72 x 17.33 (without rack mount ears) x 9.9" (44 x 440 x 252 cm) | | Weight | 6.5 lb (2.95 kg) | | | | Package Weight | 8.7 lb | | Box Dimensions (LxWxH) | 20.9 x 12.4 x 4.8" |
