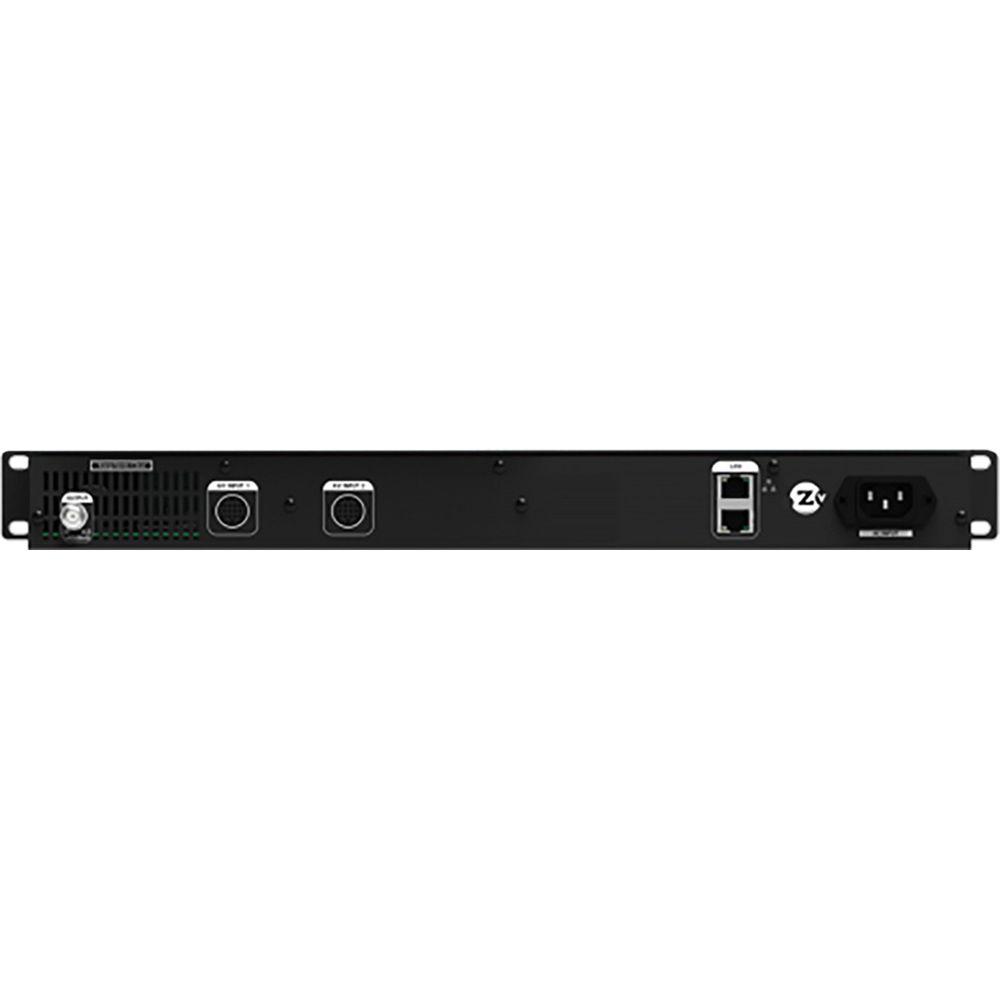

User Manual for ZeeVee HDB2520DT 2-Channel HD Digital Encoder Modulator Click to enlarge the picture
Contents of the user manual for the ZeeVee HDB2520DT 2-Channel HD Digital Encoder
- Product category: RF Equipment ZeeVee
- Brand: ZeeVee
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZeeVee RF Equipment
 |
User manual for the ZeeVee HDB2520DT 2-Channel HD Digital Encoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZeeVee product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZeeVee user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZeeVee product will considerably shorten its lifespan!
|
Product description The HDB2520DT 2-Channel HD Digital Encoder/Modulator from ZeeVee converts 2 Component or VGA sources into cable channels and broadcasts them over existing coax cabling to an unlimited number of tuner-equipped displays. The video is encoded into MPEG-2 and audio into AC-3. VGA input supports a wide range of resolutions from 640 x 480 to 1440 x 900. It comes with an included crossover cable which can only be used with DirecTV H25 receivers. - Superior Video Quality
-
- Full MPEG2 implementation
- I, P, and B Frames
- Low latency
- Full motion estimation with a wide search range
- Ease of Management
-
- Powerful, highly intuitive web interface
- On-site or remote management
- Web accessible instrumentation and management
- Single session configures and manages all connected units
- Front Panel Display for on-site status and management at a glance
- High Reliability
-
- Low-stress power system
- Full system instrumentation and monitoring
- Official international regulatory approval
- Forced air cooling for effective thermal control
- Extensible Architecture
-
- Easy downloadable firmware updates
- Future enhancements provided regularly
- Emergency Alert System (EAS)
- Bonus information channel for use with small video loops
- General Features
-
- QAM modulator
- Maestro multibox management software with local or remote configuration and management
- Color LCD for front-panel configuration and at-a-glance monitoring and status
- Breakthrough Cable Management with each model utilizing a choice of hydra AV cables (extend from a full sized DIN connector to 7 inputs - component HD video, analog, and digital audio) or DIN VGA cables.Ethernet port for configuration and remote management
- Analog and digital audio which is internally encoded and broadcast as AC-3 or MPEG-1 Layer 2
- Integrated Closed Caption support which is required for ADA compliance in many applications
- Made in USA
UPC: 812254010502 In the Box ZeeVee HDB2520DT 2-Channel HD Digital Encoder/Modulator AC Power Cord 2 x Hydra Audio/Video Cable Crossover Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZeeVee HDB2520DT 2-Channel HD Digital Encoder Modulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZeeVee HDB2520DT Specs | | | Component Video | 2 x DIN connector HDbridge end, 2 x RCA connectors for HD source up to 720p | | VGA | 2 x HD-15 connector, 2 x 75 Ohm RGB 0 to 0.7V, Separate H and V sync | | VGA | Resolutions Supported: 640 x 480, 720 x 480, 800 x 600, 1024 x 768, 1152 x 864, 1176 x 664, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1440 x 900 at 60, 70, 72, 75, 85 Hz
VGA resolutions are broadcast centered in the best vertical fit into 1920 x 1080p30 or 1280 x 720p60 | | Closed Caption | EIA/CEA-608 captions accepted over composite video input | | Channel | Extra Digital: MPEG2 Program stream file, up to 200 MB | | | | Audio | Stereo Analog and Digital Audio: 2 x Line level input per channel DIN connector HDbridge end
2 x RCA connector or digital
2 x SPDIF audio input. 3.5 mm pigtail connector with VGA | | | | Encoder Video Profile | MPEG2 HD: ISO13818-2 main profile @ high level | | Traffic Shaping | Variable bit rate | | Encoding Data Rates | Variable, 10 to 24 Mb/s per channel
Average Encoding Data Rate: 18 Mb/s per channel | | Encoding Latency | Programmable 200 to 400 msec | | Color Profile | 4:2:0 | | GOP Size | 16 | | Video, Audio PID | Programmable starting value | | Program Information | Programmable program name, EIT | | | | Encoder Audio Profile | ATSC A/52, Dolby Digital (AC-3) | | | | Modulation Type | QAM 256 (ITU-T J83 Annex B) interleaving modes: (64, 2) only | | Cable Standard | HRC, IRC, or STD | | Frequency Range | Up to 2 paired, frequency agile QAM RF CATV channels 2 to 135
2 kHz resolution
+/- 30 ppm accuracy
+/- 35 ppm stability | | Output Power | +45 dBmV typical | | Output Level Adjustment | 25 to 45 dBmV in 1 dBmV steps | | MER | >38 dB typical | | I/Q Amplitude Imbalance | <1% typical | | Spectral Tilt | | | | | Network Interface | 10/100 MB Ethernet via RJ45 connection
IP address via DHCP or set by user
HTML/Javascript served web interface for easy configuration
Telnet connection for CLI scripting
Easy firmware updates
All settings saved in NV storage | | Display | Quickly obtain status at a glance, basic configurations, software revisions, and updates | | | | Power | 100 to 240 VAC 50/60 Hz, 60 W maximum, 30 W typical IEC 60320-C14 | | Cooling | Dual internal cooling fans, front inlet, rear exhaust | | Operating Conditions | Temperature: 32° to 113°F (0 to 45°C)
Humidity: 10 to 80% (non-condensing) | | Vibration | NSTA 1A in carton | | MTBF | 62000 hours | | Compliance | FCC Class A, IEC60065, EN61000 (see manual 70-00031-00), CE, RoHS, RCM C-Tick | | Enclosure Type | Metal | | Mounting | Rack ears shipped attached, 1 RU high | | Dimensions | Without Rack-Mount Ears: 1.72 x 17.33 x 9.90" (4.36 x 44.0 x 25.10 cm) | | Weight | 6.25 lb (2.83 kg) | | | | Package Weight | 9.7 lb | | Box Dimensions (LxWxH) | 21.1 x 12.5 x 4.7" |
