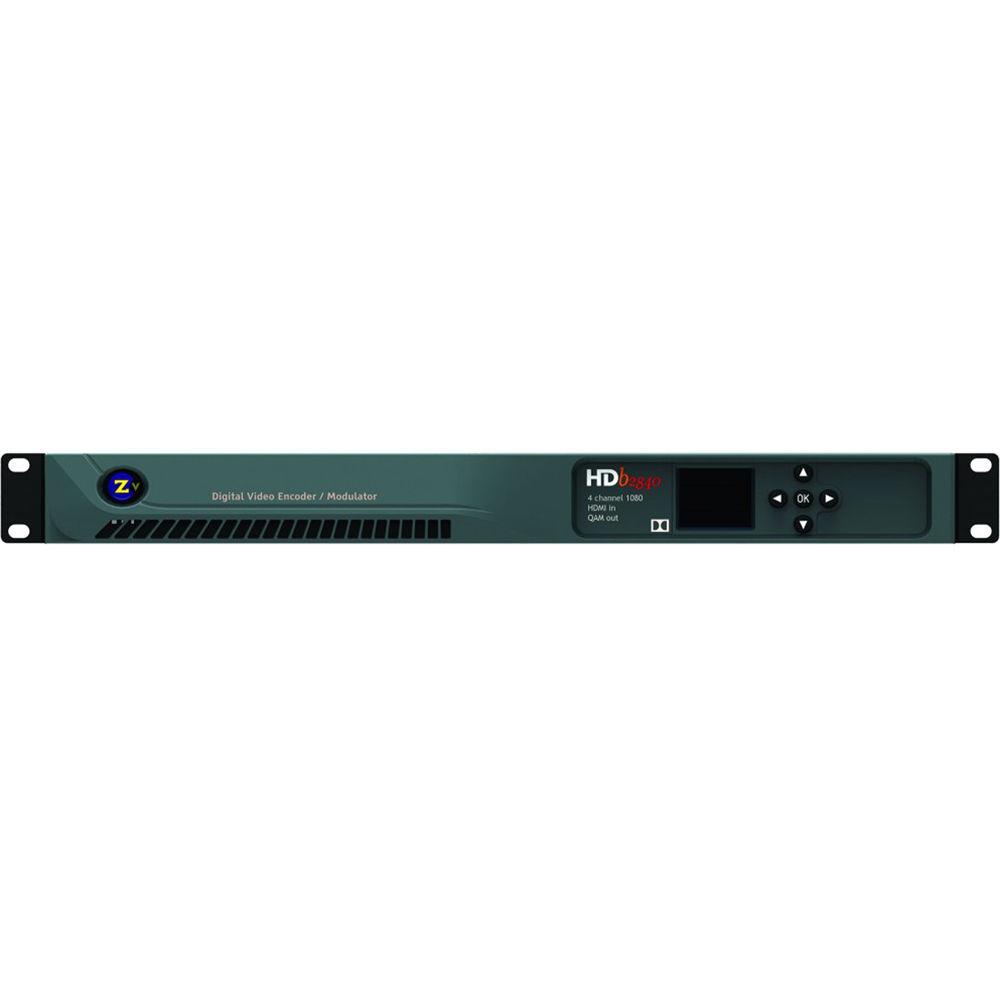

User Manual for ZeeVee HDb2840 Digital Video Encoder Modulator Click to enlarge the picture
Contents of the user manual for the ZeeVee HDb2840 Digital Video Encoder Modulator
- Product category: RF Equipment ZeeVee
- Brand: ZeeVee
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZeeVee RF Equipment
 |
User manual for the ZeeVee HDb2840 Digital Video Encoder Modulator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZeeVee product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZeeVee user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZeeVee product will considerably shorten its lifespan!
|

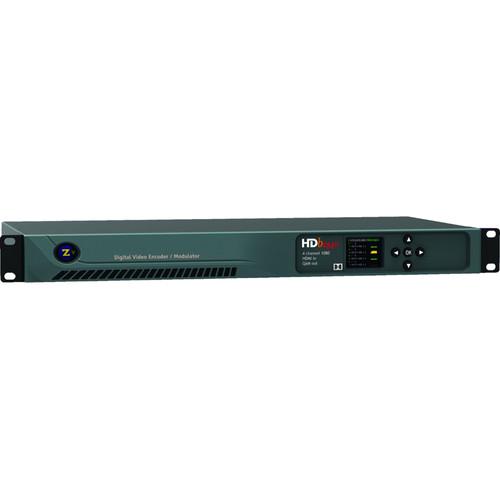

Product description The HDb2840 Digital Video Encoder/Modulator from ZeeVee is a 4-channel HD modulator with unencrypted HDMI inputs. You can save an MPEG-2 video file to the 300MB internal memory, and use it as an additional 5th channel. This unit distributes HD video throughout your facility, while using existing coaxial cables. It is HDTV compatible, The LCD front panel provides device status of IP address, data rate encoding, configured RF and digital channels. The Maestro software allows you to configure and entire headend quickly, view status and configurations, apply a value to all channels with a few clicks, and create your channel plan on one page. This unit also features an Emergency Alert System (EAS) capability. - Unencrypted HDMI video inputs for up to 4 channels
- Bonus 5th Channel for Signage - 300MB Internal memory for use with an MPEG-2 program stream file
- Emergency Alert System capability
- Maestro multibox management software via local or remote configuration and management
- Color LCD for front panel configuration and at-a-glance monitoring and status
- Ethernet port for configuration and remote management
- Analog and Digital Audio internally encoded and broadcast as Mpeg-1 Layer 2
- Integrated Closed Caption support required for ADA compliance in many applications
- Delay Matched Audio on Port 1 for use with Audio Systems
- Designed and built in the U.S.A.
UPC: 812254010519 In the Box ZeeVee HDb2840 Digital Video Encoder/Modulator Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZeeVee HDb2840 Digital Video Encoder Modulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

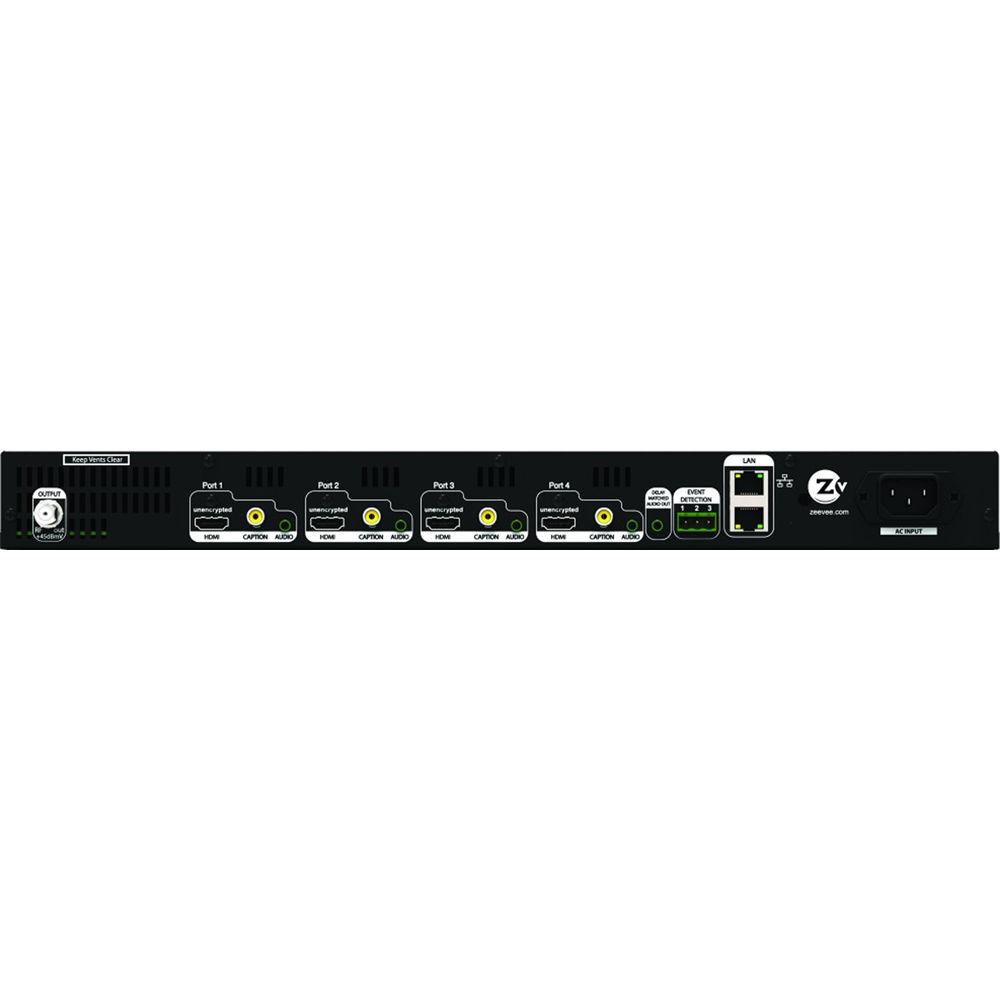

Technical parametersZeeVee HDB 2840 Specs | Connectors | 1 x Coax output
4 x HDMI input
4 x 3.5 mm phone jack, composite video input (for TeleText only)
4 x 3.5 mm phone jack, HDb2840 analog audio input
1 x 3.5 mm phone jack, delay matched analog audio output
1 x 3-position emergency alert system input
2 x RJ-45 10/100 LAN port
1 x AC power input | | Indicators and Controls | 1 x Color display
5 x Selection buttons | | HDMI Video Input | 4 ports per model | | Closed Caption | EIA/CEA-608 captions accepted over composite video input (-NA versions only) | | Internal Memory | MPEG-2 Program Stream file, up to 300 Mb | | Analog Audio Input | 75 Ω, 0 to 0.7 V at Line-level output | | Digital Audio | Digital as element of HDMI 1.3 port | | Audio Encoding | Internally encoded into Dolby Digital AC-3 or MPEG1 Layer 2 (varies by region) | | Encoder Video Profile | MPEG2 HD Profile 2: ISO13818-2 MP @ HL | | Traffic Shaping | Variable Bit Rate | | Video Transport Bit Rate | Variable, 10 Mbps - 24 Mbps per channel | | Encoding Data Rates | Variable, 10 Mbs to 24 Mbs per channel | | Average Encoding Data Rate | 18 Mbs per channel | | Encoding Latency | Programmable 100 msec to 400 msec | | Color Profile | 4:2:0 | | GOP Size | 24 | | Video, Audio PID | Programmable | | Program Information | Programmable | | Encoder Audio Profile | ATSC A/52, Dolby(r) Digital (AC-3) or Mpeg 2 layer 1 (varies by region) | | Modulation Type | QAM 256 (ITU-T J83 Annex B) Interleaving modes: (64,2) only OR DVB-C
QAM 256 (ITU-T J83 Annex A) (varies by region) | | Cable Standard | HRC, IRC or STD or user defined (varies by region) | | Frequency Range | 54 to 864 MHz
2 kHz resolution
± 30 ppm accuracy
± 35 ppm stability | | Output Power | +45 dBmV typical | | Output Level Adjustment | 25 to 45 dBmV in 1 dBmV steps | | MER | > 38 dB typical | | I/Q Amplitude Imablance | < 1% typical | | Spectral Tilt | <= 1 dB over 6 MHz typical | | Network Interface | 10/100 mb Ethernet via RJ45 connection
IP address via DHCP or set by user
HTML/Javascript served web interface for easy configuration
Telnet connection for CLI scripting
Easy firmware updates
All settings saved in NV storage | | Front Panel Color Display | Quickly obtain status at a glance | | Power | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 60 W maximum, 30 W Typical | | Cooling | Dual Internal cooling fans, front inlet, rear exhaust | | Enclosure | Metal | | Vibration | NSTA 1A in carton | | MTBF | 45,000 hours | | Compliance | FCC Class A, IEC60065, EN61000, CE, RoHS, RCM C-Tick | | Temperature & Humidity | 32 to 113&DegF (0 to 45°C), 10% to 80%, non-condensing | | Dimensions (H x W x D) | 1.72 x 17.3 x 9.9" (43.6 x 440.2 x 251.5 mm) | | Weight | 6.25 lb (2.84 kg) | | | | Package Weight | 8.6 lb | | Box Dimensions (LxWxH) | 21.1 x 12.4 x 4.9" |
