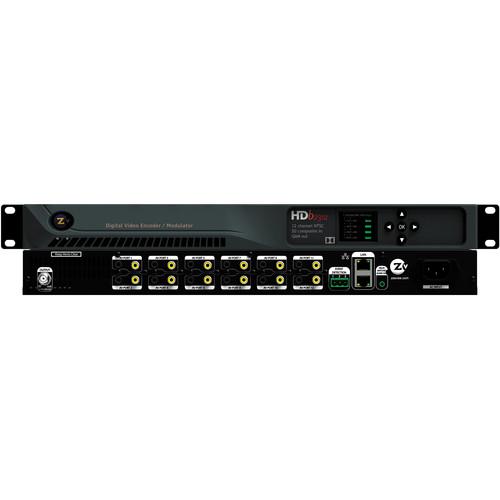

User Manual for ZeeVee HDbridge 2312 12-Channel Audio Video to HD Digital Encoder QAM Modulator Click to enlarge the picture
Contents of the user manual for the ZeeVee HDbridge 2312 12-Channel Audio Video
- Product category: RF Equipment ZeeVee
- Brand: ZeeVee
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZeeVee RF Equipment
|
User manual for the ZeeVee HDbridge 2312 12-Channel Audio Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZeeVee product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZeeVee user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZeeVee product will considerably shorten its lifespan!
|
Product description The HDbridge 2312 12-Channel Audio/Video to HD Digital Encoder QAM Modulator from ZeeVee is designed to encode and modulate 12 SD standard definition audio and video inputs to a single QAM RF coaxial output. This encoder can be connected to any RF systems with HDTV monitor equipped with a digital tuner. The modulator is setup via a web browser which enables you to customize your system. The HDbridge 2312 distributes high density video and digital signage with its 12 SD channels and composite video inputs. It features a 480i or 576i video resolution and analog audio is internally encoded and broadcast as Dolby AC3. This unit features integrated closed caption support and uses AV cables (not included). This unit is rackmountable. - Full MPEG2 implementation
- Full motion estimation with a wide search range
- On-site or remote management
- Web accessible instrumentation and management
- Single session configures and manages all connected units
- Front Panel Display for on-site status and management at a glance
- Forced air cooling for effective thermal control
- Easy downloadable firmware updates
- Emergency Alert System (EAS)
- Bonus information channel for use with small video loops
UPC: 812254010564 In the Box ZeeVee HDbridge 2312 12-Channel Audio/Video to HD Digital Encoder QAM Modulator AC Power Cord Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZeeVee HDbridge 2312 12-Channel Audio Video to HD Digital Encoder QAM Modulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZeeVee HDB 2312 Specs | Connectors | 1 x BNC, coaxial output
12 x RCA female, composite video input
12 x 3.5 mm phone jack, stereo audio input
1 x 3-pin phoenix male, event detection
2 x RJ45 Ethernet port
1 x 3.5 mm phone jack, EAS delay matched audio output
1 x IEC 60320-C14, power input Event detection is not active yet | | Controls | 4 x Navigation control
1 x OK | | Composite Video Input | 75 Ω, 0 to 0.7 V per channel
480i input 59.94 fields per second | | Closed Caption | EIA/CEA-608 captions accepted over composite video input | | Stereo Audio Input | 75 Ω, 0 to 1.0 V per channel
Internally encoded into Dolby Digital AC-3 | | Encoder Video Profile | MPEG2 HD Profile 2: ISO13818-2 MP @ HL | | Traffic Shaping | Variable Bit Rate | | Video Transport Bit Rate | 38.78 Mbps | | Data Rates | Variable, 2 Mbs to 12 Mbs per channel | | Average Encoding Data Rate | 10 to 12 Mbs per channel | | Encoding Latency | Programmable 100 msec to 400 msec | | Color Profile | 4:2:0 | | GOP Size | 24 | | Video, Audio PID | Programmable | | Program Information | Programmable | | Encoder Audio Profile | ATSC A/52, Dolby(r) Digital (AC-3) | | Modulation Type | QAM 256 (ITU-T J83 Annex B) Interleaving modes: (64,2) only | | Cable Standard | HRC, IRC or STD or User defined Varies by region | | Frequency Range | 54 to 864 MHz (Channels 2-135)
2 kHz resolution
± 30 ppm accuracy
± 35 ppm stability | | Output Power | +45 dBmV typical Do not connect directly to HDTV | | Output Level Adjustment | 25 to 45 dBmV in 1 dBmV steps | | MER | 40 dB typical | | I/Q Amplitude Imbalance | < 1% typical | | Spectral Tilt | <= 1dB over 6 MHz typical | | Network Interface | 10/100 mb Ethernet via RJ45 connection
IP address via DHCP or set by user
HTML/Javascript served web interface for easy configuration
Telnet connection for CLI scripting
Easy firmware updates
All settings saved in NV storage | | Front Panel Color Display | View channel settings and audio/video utilization on full color LCD | | Cooling | Dual Internal cooling fans, Front Inlet, Rear Exhaust | | Vibration | NSTA 1A in carton | | Mounting | Rack ears shipped attached, 1RU high | | MTBF | 62,000 hours | | Compliance | FCC Class A | | Enclosure | Metal | | Power | 100-240 VAC, 50/60 Hz | | Power Consumption | 60 W maximum, 30 W typical | | Dimensions (H x W x D) | 1.7 x 17.3 x 6.9" (43.6 x 440.2 x 175.3 mm) | | Weight | 6.5 lb (2.95 kg) | | | | Package Weight | 8.95 lb | | Box Dimensions (LxWxH) | 21.1 x 12.4 x 4.6" |
