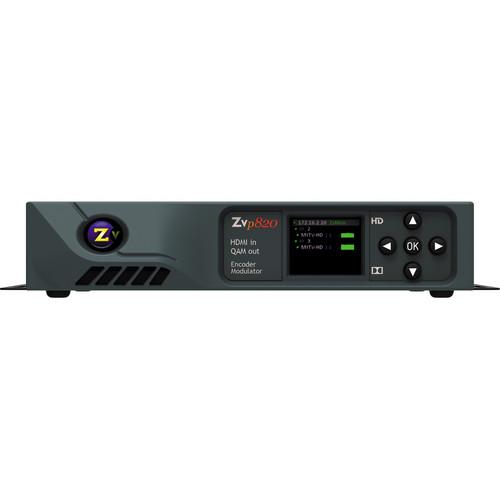

User Manual for ZeeVee ZvPro 820 Dual Channel HDMI Encoder QAM Modulator Click to enlarge the picture
Contents of the user manual for the ZeeVee ZvPro 820 Dual Channel HDMI
- Product category: RF Equipment ZeeVee
- Brand: ZeeVee
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZeeVee RF Equipment
|
User manual for the ZeeVee ZvPro 820 Dual Channel HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZeeVee product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZeeVee user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZeeVee product will considerably shorten its lifespan!
|
Product description The ZvPro 820 Dual Channel HDMI Encoder / QAM Modulator from ZeeVee lets you convert HDMI video input signals into digital cable channels and distribute them to an unlimited number of HDTVs over your existing coaxial cabling. The ZvPro 820 outputs 1080p/i, 720p, and 480p/i video signals, and features dual unencrypted HDMI input channels, with 3.5mm analog audio inputs, and composite video inputs for closed captioning support.
The ZvPro 820 uses QAM RF modulation to turn an A/V source into a digital TV channel that is read by the digital tuner found in most HDTVs. To send the signal to additional TVs, you simply split your coax output by means of a splitter. You can send one coaxial output to hundreds, or even thousands of HDTVs by use of additional splitters. This eliminates the need for having a receiver box, signage player, or other video device at each TV in your facility.
The chassis is constructed from metal and is rack mountable with an optional 1U rack mount kit. The ZvPro 820 is ideal for use in sports bars, corporate offices, commercial spaces, or other venues with existing coaxial cabling. - Simple Integration and Expansion
- The ZvPro 820 allows you to use your existing coaxial cables to send HD channels to TVs with built-in digital QAM tuners. To connect to more TVs, simply use a splitter to send the signal to hundreds or even thousands of TVs. Because coaxial cables support up to 134 HD channels, you can feed the output from additional ZvPro boxes into a splitter to simultaneously send multiple HD channels over a single coaxial cable.
- Analog and Digital Audio with Integrated Closed Caption Support
- Supports digital audio from the HDMI 1.3 inputs as well as analog audio through 3.5mm stereo inputs. EIA/CEA-608 closed captions are supported through composite video inputs.
- Delayed Matched Audio Output
- A 3.5mm delayed matched audio output allows for compensation for the encoding time of the ZvPro 820 and the decoding time of a television. This is particularly useful when using a separate audio system. Audio delay calibration defaults to 400ms, and can be set from 0 to 2000ms, and is controlled from either the front panel menu or by using Maestro, ZeeVee's web-based management software.
- Front LCD Menu Panel
- A color LCD panel with navigation buttons lets you easily view device status, including IP address, data rate graph of encoded audio/video per channel, and configured RF and digital channels. You can also navigate the menu to view other details such as uptime, serial number, temp status, firmware version and firmware upgrade option (if connected to the internet).
- Web-based Management System
- ZeeVee's web-based Maestro management software lets you configure and manage your individual ZvPro unit, or the headend of an entire stack, locally or remotely through a single Ethernet LAN connection. Maestro allows you to see all of your channels at a glance, set channel names, manage firmware updates, RF output, and IP/network information.
- Additional Features
-
- High power 45dBmV RF output
- Fan-cooled
- 1U Rack mountable with optional mounting kit
- Designed and built in the USA
UPC: 812254010403 In the Box ZeeVee ZvPro 820 Dual Channel HDMI Encoder / QAM Modulator Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZeeVee ZvPro 820 Dual Channel HDMI Encoder QAM Modulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZeeVee ZvPro 820 Specs | | | HDMI Video Input | 2 x HDMI 1.3 | | HDMI Compliance | HDMI 1.3 Compliant, backwards compatible to DVI 1.0 specifications | | Output | 2 x 45 dBmV RF coaxial | | Closed Captions | 2 x Composite video input
EIA/CEA-608 captions accepted | | Analog Audio Input | 75 Ohm, 0 to 0.7 V at Line-level output
2 x 3.5 mm stereo | | Audio Output | 1 x 3.5mm delayed matched audio output, 0 to 2000 ms | | Encoding | Internally encoded into Dolby Digital AC-3 or MPEG1 Layer 2 (varies by region) | | | | Encoder Video Profile | MPEG2 HD Profile 2: ISO13818-2 MP@HL | | Traffic Shaping | Variable bit rate | | Video Transport Bit Rate | 49.76 Mbps | | Video Encoding | Data Rates: Variable, 10 to 24 Mbs per channel Average Data Rate: 18 Mbs per channel | | Latency | Programmable 100 to 400 msec | | Color Profile | 4:2:0 | | GOP Size | 24 | | Video, Audio PID | Programmable | | Program Information | Programmable | | | | Encoder Audio Profile | ATSC A/52, Dolby(r) Digital (AC-3) or MPEG-2 Layer 1 (varies by region) | | | | Modulation Type | QAM 256 (ITU-T J83 Annex B) Interleaving modes: (64,2) only OR DVB-C, QAM 256 (ITU-T J83 Annex A) (varies by region) | | Cable Standard | HRC, IRC, STD, or User defined (varies by region) | | Frequency Range | Frequency Agile from 54 to 864 MHz - 2 kHz resolution
- +/- 30 ppm accuracy
- +/- 35 ppm stability
| | Output Power | +45 dBmV typical | | Output Level Adjustment | 25 - 45 dBmV in 1dBmV steps | | Modulation Error Ratio | 38 dB typical | | I/Q Amplitude Imbalance | < 1% typical | | Spectral Tilt | Less than or equal to 1 dB over 6 MHz typical | | | | Network Interface | 10/100 Mbps Ethernet via RJ45 connection
IP address via DHCP or set by user
HTML/Javascript served web interface
Telnet connection for CLI scripting
| | Display & Indicators | Front panel color display | | | | Mounting | Shelf mount flange or rack ears (ordered separately), 1RU high | | Enclosure Type | Metal | | Cooling | Internal cooling fan with front inlet and rear exhaust | | Power | 100-240 VAC 50/60 Hz, 36 W max rated
18 W Typical consumption
IEC 60320-C14 | | Temperature | Operating: 32 to 113°F (0 to 45°C) | | Humidity | 10 to 80%, non-condensing | | Vibration | NSTA 1A in carton | | MTBF | 45,000 hours | | Compliance | FCC Class A, IEC60065, EN61000, CE, RoHS | | Dimensions | 8.00 x 10.00 x 1.75" (20.32 x 25.40 x 4.45 cm) | | Weight | 5.0 lb (2.3 kg) | | | | Package Weight | 5.05 lb | | Box Dimensions (LxWxH) | 15.3 x 12.4 x 3.0" |
