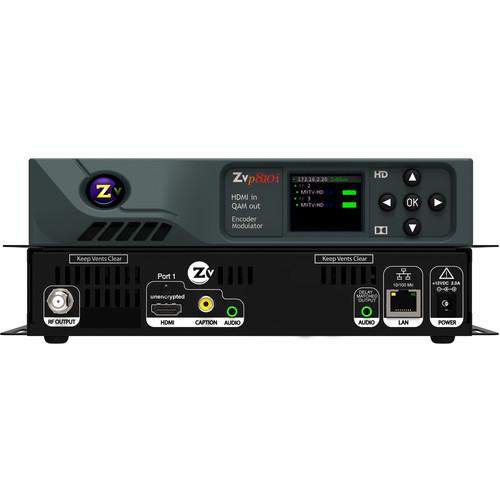

Product description The ZvPro810i HD Digital Encoder/Modulator with 1-Port Unencrypted HDMI Input from ZeeVee distributes one channel of digital SD or HD up to 1080i/p throughout your entire facility over coax cable infrastructure. This QAM, MPEG2, Encoder/Modulator unit allows you to distribute content up to 1080p to an unlimited number of displays, using the TV's built in QAM tuner, eliminating the need for cumbersome, expensive set-top-boxes or media players at each display. The powerful, highly intuitive web interface is used for instrumentation and control while the front panel display is used for on-site status and management at a glance. The encoder is particularly useful in restaurants, pubs, & bars, health & fitness clubs, and in conference rooms. - Simultaneous QAM/IP stream output with no compromise in performance
- Full MPEG2 implementation
- Full motion estimation with a wide search range
- Full system instrumentation and monitoring
- Official international regulatory approval
- Forced air cooling for thermal control
- Powerful, highly intuitive web interface for instrumentation and control
- On-site or remote management
- Front Panel Display for on-site status and management at a glance
- Robust features like set-top-box control and delay-matched audio
- Easy downloadable firmware updates
- Future enhancements provided regularly
- Emergency Alert System (EAS)
UPC: 812254011011 In the Box ZeeVee ZvPro810i HD Digital Encoder/Modulator with 1-Port Unencrypted HDMI Input Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZeeVee ZvPro810i HD Digital Encoder Modulator with 1-Port Unencrypted HDMI Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZeeVee ZvPro810i Specs | | | HDMI | 1 port up to 1080p
HDMI 1.3 compliant. Backwards compatible to DVI 1.0 specifications | | Closed Caption | EIA/CEA-608 captions accepted over composite video input | | Digital | MPEG2 program stream file, up to 200 MB | | | | Digital Audio | Digital as element of HDMI 1.3 port or 3.5 mm stereo female, line level input per channel | | | | Encoder Video Profile | MPEG2 HD: ISO13818-2 MainProfile @ HighLevel | | Traffic Shaping | Variable Bit Rate | | Video Encoding | Variable, 10-24 Mbs per channel | | Average Encoding Data Rate | 18 Mbs per channel | | Encoding Latency | Programmable 200 to 400 ms | | Color Profile | 4:2:0 | | GOP Size | 15 | | Video, Audio PID | Programmable starting value | | Program Information | Programmable program name, EIT | | | | Encoder Audio Profile | ATSC A/52, Dolby Digital (AC-3) | | | | Supported Modulation Types | QAM 256 and 64 (ITU-T J83 Annex B) Interleaving modes: (64, 2) only | | Cable Standard | HRC, IRC or STD | | Frequency Range | Single or one paired, frequency agile QAM RF CATV channels 2-135
2 kHz resolution
+/- 30 ppm accuracy
+/- 35 ppm stability | | Output Power | +45 dBmV typical | | Output Level Adjust | 25-45 dBmV in 1 dBmV steps | | MER | > 38 dB typical | | I/Q Amplitude Imbalance | < 1% typical | | Spectral Tilt | < /= 1 dB over 6 MHz typical | | | | Streaming | RJ-45 10/100Mb Ethernet connection
Up to 2 SPTS, one for each encoded video stream
UDP unicast or multicast, IPV4
User programmable destination address / port | | | | Network Interface | 10/100 Mb Ethernet via RJ45 connection
IP address via DHCP or set by user
HTML/Javascript served web interface for easy configuration
Telnet connection for CLI scripting
Easy firmware updates
All settings saved in NV storage | | | | Power | 100-240 VAC 50/60 Hz, 36 W maximum, 18 W Typical IEC 60320-C14 | | Cooling | Internal cooling fan, front inlet, rear exhaust | | Temperature & Humidity | Operating 32 to +113°F (0 to +45°C)/ 10% to 80%, non-condensing | | Vibration | NSTA 1A in carton | | MTBF | 62,000 hours | | Compliance | FCC Class A, IEC60065, EN61000 (see Manual #70-00047), CE, RoHS | | Enclosure | Metal | | Mounting | Shelf mount flange or rack ears (ordered separately), 1 RU high | | Dimensions (H x W x D) | 8 x 10 x 1.75" (20.32 x 25.4 x 4.44 cm) | | Weight | 3.1 lb (1.4 kg) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 15.2 x 12.4 x 3.0" |
