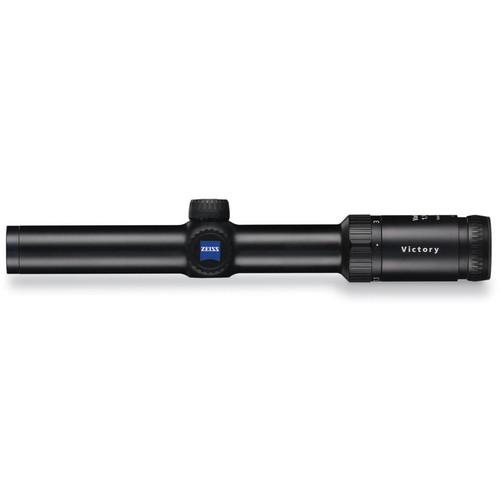

Product description ZEISS' 1.1-4x24 Victory HT Riflescope combines SCHOTT high transmission (HT) glass and ZEISS' T* anti-reflection full multi-coatings to provide unparalleled image brightness, clarity, contrast, and sharpness. The LotuTec protective lens coatings repel water and dust particles from the surface to allow you an unobstructed clear view in a variety of environmental conditions. Aiming is parallax-free from 109 yards, offering 0.34 MOA per click impact point correction, and 108 MOA windage and elevation adjustments with hunting turrets.
The Illuminated Reticle 60 casts minimal subtension and has ultra-fine features: three thin posts, a thin crosshair, and an illuminated red brilliant center dot. The center dot features variable red illumination to accommodate your preferences and lighting conditions.
The lightweight and durable aluminum alloy housing is nitrogen-filled for a waterproof and fogproof performance. It features a 30mm maintube with anodized finish and ASV+ capped, lockable ballistic turrets. The ASV+ turrets are outfitted with a complete set of precision-engraved metal rings to offer complete flexibility in selecting cartridge compatibility. This feature allows you to compensate for bullet drop of most available loads. - Illuminated Reticle 60
-
- 2nd focal plane location
- Three thin posts and a thin crosshair
- Offers clear views with minimum subtension
- Brilliant illuminated center dot with adjustable brightness
- Optical Performance
-
- Zoom magnification: 1.1-4x
- Objective lens diameter: 24mm
- SCHOTT high transmission (HT) glass for up to 95% transmission and greater image brightness
- T* fully multi-coated for brighter and clearer images
- LotuTec hydrophobic lens coatings repel water and dust
- Use and Handling
-
- 0.34 MOA per click impact point correction
- 108 MOA windage and elevation adjustment
- Parallax-free at 109 yd
- Eye relief: 90mm
- Construction Details
-
- Maintube diameter: 30mm
- Anodized aluminum alloy housing
- Housing is scratch- and corrosion-resistant
- ASV+ ballistic elevation turret rings
- Make compensation easy and flexible
- Precision engraving allows for adjusting for most loads
- Nitrogen-filled fogproof
- O-ring sealed waterproof
In the Box ZEISS 1.1-4x24 Victory HT Riflescope (Illuminated Reticle 60, Matte Black) CR-2032 Battery Bikini Style Lens Covers Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 1.1-4x24 Victory HT Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 522405-9960-010 Specs | | | Magnification | 1.1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1.1x: 114' @ 100 yd / 38 m @ 100 m
4x: 31.5' @ 100 yd / 10.5 m @ 100 m | | Exit Pupil Diameter | 1.1x: 14.8 mm
4x: 6 mm | | Eye Relief | 3.5" / 90 mm | | Diopter Correction | -4.0 to +2.0 | | | | Reticle Type | 60 Reticle (Second Focal Plane) | | | | Impact Point Correction | 0.3 MOA per Click | | Windage Adjustment | 108 MOA | | Elevation Adjustment | 108 MOA | | Parallax Correction | Yes, 109.4 yd / 100 m | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -13 to 122°F / -25 to 50°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11.4" / 288.8 mm | | Weight | 15.5 oz / 439.4 g |
