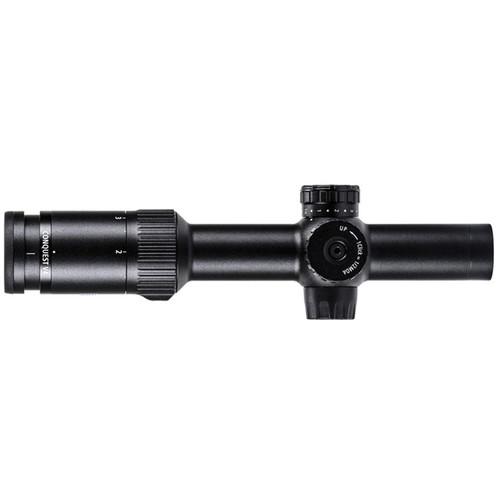

Product description This compact and durable ZEISS 1-4x24 Conquest V4 Riflescope is engineered for hunting and shooting at short ranges and features a wide field of view (114 - 28.5' at 100 yards) and a true 1x magnification for aiming with both eyes open. Its precision optical elements deliver a total light transmission of 90% and offer bright and sharp images, thanks to the high-definition optical glass and the proprietary T* multi-coatings. The external lenses are also treated with the proprietary LotuTec hydrophobic coatings to allow water droplets run off or be wiped off without visible traces. To help with making accurate shots, the scope also provides an illuminated ZQAR Reticle 62. It is located in the 2nd focal plane and has two tapered horizontal posts with two sets of target brackets. Just above the illuminated target dot, you will see a broken illuminated half-circle. For ballistic compensation, it also offers an illuminated vertical bar with subtensions below the center, which match the ballistic properties of 223 Remington and 308 Winchester.
Measuring only 10.1" in length, the aluminum housing is crafted with strength, durability, and precision in mind. It has a 30mm maintube and offers waterproof, nitrogen-filled fogproof, and submersible performance. Among other highlights are knurled turrets, knobs, and rings. This version of the scope also features an external one-turn locking turret with ZEISS' ZQAR Ballistic Stop to ensure an absolute and positive return to zero. The magnification ring offers a low-profile lever for instant zoom adjustments. - Optical Performance
-
- 4x magnification range
- True 1x magnification for aiming with both eyes
- High-definition glass
- T* optical coatings
- Total transmission of light up to 90%
- LotuTec water-repellent coating allows water droplets to run off the lenses and be removed without a trace
- Wide field of view: 114 - 28.5' at 100 yards
- Parallax-free at 100 yards
- Use and Handling
-
- 1/2 MOA impact point correction
- 100 MOA total windage and elevation range
- 11.9- 6.0mm exit pupil
- 3.5" eye relief
- Construction
-
- 30mm diameter maintube
- Aluminum construction
- ZQAR external locking one-turn elevation turret with ballistic stop provides repeatable adjustments
- Powered by one CR-2032 battery
- Nitrogen-filled, fogproof
- Waterproof to 400 mbar

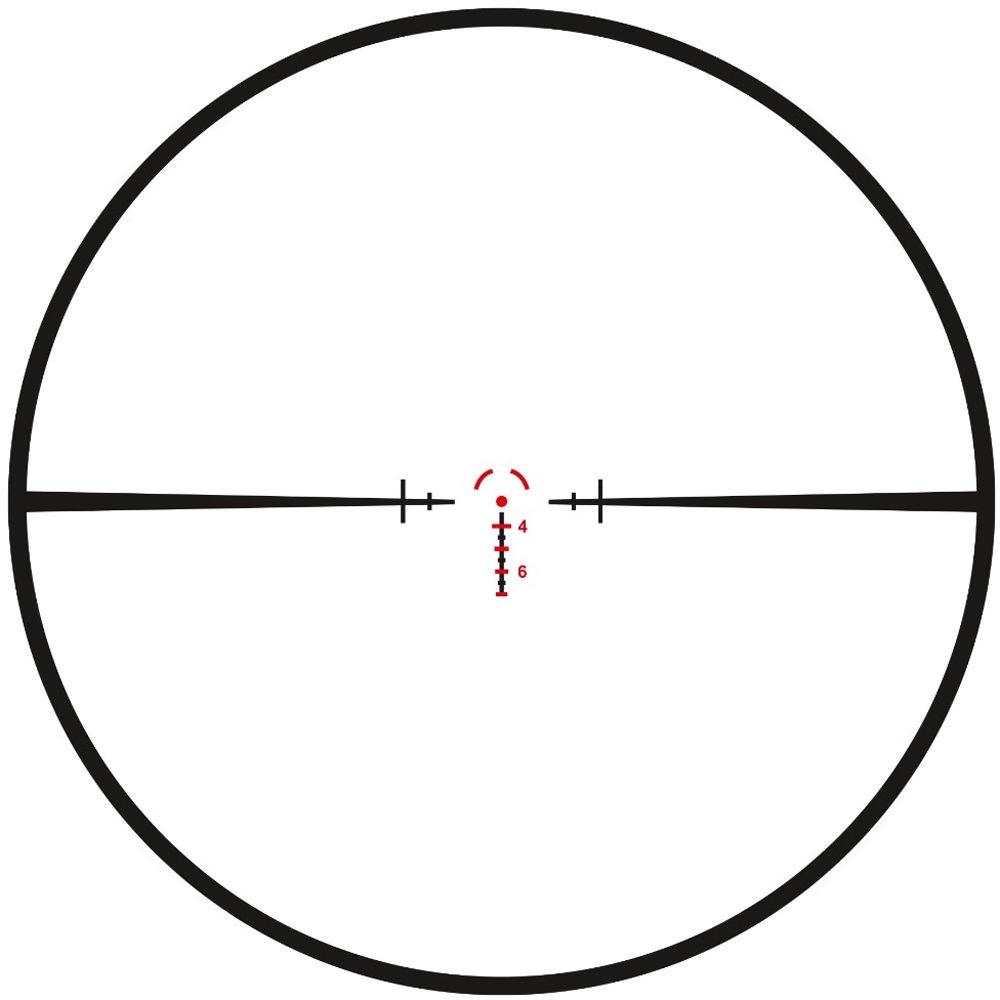

- ZQAR Reticle 62 Reticle
-
- 2nd focal plane
- Two tapered horizontal posts with two sets of target brackets
- Broken illuminated half-circle on top
- Vertical bar with subtensions extends from target center dot down
- Compatible with 223 Remington and 30 Winchester ballistic properties
UPC: 740035998933 In the Box ZEISS 1-4x24 Conquest V4 Riflescope (ZQAR Reticle 62 Illuminated Reticle, Matte Black) - CR-2032 Battery
- Limited 5-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 1-4x24 Conquest V4 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 522905-9962-060 Specs | | | Magnification | 1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 114' @ 100 yd / 38 m @ 100 m
4x: 28.5' @ 100 yd / 9.5 m @ 100 m | | Exit Pupil Diameter | 1x: 11.9 mm
4x: 6 mm | | Eye Relief | 3.5" / 89 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | ZQAR 62 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 100 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -4 to 131°F / -20 to 55°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.1" / 25.7 cm | | Weight | 16.6 oz / 470.6 g | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 16.6 x 4.7 x 4.4" |
