User Manual for ZEISS 1-6x24 Conquest V6 Riflescope Click to enlarge the picture
Contents of the user manual for the ZEISS 1-6x24 Conquest V6 Riflescope
- Product category: Riflescopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Riflescopes
 |
User manual for the ZEISS 1-6x24 Conquest V6 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|

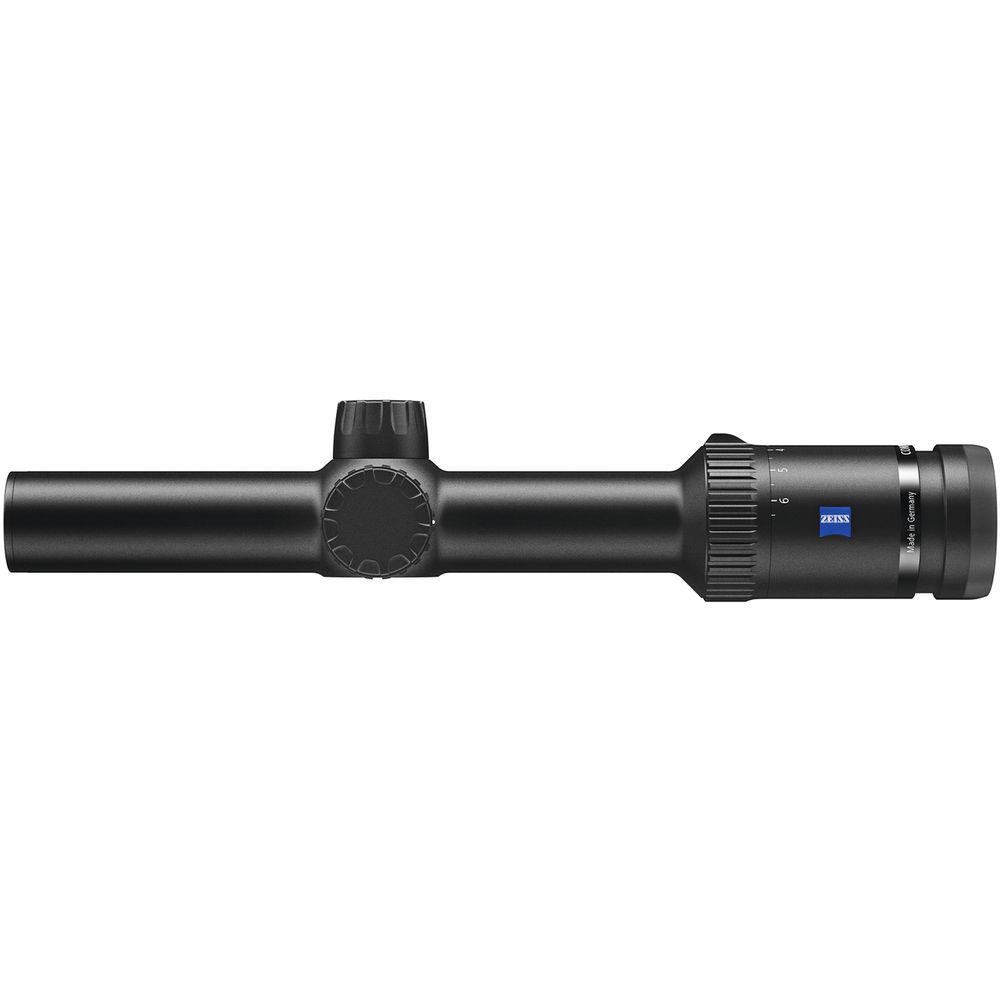

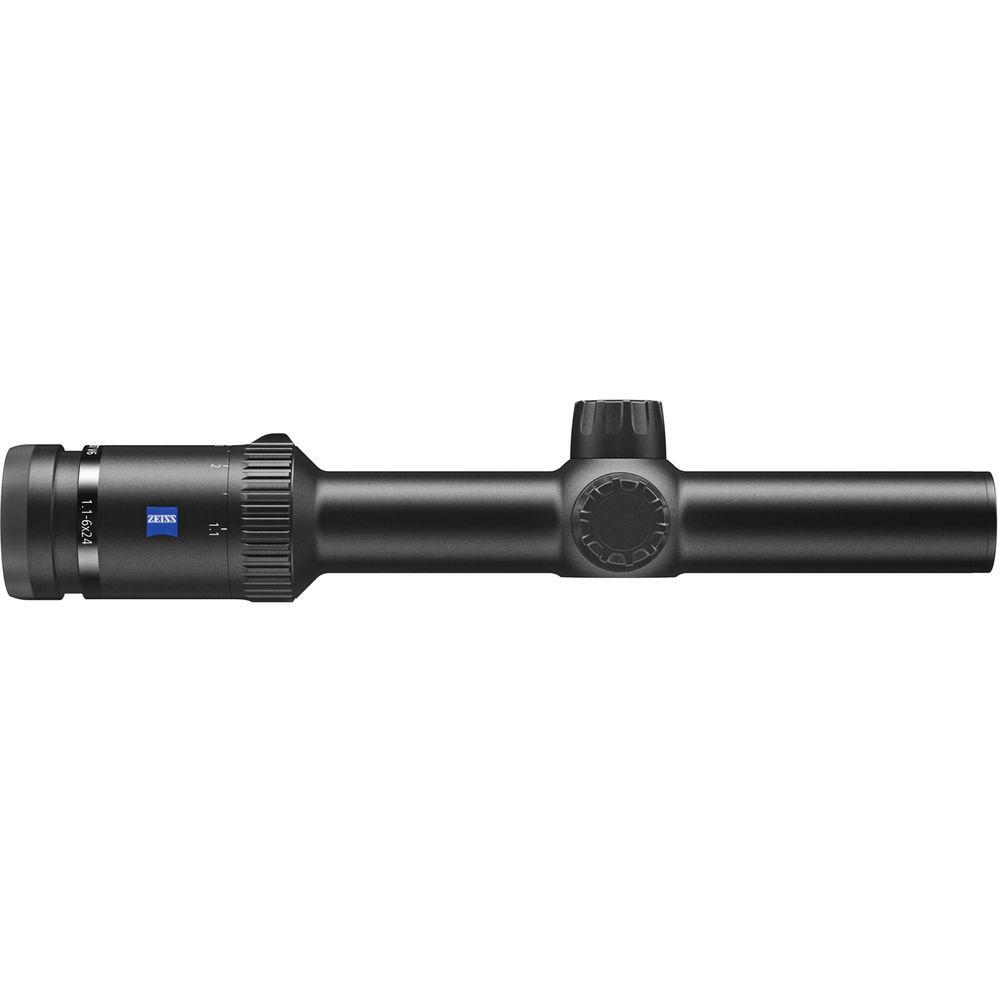

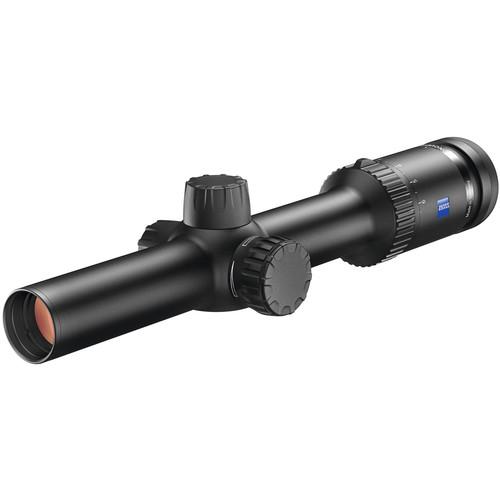

Product description Harness a lifetime of legendary optical craftsmanship, engineering, and mechanical precision with the ZEISS 1-6x24 Conquest V6 Riflescope. This riflescope is centered around an expertly-designed 6x SuperZoom optical system that utilizes superior components such as high-transmission ZEISS FL fluoride lenses for delivering high-contrast, high-detail, and true-color vivid images. To enhance optical performance and image brightness even further, bringing total throughput to 92%, the lenses are fully multi-coated with their proprietary ZEISS T* anti-reflection coatings. To maintain high standards of performance, even in adverse weather conditions, the exterior lens surfaces are enhanced with LotuTec hydrophobic coatings, which let droplets slide off without streaks and allow for dust and dirt to be wiped away easily.
Another highlight of this scope is the ZMOA-4 with the German #4 style outline and milling tactical MOA crosshair. To remove ambiguity when aiming, it also has a parallax-free zone at 100 yards.
Measuring only 11.2" (28.4 cm) in length, the high-quality aluminum housing is engineered with strength, durability, precision in mind. It features a 30mm maintube and offers waterproof, fogproof, and submersible performance. Among other highlights are BT finger-adjustable graduated turrets and knurled knobs and rings. The magnification ring also features a low-profile lever for instant zoom adjustments. - Optical Performance
-
- 6x SuperZoom provides powerful magnification range
- Field of view: 102.6 - 16.8' at 100 yards
- ZEISS T* full multi-layer coatings increase total light transmission to 92%
- ZEISS FL (Fluoride) glass exhibits low-absorption and delivers sharp, high-contrast images while reducing glare
- LotuTec water-repellent coating allows water droplets to run-off the lenses and be removed without a trace
- Parallax-free at 100 yards
- ZMOA-4 Reticle
-
- 2nd focal plane location
- German #4 style posts are combined with milling (MOA-based) crosshair
- Offers clear views with minimum coverage
- Brilliant red-illuminated target dot with adjustable brightness
- Use and Handling
-
- 1/2 MOA impact point correction
- 103 MOA total windage and elevation range
- 9.6 - 3.7mm exit pupil
- 3.5" eye relief
- Construction
-
- 30mm diameter maintube
- Robust construction with impeccable mechanical precision
- BT tactical-style graduated finger-adjustable turrets
- Nitrogen-filled, fogproof
- Waterproof to 400 mbar
UPC: 740035998414 In the Box ZEISS 1-6x24 Conquest V6 Riflescope (ZMOA-4 Illuminated Reticle, Matte Black) - 2 x Elastic Lens Protectors
- CR-2032 Battery
- Lens Cleaning Cloth
- Limited 5-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 1-6x24 Conquest V6 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 522215-9995-070 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 102.6' @ 100 yd / 34.2 m @ 100 m
6x: 16.8' @ 100 yd / 5.6 m @ 100 m | | Exit Pupil Diameter | 1x: 9.6 mm
6x: 3.7 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | ZMOA-4 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 103 MOA | | Elevation Adjustment | 103 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -12 to 122°F / -24 to 50°C | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11.2" / 28.4 cm | | Weight | 17.8 oz / 504.6 g | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 16.0 x 4.7 x 4.4" |
