User Manual for ZEISS 1.8-14x50 Victory V8 Riflescope Click to enlarge the picture
Contents of the user manual for the ZEISS 1.8-14x50 Victory V8 Riflescope
- Product category: Riflescopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Riflescopes
|
User manual for the ZEISS 1.8-14x50 Victory V8 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|

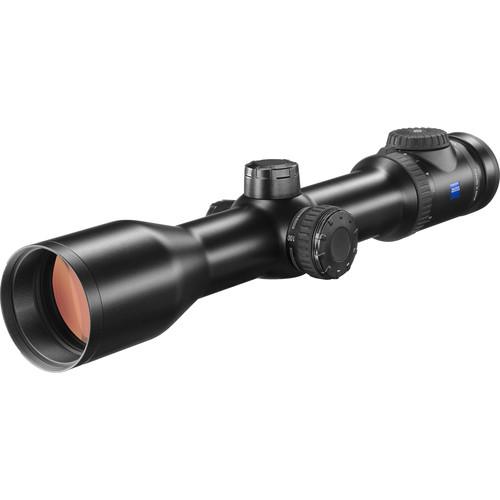

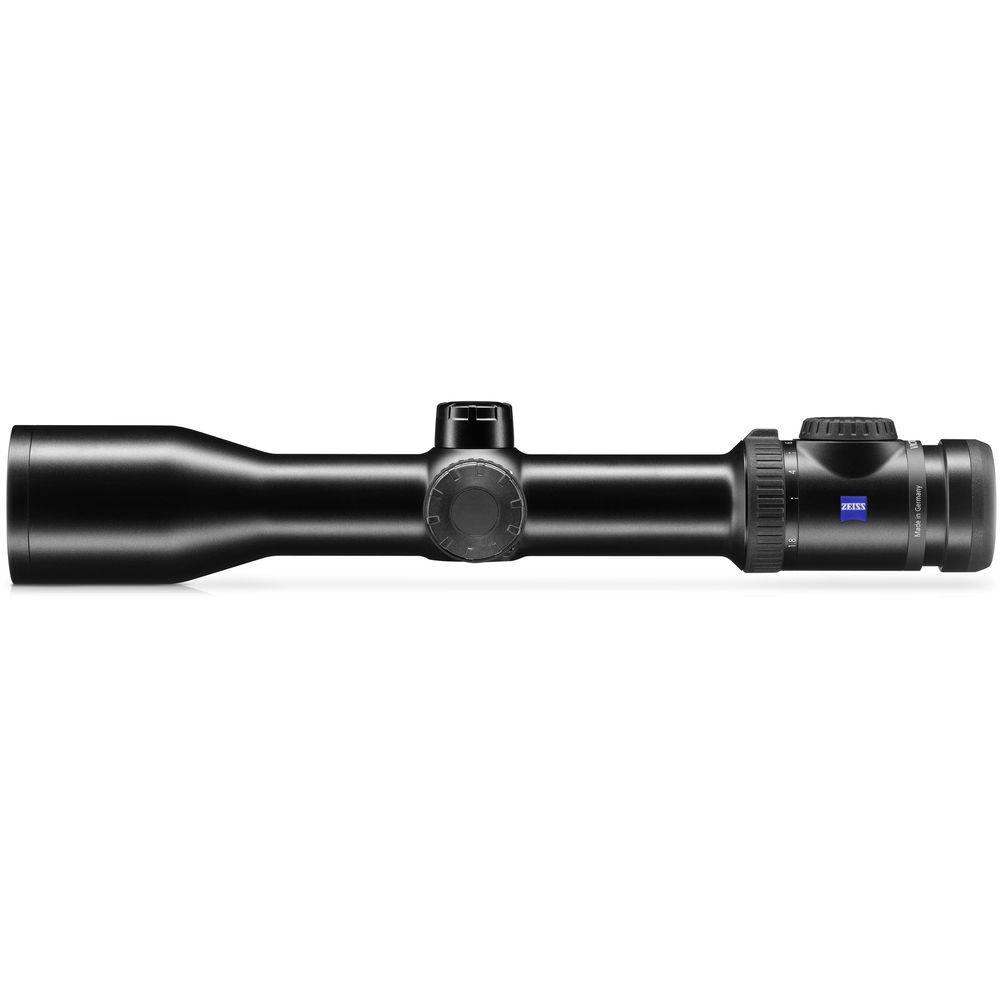

Product description Drawing on their illustrious tradition of impeccable optical craftsmanship, engineering excellence, and precision manufacturing, ZEISS delivered the 1.8-14x50 Victory V8 Riflescope to empower you with brilliant optical performance, uncompromising precision, and lasting durability. At the core of this riflescope is an expertly-designed optical system that features High Transmission (HT) Schott glass Fluoride lenses (FL) to provide sharp, high contrast images which also deliver superior detail, low absorption of light, and minimal chromatic aberrations. Enhancing optical performance and bringing total throughput to 92%, the optical elements are fully multi-coated with high quality ZEISS T* coatings. To protect the lenses from moisture and to ensure clear views, the optical surfaces are enhanced with LotuTec hydrophobic coatings, which allow droplets to slide down without sticking to surfaces and dirt to be wiped off without a trace. With the wide 50mm objective, this riflescope delivers bright, crisp, and clearly visible images, and can become a reliable partner for making that perfect shot-even in the most challenging lighting conditions.

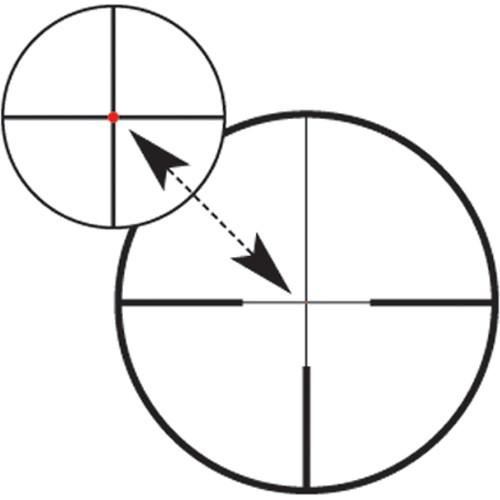

Another central highlight of this scope is the Reticle 60. Inspired by German #4 outlines but possessing ultra-fine features, it casts minimal subtension and offers three thin posts, a fine crosshair, and an illuminated ultra-fine yet well-defined brilliantly red center dot. The dot's glow can be adjusted to accommodate your preferences and lighting conditions. Thanks to the side focus parallax compensator, the reticle could be used parallax-free from 55 yd to infinity.
To ensure lasting durability for years of service, the housing is made from a high quality aluminum alloy. It features a 36mm maintube and offers a water and fogproof performance. Among other highlights are finger-adjustable turrets, knurled and easy to operate in gloves knobs and rings, a rubberized illumination wheel, and a fast precise ASV/BDS LongRange bullet drop compensator. The magnification ring also features a low-profile lever, just in case you need to bump up that zoom factor instantly. - Illuminated Reticle 60
-
- 2nd focal plane location
- Three thin posts and a thin crosshair
- Offers clear views with minimum subtension
- Brilliant illuminated center dot with adjustable brightness
- Optical Performance
-
- Fluoride(FL) lenses deliver sharper images with higher contrast:
- Low-absorption optical properties
- Significantly reduce chromatic aberrations
- Schott High Transmission (HT) glass:
- Yields very high optical transmission
- Produces superior image quality and resolution
- ZEISS T* full multi-layer coatings:
- Enhance total transmission to 92%
- Low reflex susceptibility
- LotuTec water-repellent coating:
- Allows water droplets to run-off the lenses
- Allows dirt to be removed without a trace
- Wide 50mm objective delivers bright images in the most challenging light conditions
- Use and Handling
-
- 1/3 MOA impact point correction
- 122 MOA total elevation range
- 78 MOA total windage range
- Construction Details
-
- 36mm diameter maintube
- Robust construction with enhanced operational precision
- Designed for comfort and ergonomics:
- Slender non-obtrusive shape
- Rubberized non-slip touch buttons
- Capped, finger adjustable turrets
- Knurled and rings and adjusters
- Easy to operate when wearing gloves
- ASV/BDC LongRange bullet drop compensator
- Waterproof to 400 mbar
- Nitrogen-filled, fogproof
UPC: 740035997509 In the Box ZEISS 1.8-14x50 Victory V8 Riflescope (Illuminated Reticle 60, Matte Black) - 2 x Talley Signature Rings
- CR-2032 Battery
- Limited 5-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 1.8-14x50 Victory V8 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 522119-9960-000 Specs | Magnification | 1.8 to 14x | Objective Lens Diameter | 50 mm | Field of View | 1.8x: 63' @ 100 yd / 21 m @ 100 m 14x: 8.5' @ 100 yd / 2.8 m @ 100 m | Exit Pupil Diameter | 1.8x: 10.3 mm 14x: 3.7 mm | Eye Relief | 3.8" / 95.3 mm | Diopter Correction | -3.5 to +2.0 | | Reticle Type | 60 Reticle (Second Focal Plane) | | Impact Point Correction | 1/3 MOA per Click | Windage Adjustment | 78 MOA | Elevation Adjustment | 122 MOA | Parallax Correction | Yes, 55 yd / 50.4 m to Infinity | | Water Resistance | Waterproof to 13.1' / 4 m | Fogproof | Yes, Nitrogen Filled | Operating Temperature | -13 to 122°F / -25 to 50°C | | Maintube Diameter | 34 mm | Battery | 1 x CR2032 | Dimensions | Length: 13.5" / 343 mm Objective Diameter: 2.2" / 56 mm Eyepiece Diameter: 1.8" / 46 mm | Weight | 25 oz / 708.8 g |
