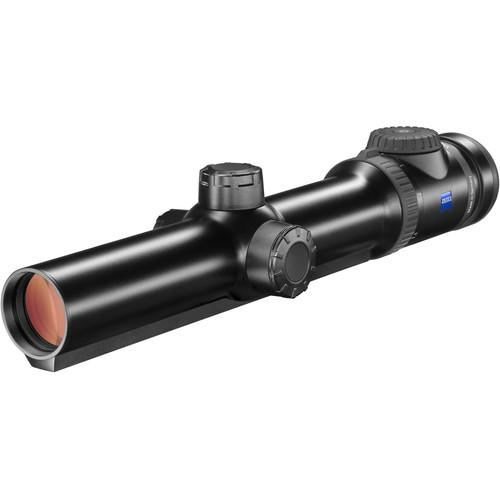

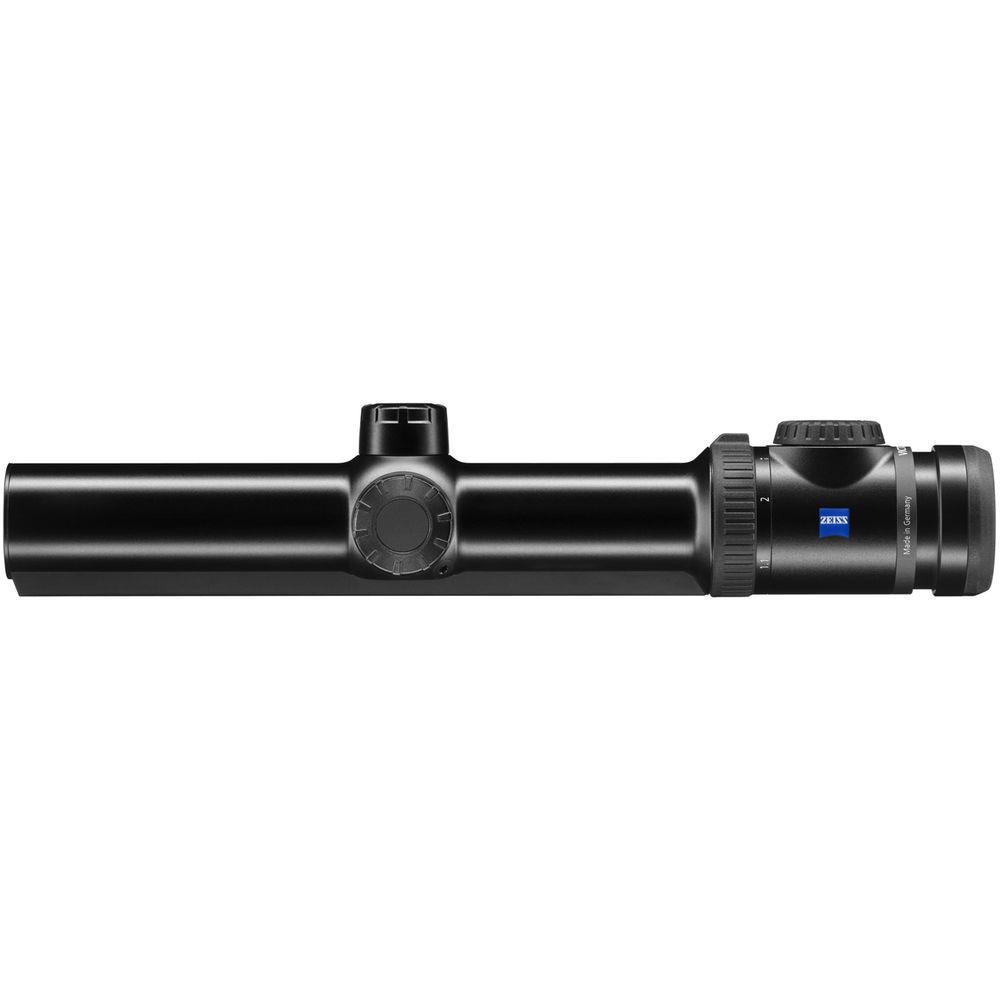

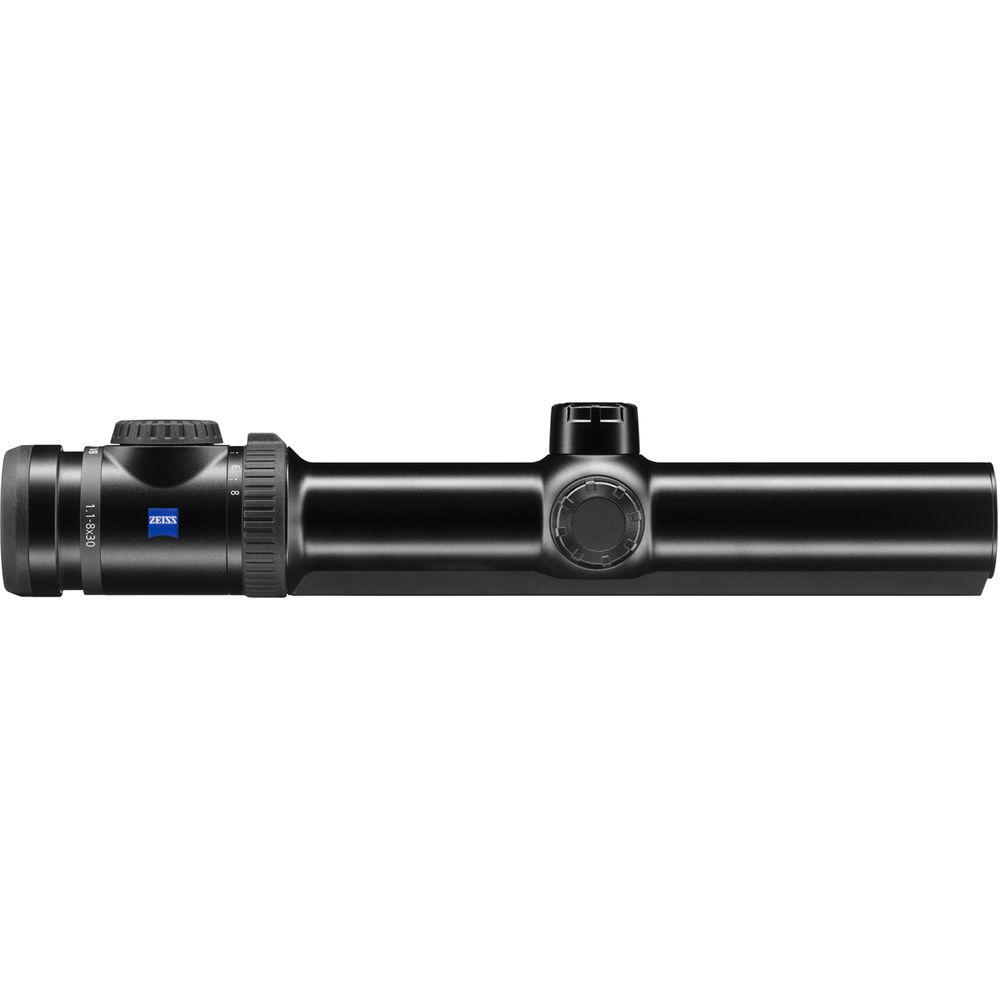

User Manual for ZEISS 1-8x30 Victory V8 T Riflescope Click to enlarge the picture
Contents of the user manual for the ZEISS 1-8x30 Victory V8 T Riflescope
- Product category: Riflescopes ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Riflescopes
 |
User manual for the ZEISS 1-8x30 Victory V8 T Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description Drawing on its illustrious tradition of impeccable optical craftsmanship, engineering excellence, and precision manufacturing, ZEISS delivered the 1-8x30 Victory V8 Riflescope to empower you with brilliant optical performance, uncompromising precision, and lasting durability. At the core of this riflescope is an expertly designed optical system that features High Transmission (HT) Schott glass Fluoride lenses (FL) to provide high contrast and high sharpness images, which also deliver superior detail and low absorption of light and low chromatic aberrations. To enhance optical performance and to bring total throughput to 92%, optical elements are fully multi-coated with high quality ZEISS T* coatings. To protect lenses from moisture and to ensure clear views, optical surfaces are enhanced with LotuTec hydrophobic coatings, which allow droplets to slide down without sticking to surfaces and dirt be wiped off without a trace. With the state of the art optics, this riflescope can become a reliable partner for making that perfect shot, even in the most challenging lighting conditions and to deliver bright, crisp, and clearly visible images.
Another central highlight of this scope is the Reticle 60. Inspired by German #4 outlines but possessing ultra-fine features, it casts minimal subtension and offers three thin posts, a fine crosshair, and an illuminated ultra-fine yet well-defined brilliantly red center dot. The dot's glow can be adjusted to accommodate your preferences and lighting conditions. Thanks to side focus parallax compensator, the reticle could be used parallax-free from 55 yd to infinity.
To ensure lasting durability for years of service, the housing is almost over-engineered. It is made from high quality aluminum alloy and features a 36mm maintube and offers waterproof and fogproof performance. The scope is also enhanced with a built-in rail for optional Blaser Saddle Mounts or compatible devices, like ZEISS Victory Rail Mounts. The rail provides for a solid mounting option that eliminates the need for re-zeroing your riflescope every time you take off and put it on. Among other highlights are finger-adjustable turrets, knurled and easy to operate in gloves knobs and rings, rubberized illumination wheel, and a fast precise AVS/BDS LongRange bullet drop compensator. The magnification ring also features a low-profile lever, just in case you need to bump up that zoom factor instantly. - Optical Performance
-
- FL-Fluoride lenses deliver sharper images with higher contrast:
- Low-absorption optical properties
- Significantly reduce chromatic aberrations
- Schott HT glass:
- Yields very high optical transmission
- Produces superior image quality and resolution
- ZEISS T* full multi-layer coatings:
- Enhance total transmission to 92%
- Low reflex susceptibility
- LotuTec water-repellent coating:
- Allows water droplets to run-off the lenses
- Allows dirt to be removed without a trace
- Reticle 60
-
- 2nd focal plane location
- Three thin posts and a thin crosshair
- Offers clear views with minimum subtension
- Brilliant illuminated center dot with adjustable brightness
- Use and Handling
-
- 1/3 MOA impact point correction
- 196 MOA total elevation range
- 126 MOA total windage range
- Construction Details
-
- 36mm diameter maintube
- Robust construction with enhanced operational precision
- Built-in rail for Blaser Saddle Mounts allows a solid reattachment without re-zeroing
- Can be attached to Weaver rails using an optional ZEISS Railmount 490618
- Designed for comfort and ergonomics:
- Slender non-obtrusive shape
- Rubberized non-slip touch buttons
- Capped, finger adjustable turrets
- Knurled and rings and adjusters
- Easy to operate when wearing gloves
- ASV/BDC LongRange bullet drop compensator
- Waterproof to 400 mbar
- Nitrogen-filled, fogproof
UPC: 740035997769 In the Box ZEISS 1-8x30 Victory V8 T Riflescope (Illuminated Reticle 60, Rail, Mattel Black) - 2 x Talley Signature Rings
- CR-2032 Battery
- Limited 5-Year Warranty
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 1-8x30 Victory V8 T Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 522108-9960-000 Specs | | | Magnification | 1 to 8x | | Objective Lens Diameter | 30 mm | | Field of View | 1x: 110' @ 100 yd / 36.7 m @ 100 m
8x: 15' @ 100 yd / 5 m @ 100 m | | Exit Pupil Diameter | 1x: 9.9 mm
8x: 3.9 mm | | Eye Relief | 3.8" / 95.3 mm | | Diopter Correction | -3.5 to +2.0 | | | | Reticle Type | 60 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/3 MOA per Click | | Windage Adjustment | 126 MOA | | Elevation Adjustment | 196 MOA | | Parallax Correction | Yes, 109.4 yd / 100 m to Infinity | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | -13 to 122°F / -25 to 50°C | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12" / 30.5 cm | | Weight | 21 oz / 595.4 g |
