ZEISS 10x25 Terra ED Compact Binocular

Search your instruction manual in PDF to download

User Manual for ZEISS 10x25 Terra ED Compact Binocular

Click to enlarge the picture
ZEISS 10x25 Terra ED Compact Binocular Contents of the user manual for the ZEISS 10x25 Terra ED Compact Binocular
  • Product category: Binoculars ZEISS
  • Brand: ZEISS
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ZEISS Binoculars

ZEISS 10x25 Terra ED Compact Binocular ZEISS 10x25 Terra ED Compact Binocular
User manual for the ZEISS 10x25 Terra ED Compact Binocular contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ZEISS product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!



Product description

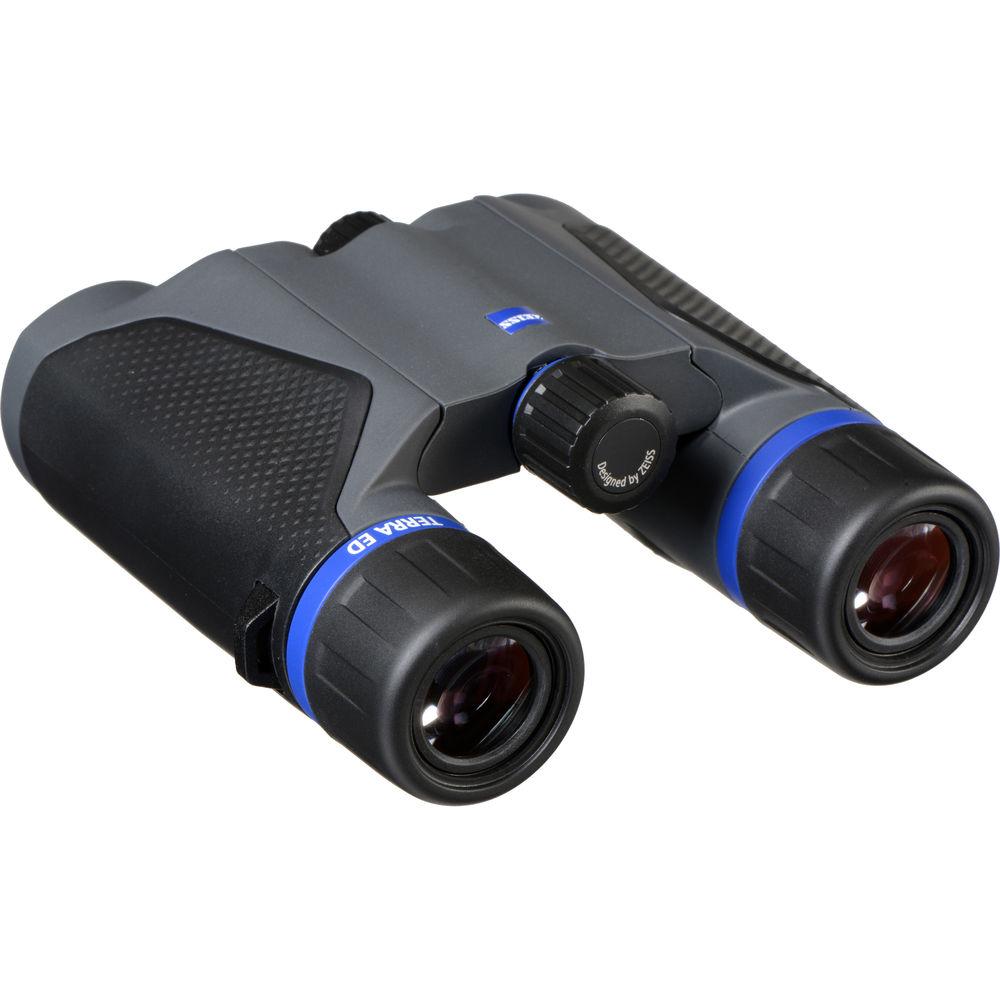

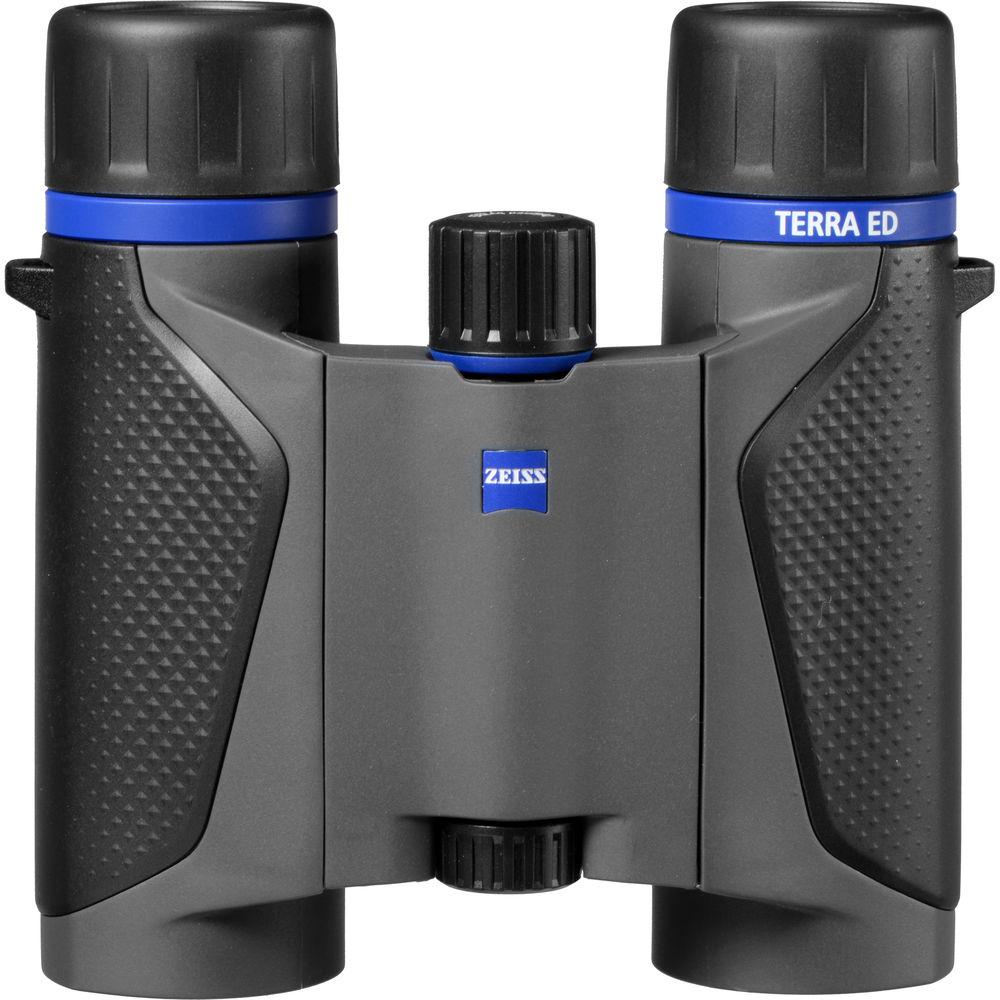

The B&H Binocular Buying Guide Read More dcfrasbqtvxdx ZEISS's gray-black 10x25 Terra ED Compact Binocular gives you a competent and compact optic that fits easily in the palm of your hand. A combination of technologies work together to produce bright and clear images with increased contrast and true-color rendition. They include: Schmidt-Pechan roof prisms, SCHOTT extra-low dispersion (ED) glass, and anti-reflection fully multi-coated optics. The Terra ED is offered here in a 10x power, which walks the delicate line between an increased viewing distance over lower magnification optics while maintaining a useful field of view.The lightweight housing is nitrogen filled and O-ring sealed, enabling it to withstand use in wet and snowy weather, and the rubberized armor offers protection from impacts while providing a slip-resistant grip. The Terra's double-hinge closed-bridge design allows it to fold compactly for an easy fit in most pockets or packs, while the knurled center focus wheel enables fast focusing. Twist-up eyecups make it comfortable to use with or without eyewear.
    Optical Performance
    • 10x magnification
    • 25mm objective lenses
    • Schmidt-Pechan roof prisms
    • Extra-low dispersion (ED) glass: Corrects chromatic aberration for true-color rendition and improved contrast
    • Proprietary ZEISS hydrophobic and anti-reflection fully multi-coated optics
    • Apparent angle of view: 54°
    • 291' field of view at 1000 yd
    Use and Handling
    • Closed-bridge configuration
    • Knurled center focus wheel
    • Twist-up rubber eyecups
    • +3/-3 right eye dioptric correction, center adjustment wheel
    • Interpupillary adjustment range: 35-72mm
    • 16mm long eye relief
    • 2.5mm exit pupil
    Construction Details
    • Protective rubber-armored grips
    • Nitrogen filled for water and fogproof performance
    • Test to 100mbar of pressure against ingress of water
    • Functional temperature range: 4 to 145°F (-15 to 62°C)
    • Weight: 10.9 oz
UPC: 740035997196 In the Box ZEISS 10x25 Terra ED Compact Binocular (Gray-Black)
  • Case
  • Neck Strap
  • Cleaning Cloth
  • Limited Lifetime Warranty
  • Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents




    Upload User Manual

    Have you got an user manual for the ZEISS 10x25 Terra ED Compact Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ZEISS 522503-9907-000 Specs

    Prism Type Roof
    Magnification 10 x
    Objective Lens Diameter 25 mm
    Angle of View 54° (Apparent)
    Field of View 291' @ 1000 yd / 96.612 m @ 1000 m
    Minimum Focus Distance 39.9' / 12.2 m
    Exit Pupil Diameter 2.5 mm
    Eye Relief 16 mm
    Interpupillary Adjustment 35 to 72 mm / 1.4 to 2.8"
    Dioptric Correction +3 / -3
    Focus Type Center
    Tripod Mount None
    Dimensions 4.5 x 4.4" / 11.4 x 11.2 cm
    Weight 10.9 oz / 309.0 g
    Package Weight 1.545 lb
    Box Dimensions (LxWxH) 7.3 x 5.75 x 3.35"
