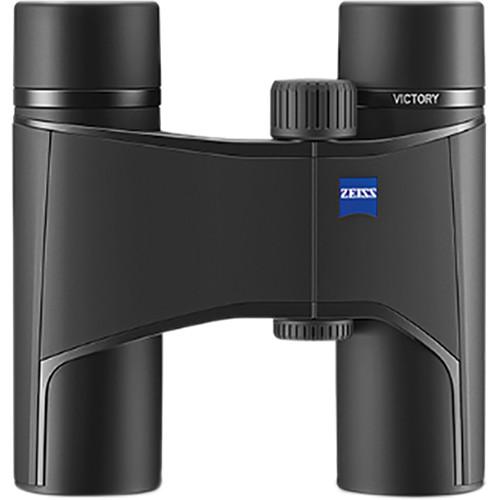

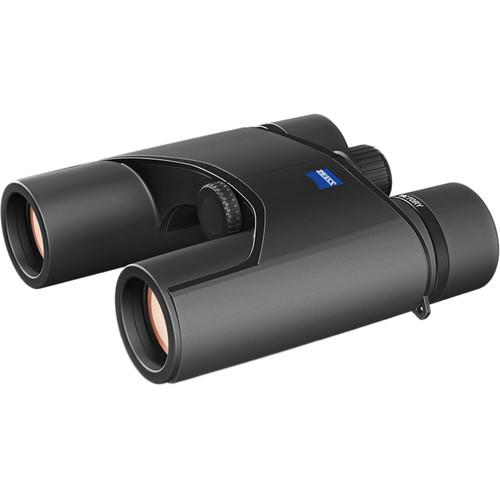

User Manual for ZEISS 10x25 Victory Pocket Binocular Click to enlarge the picture
Contents of the user manual for the ZEISS 10x25 Victory Pocket Binocular
- Product category: Binoculars ZEISS
- Brand: ZEISS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ZEISS Binoculars
 |
User manual for the ZEISS 10x25 Victory Pocket Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ZEISS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ZEISS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ZEISS product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Building on the success of the 20mm version, the larger-objective ZEISS 10x25 Victory Pocket Binocular features a wide field of view and long eye relief with a high magnification that brings subjects in close to provide users with an immersive observational experience.This model maintains the optical technology of earlier iterations to ensure the overall visual performance users have come to expect from ZEISS. The optical path features phase-corrected Schmidt-Pechan roof prisms with dielectric mirror coatings. These prisms maximize acuity and light throughput while eliminating aberrations and distortion. The lenses are fully multi-coated with ZEISS' iconic T* anti-reflective multi-coatings and their LotuTec protective coating. T* multi-coatings increase light transmission while eliminating lens flare and glare, while improving color rendition, clarity, and contrast. The LotuTec coating helps maintain the integrity of each external lens surface by repelling liquids and debris for a clear view in any conditions, weather, or situation.The Victory's housing is made of a lightweight and strong magnesium alloy and is wrapped in a protective rubber armor that provides a slip-resistant grip. Its optical tubes are nitrogen filled and O-ring sealed to deliver waterproof performance, while resisting internal fogging when moving through extreme temperature or environmental conditions. The distinctive offset hinge design provides a visibly unique and compact form factor that is easy to adjust and use one-handed. - Optical Performance
-
- 10x magnification
- 25mm objective lenses
- Compact Schmidt-Pechan roof prism light path
- Phase-corrected dielectric mirror prism coatings limit internal diffraction to enhance clarity, light transmission, and contrast
- Extra-low dispersion fluoride glass limits chromatic aberrations to produce clearer and sharper views with little or no color fringing
- T* fully multi-coated optics improve light transmission, color rendition, clarity, and contrast while reducing lens flare and glare

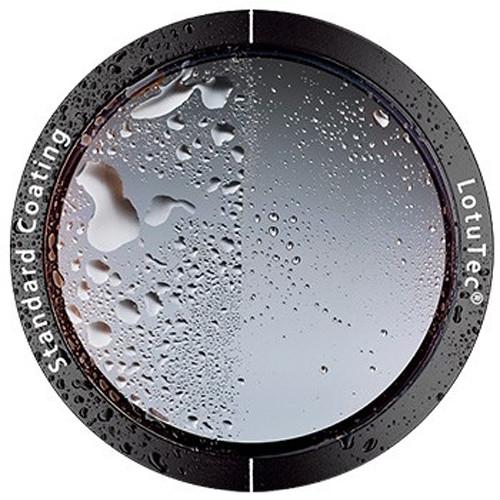

- LotuTec coating: Sheds water, dirt, grease, and grime; lenses can be easily wiped clean without smearing
- Wide 60° apparent angle of view
- 316' field of view at 1000 yards
- Use and Handling
-
- Closed-bridge/single-hinge configuration
- Fast and accurate center focusing wheel
- ±3 right-eye dioptric correction
- Broad 34-74mm interpupillary adjustment range to accommodate a wide variety of users

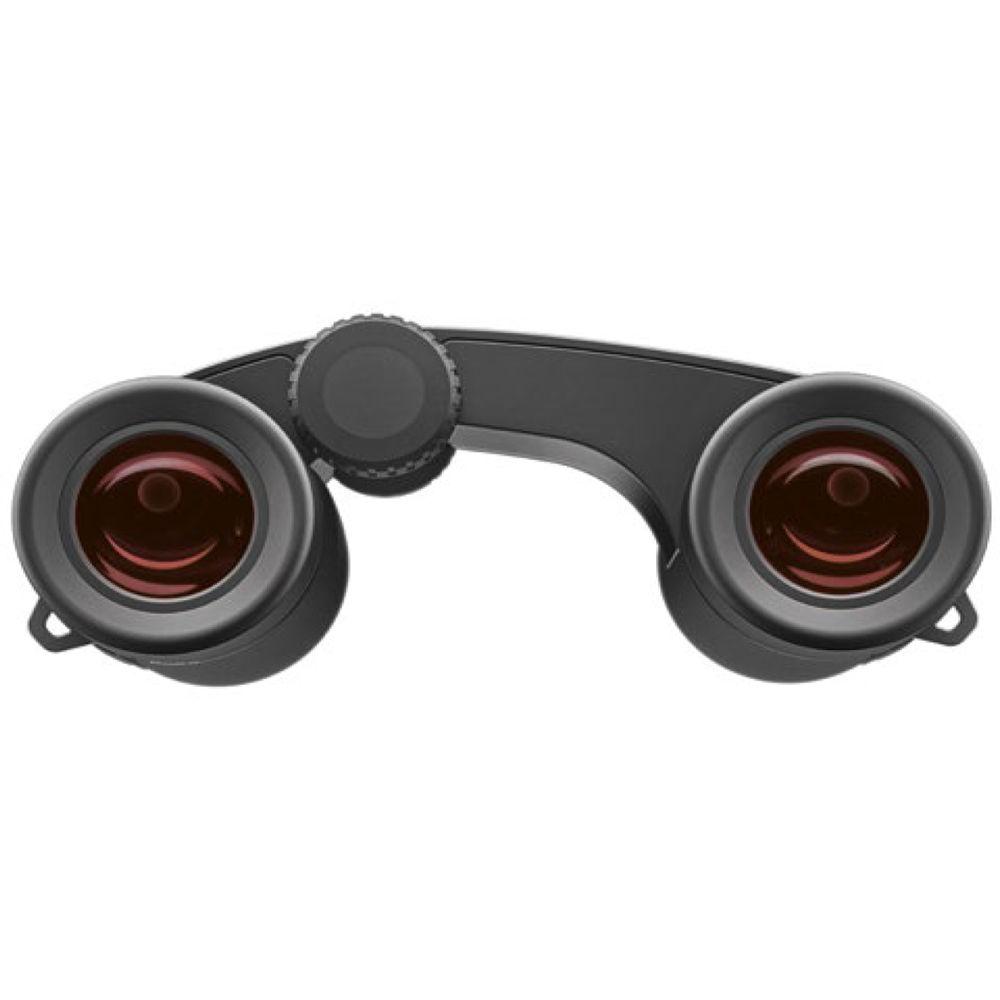

- Twist-up rubber eyecups for comfortable use with or without eyewear
- Long 16.5mm eye relief
- 2.5mm exit pupil
- Construction Details
-

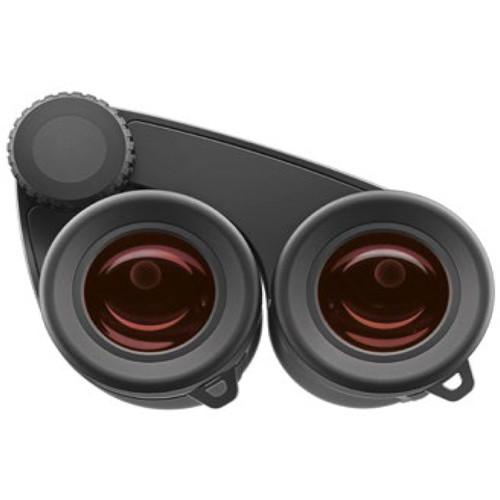

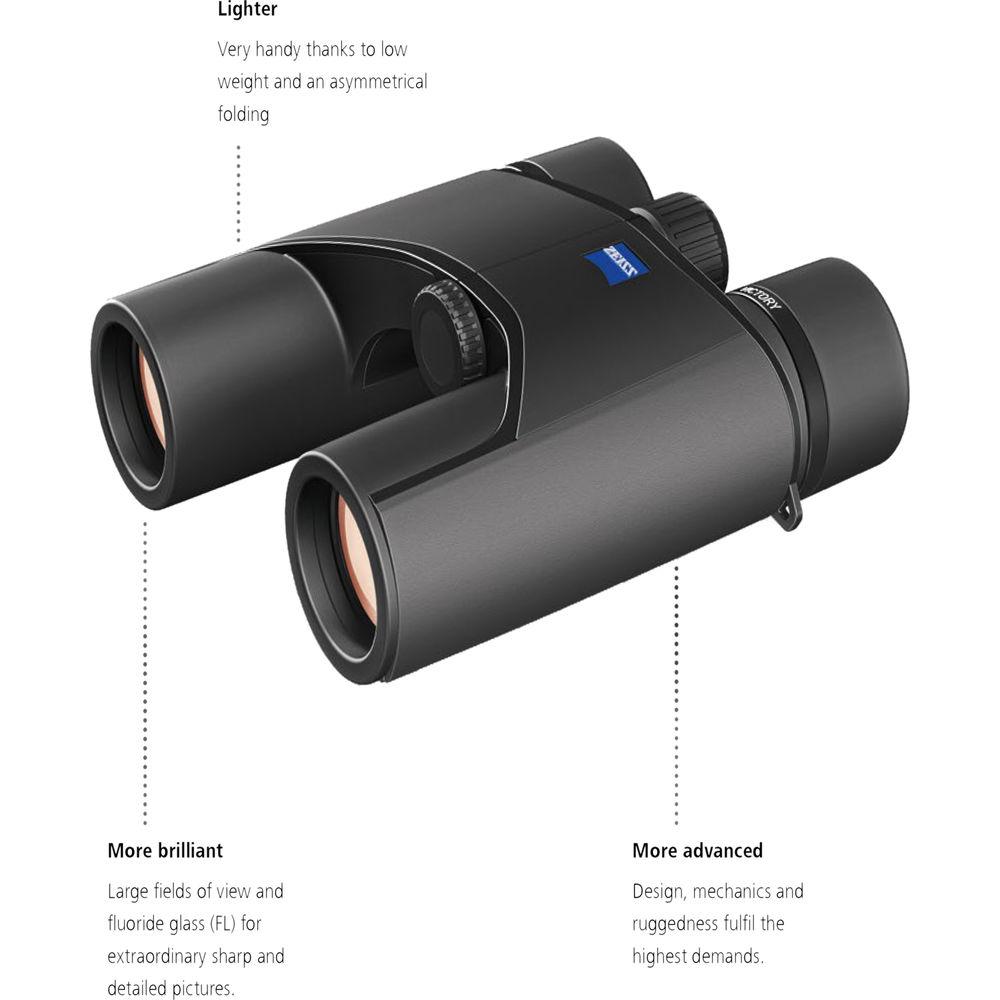

- Unique asymmetrical offset hinge allows the binocular to fold flatter and more compact than traditional center-hinge configurations
- Prism design is slimmer than traditional roof prisms, providing similar performance with thinner optical tubes
- Impact-resistant and lightweight magnesium-alloy chassis
- Nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature and environmental conditions
- Protective rubber armoring provides a secure no-slip grip
- Wide -13 to 145°F (-25 to 63°C) operating temperature
- Compact: 4.4x4.3"
- Lightweight: 10 ounces
UPC: 740035998131 In the Box ZEISS 10x25 Victory Pocket Binocular Carrying Strap Leather Case Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 dubzzdufyftasfax Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the ZEISS 10x25 Victory Pocket Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersZEISS 522039-9901-000 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 25 mm | | Angle of View | 6.0° (actual) | | Field of View | 315.0' @ 1000 yd / 105.0 m @ 1000 m | | Minimum Focus Distance | 6.2' / 1.9 m | | Exit Pupil Diameter | 2.5 mm | | Eye Relief | 16.5 mm | | Interpupillary Adjustment | 34 to 74 mm / 1.3 to 2.9" | | Dioptric Correction | ±3 | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 4.4 x 4.3" / 11.2 x 11.0 cm | | Weight | 10.23 oz / 290.0 g | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 11.4 x 7.2 x 3.4" |
